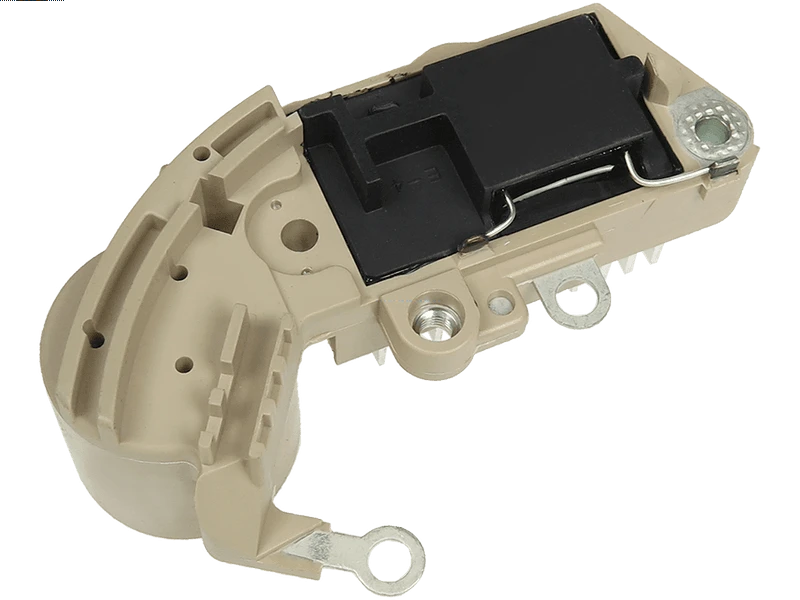

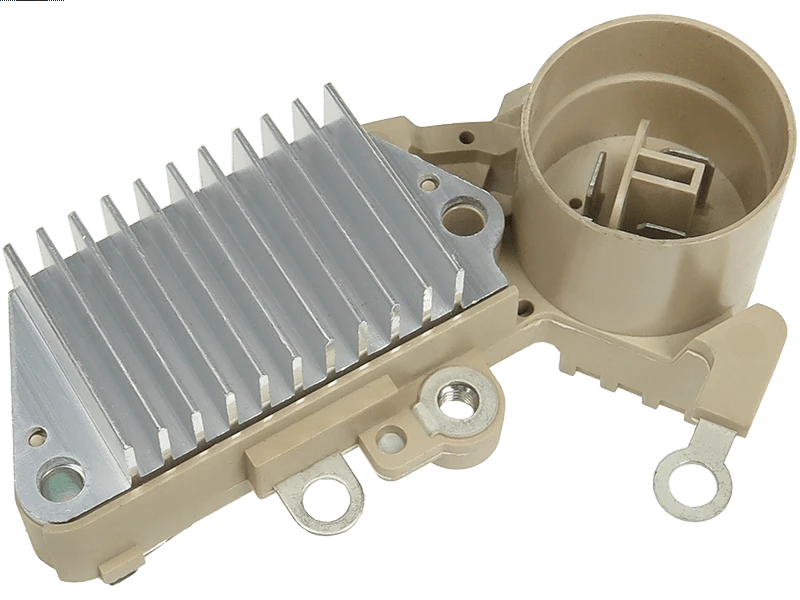

ARE6012 - Brand new AS-PL Alternator regulator

Brand new AS-PL Alternator regulator
Brand new AS-PL Alternator regulator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 61.00 including GST

NZ$ 53.04 excluding GST
each
ARE6012
1
Purchase Qty:

1002113400 1002113401 1002113830 1002113831 1002116000 1002116010 1002116020 1002116060 1002116080 1002116100 1002116110 1002116120 1002116130 1002116140 1002116180 1002116350 1002116370 1002117040 1002117100 1002117160 1002117180 1002117300 1002117310 1002117470 1002117640 1002117780 1002117820 1002117840 1002117910 1002117930 1002117960 1002118000 1002118010 1002118020 1002118070 1002118090 1002118110 1002118120 1002118230 1002118240 1002118250 1002118320 1002118330 1002118340 1002118380 1002118390 1002118392 1002118410 1002118420 1002118440 1002118450 1002118470 1002118480 1002118490 1002118500 1002118560 1002118590 1002118850 1002118860 1002119840 1012115210 1012115330 2706003010 2706035130 2706042060 2706046010 2706046020 2706050010 2706062050 2706065030 2706074090 2706074110 2706074120 2706074150 2706074170 2706074180 2706074190 2706074210 2706074220 2706074240 2706074280 2706074281 2706074290 A6515S 100211-6420

03-027 03027 YY17614
UD01943ARE AS-PL
135730 CARGO
CRE40115AS CASCO
CQ1010108 CQ
126000-0610 DENSO
126000-1110 DENSO
126000-1440 DENSO
126000-1441 DENSO
126000-1500 DENSO
VR-H2005-33DG MOBILETRON
1112625 POWERMAX
81112625 POWERMAX
1123-012RS RS
27700-74010 TOYOTA
YR-641 UNIPOINT
YR-643H UNIPOINT
IN434 WAI / TRANSPO
VRG46888 WOODAUTO
1002113400 DENSO
1002113401 DENSO
1002113830 DENSO
1002113831 DENSO
1002116000 DENSO
1002116010 DENSO
1002116020 DENSO
1002116060 DENSO
1002116080 DENSO
1002116100 DENSO
1002116110 DENSO
1002116120 DENSO
1002116130 DENSO
1002116140 DENSO
1002116180 DENSO
1002116350 DENSO
1002116370 DENSO
1002117040 DENSO
1002117100 DENSO
1002117160 DENSO
1002117180 DENSO
1002117300 DENSO
1002117310 DENSO
1002117470 DENSO
1002117640 DENSO
1002117780 DENSO
1002117820 DENSO
1002117840 DENSO
1002117910 DENSO
1002117930 DENSO
1002117960 DENSO
1002118000 DENSO
1002118010 DENSO
1002118020 DENSO
1002118070 DENSO
1002118090 DENSO
1002118110 DENSO
1002118120 DENSO
1002118230 DENSO
1002118240 DENSO
1002118250 DENSO
1002118320 DENSO
1002118330 DENSO
1002118340 DENSO
1002118380 DENSO
1002118390 DENSO
1002118392 DENSO
1002118410 DENSO
1002118420 DENSO
1002118440 DENSO
1002118450 DENSO
1002118470 DENSO
1002118480 DENSO
1002118490 DENSO
1002118500 DENSO
1002118560 DENSO
1002118590 DENSO
1002118850 DENSO
1002118860 DENSO
1002119840 DENSO
1012115210 DENSO
1012115330 DENSO
2706003010 TOYOTA
2706035130 TOYOTA
2706042060 TOYOTA
2706046010 TOYOTA
2706046020 TOYOTA
2706050010 TOYOTA
2706062050 TOYOTA
2706065030 TOYOTA
2706074090 TOYOTA
2706074110 TOYOTA
2706074120 TOYOTA
2706074150 TOYOTA
2706074170 TOYOTA
2706074180 TOYOTA
2706074190 TOYOTA
2706074210 TOYOTA
2706074220 TOYOTA
2706074240 TOYOTA
2706074280 TOYOTA
2706074281 TOYOTA
2706074290 TOYOTA
ARE6012 Cargo 135730 Denso 1260000610, 1260001110, 1260001440, 1260001441 Ghibaudi RTR8162 Magneti Marelli AMP0831 Mobiletron VRH200533A SJ WN434 Toyota 2770016010, 2770050010, 2770066020, 2770074010 Transpo IN434 Unipoint YR641, YR643H UTM RN6434A Используется для агрегатов1002113401, 1002116060, 1002116110, 1002116350, 1002117040, 1002117100, 1002117160, 1002117640, 1002117780, 1002117840, 1002117910, 1002118000, 1002118110, 1002118120, 1002118230, 1002118330, 1002118380, 1002118381, 1002118392, 1002118410, 1002118440, 1002118490, 1002118560, 1002118860, 1002119840,
Arrowhead AND6048, ASND6048
Denso 126000-0610, 126000-1110, 126000-1440, 126000-1441
Regitar MFVR02060, MFVR02062, VRH2005-33A, VRH2005-33DG
Toyota 27700-16010, 27700-46030, 27700-46040, 27700-50010, 27700-74010
4642031 Chrysler, Alternator, 12V, 120A
100211-3400 Denso, Alternator, 12V, 60A
100211-3401 Denso, Alternator, 12V, 60A
100211-3830 Denso, Alternator, 12V, 55A
100211-6000 Denso, Alternator, 12V, 100A
100211-6010 Denso, Alternator, 12V, 100A
100211-6020 Denso, Alternator, 12V, 100A
100211-6060 Denso, Alternator, 12V, 100A
100211-6080 Denso, Alternator, 12V, 100A
100211-6100 Denso, Alternator, 12V, 100A
100211-6110 Denso, Alternator, 12V, 90A
100211-6120 Denso, Alternator, 12V, 110A
100211-6130 Denso, Alternator, 12V, 90A
100211-6140 Denso, Alternator, 12V, 100A
100211-6180 Denso, Alternator, 12V, 90A
100211-6350 Denso, Alternator, 12V, 100A
100211-6370 Denso, Alternator, 12V, 120A
100211-7040 Denso, Alternator, 12V, 70A
100211-7100 Denso, Alternator, 12V, 70A
100211-7160 Denso, Alternator, 12V, 70A
100211-7180 Denso, Alternator, 12V, 60A
100211-7300 Denso, Alternator, 12V, 70A
100211-7310 Denso, Alternator, 12V, 70A
100211-7470 Denso, Alternator, 12V, 70A
100211-7640 Denso, Alternator, 12V, 70A
100211-7780 Denso, Alternator, 12V, 70A
100211-7820 Denso, Alternator, 12V, 70A
100211-7821 Denso, Alternator
100211-7840 Denso, Alternator, 12V, 60A
100211-7860 Denso, Alternator
100211-7861 Denso, Alternator
100211-7930 Denso, Alternator, 12V, 70A
100211-7960 Denso, Alternator, 12V, 70A
100211-8000 Denso, Alternator, 12V, 80A
100211-8010 Denso, Alternator, 12V, 70A
100211-8020 Denso, Alternator, 12V, 70A
100211-8050 Denso, Alternator, 12V, 80A
100211-8070 Denso, Alternator, 12V, 70A
100211-8110 Denso, Alternator, 12V, 80A
100211-8120 Denso, Alternator, 12V, 80A
100211-8230 Denso, Alternator, 12V, 70A
100211-8240 Denso, Alternator, 12V, 80A
100211-8250 Denso, Alternator, 12V, 90A
100211-8320 Denso, Alternator, 12V, 70A
100211-8321 Denso, Alternator
100211-8330 Denso, Alternator, 12V, 70A
100211-8340 Denso, Alternator, 12V, 70A
100211-8380 Denso, Alternator, 12V, 80A
100211-8390 Denso, Alternator, 12V, 70A
100211-8391 Denso, Alternator
100211-8392 Denso, Alternator, 12V, 70A
100211-8410 Denso, Alternator, 12V, 80A
100211-8420 Denso, Alternator, 12V, 80A
100211-8450 Denso, Alternator, 12V, 80A
100211-8470 Denso, Alternator, 12V, 80A
100211-8480 Denso, Alternator, 12V, 80A
100211-8490 Denso, Alternator, 12V, 70A
100211-8500 Denso, Alternator, 12V, 90A
100211-8590 Denso, Alternator, 12V, 70A
100211-8841 Denso, Alternator, 12V, 90A
100211-8850 Denso, Alternator, 12V, 80A
100211-9840 Denso, Alternator, 12V, 70A
100211-9880 Denso, Alternator, 12V, 80A
101211-5210 Denso, Alternator, 12V, 70A
27060-16151 Toyota, Alternator, 12V, 60A
27060-16180 Toyota, Alternator, 12V, 70A
27060-16240 Toyota, Alternator, 12V, 70A
27060-16270 Toyota, Alternator, 12V, 80A
27060-17020 Toyota, Alternator, 12V, 60A
27060-17030 Toyota, Alternator, 12V, 80A
27060-17040 Toyota, Alternator, 12V, 110A
27060-35130 Toyota, Alternator, 12V, 70A
27060-42010 Toyota, Alternator, 12V, 80A
27060-42020 Toyota, Alternator, 12V, 100A
27060-42021 Toyota, Alternator, 12V, 100A
27060-42030 Toyota, Alternator, 12V, 80A
27060-42040 Toyota, Alternator, 12V, 100A
27060-42041 Toyota, Alternator, 12V, 100A
27060-42042 Toyota, Alternator, 12V, 100A
27060-42060 Toyota, Alternator, 12V, 80A
27060-42080 Toyota, Alternator, 12V, 100A
27060-46010 Toyota, Alternator, 12V, 80A
27060-46020 Toyota, Alternator, 12V, 90A
27060-50010 Toyota, Alternator, 12V, 100A
27060-50011 Toyota, Alternator, 12V, 100A
27060-50020 Toyota, Alternator, 12V, 90A
27060-55040 Toyota, Alternator, 12V, 80A
27060-61100 Toyota, Alternator, 12V, 90A
27060-62050 Toyota, Alternator, 12V, 70A
27060-65020 Toyota, Alternator, 12V, 60A
27060-65030 Toyota, Alternator, 12V, 70A
27060-70270 Toyota, Alternator, 12V, 70A
27060-70280 Toyota, Alternator, 12V, 70A
27060-70290 Toyota, Alternator, 12V, 80A
27060-70291 Toyota, Alternator, 12V, 80A
27060-70310 Toyota, Alternator, 12V, 55A
27060-70330 Toyota, Alternator, 12V, 80A
27060-72180 Toyota, Alternator, 12V, 70A
27060-74020 Toyota, Alternator, 12V, 70A
27060-74050 Toyota, Alternator, 12V, 70A
27060-74070 Toyota, Alternator, 12V, 70A
27060-74090 Toyota, Alternator, 12V, 70A
27060-74110 Toyota, Alternator, 12V, 70A
27060-74120 Toyota, Alternator, 12V, 70A
27060-74130 Toyota, Alternator, 12V, 70A
27060-74140 Toyota, Alternator, 12V, 70A
27060-74150 Toyota, Alternator, 12V, 70A
27060-74160 Toyota, Alternator, 12V, 70A
27060-74170 Toyota, Alternator, 12V, 80A
27060-74180 Toyota, Alternator, 12V, 90A
27060-74190 Toyota, Alternator, 12V, 70A
27060-74220 Toyota, Alternator, 12V, 80A
27060-74240 Toyota, Alternator, 12V, 90A
27060-74280 Toyota, Alternator, 12V, 70A
27060-74281 Toyota, Alternator, 12V, 70A
27060-76020 Toyota, Alternator, 12V, 70A
27060-76030 Toyota, Alternator, 12V, 70A
Replaces:
Denso 126000-0610, 126000-1440, 126000-1441, Toyota 27700-16010, 27700-50010, 27700-74010
Unit Nos:
Chrysler 4642031, 56026811; Denso 100211-3400, 100211-3401, 100211-6060, 100211-6100, 100211-6110, 100211-6120, 100211-6140, 100211-6350, 100211-6370, 100211-7040, 100211-7100, 100211-7180, 100211-7230, 100211-7780, 100211-7820, 100211-7821, 100211-7840, 100211-7860, 100211-7861, 100211-8010, 100211-8020, 100211-8050, 100211-8070, 100211-8110, 100211-8230, 100211-8320, 100211-8321, 100211-8340, 100211-8380, 100211-8381, 100211-8390, 100211-8391, 100211-8392, 100211-8410, 100211-8440, 100211-8480, 100211-8490, 100211-8590, 100211-8840, 100211-8841, 100211-8850, 100211-9840; GM 94847107, 94849282; Lexus 27060-50010, 27060-50011, 27060-50011-84, 27060-50011-84; Marelli 943346173010, 943346173010, 944390512710, 944390512710; Toyota 27060-16082-84, 27060-16150, 27060-16151, 27060-16151-84, 27060-16180, 27060-16240, 27060-16270, 27060-17020, 27060-17030, 27060-17040, 27060-35061-84, 27060-35130, 27060-42030, 27060-42030-84, 27060-42042, 27060-42080, 27060-65020, 27060-65020-84, 27060-70290, 27060-70291, 27060-72180, 27060-74020, 27060-74020-84, 27060-74050, 27060-74120, 27060-74130, 27060-74130-84, 27060-74150, 27060-74160, 27060-74160-84, 27060-74170, 27060-74170-84, 27060-74180, 27060-74180-84, 27060-74190, 27060-74190-84, 27060-74250, 27060-74280, 27060-74291-84, 27060-76010, 27060-76020, 27060-76030, 27060-76030-84; Valeo 437826

Circuit TypeA
Plug CodePL_3500
Unit TypeDENSO
Voltage12 V

ARE6020 - With Load Response Control (LRC) and  L Terminal DRIVES CHOKE ( Active terminal)

ARE6001 - L Terminal DRIVES CHOKE ( Active Terminal)

Load response control (LRC)
Description:
This function controls the sudden torque increase on engine when started or electric load is changed within the idling speed.


How it achieves this:
The alternator output current is increased gradually at a constant rate (LRCrate) when generating is started.
The time needed to ramp up from 0% to 100% of duty cycle is defined as LRC rate. This function is
enabled when the alternator achieves a certain speed and after a delay time (LRC Time).
The LRC is disabled while the alternator rotor speed is greater than a set value.

it is these time delay, LRC rate which can differ from similar spec'd regulators



052.000.529.050 135730 27700-74010 CQ1010108 VRG46888 VR-H2005-33A REG6069 3546-4113 20532511BN RTR8162 SRE40115.0 IN434 126000-1441 81112625 126000-1110 126000-1440 ARN6434 126000-0610 126000-1500 215669 CRE40115AS UD01943ARE 052.000.529.910
1002116420 1002115210 052.000.529.050 1002118500 1002118480 1002118380 VRG46888 A6119 1002117470 A6515S 3546-4113 126000-1110 81112625 ARN6434 CRE40115AS UD01943ARE 1002117960 1002117780 135730 27700-74010 1002118450 CQ1010108 1012115220 1002116110 1002118590 1002118470 VR-H2005-33A 20532511BN RTR8162 SRE40115.0 IN434 126000-1441 126000-1440 126000-0610 126000-1500 215669 052.000.529.910
