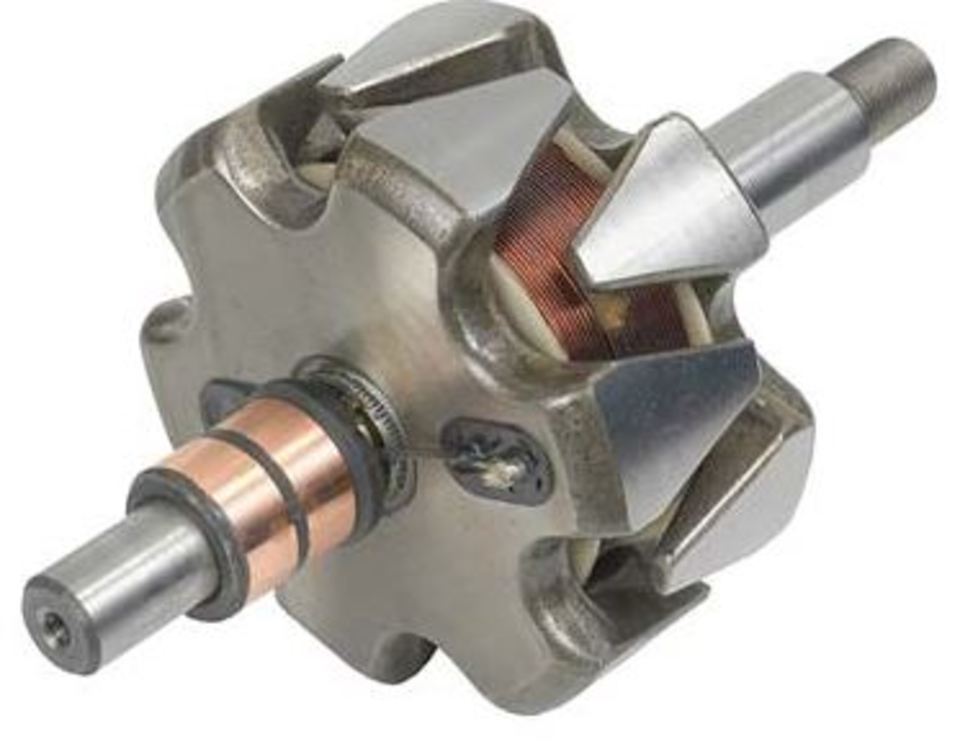

303-12041 - Delco Rotor 12V 22si

Delco Rotor 12V 22si
Brand new AS-NZ Alternator rotor
STANDARD LINE
AEP
Delco
Retail Price:
NZ$ 156.40 including GST

NZ$ 136.00 excluding GST



or four payments of $39.10 with
Afterpay Payment Offer Learn More

each
303-12041
2
Purchase Qty:

Description: Rotor
OEM(s): Delco
Voltage: 12
Low Output Amps: 130
High Output Amps: 145
Condition: New
Quality: Premium
Body OD: 4.244in / 107.8mm
Shaft OD (DE Bearing): 0.984in / 25mm
Shaft OD (SRE): 0.669in / 17mm
Slip Ring ID: 0.669in / 17mm
Slip Ring OD: 1.02in / 25.9mm
Length: 8.26in / 209.8mm
Pole Thickness: 2.173in / 55.2mm
Shaft OD (Pulley): 0.874in / 22.2mm
Shaft Threads: 5/8-18
Notes:
  • Long SRE Bearing Type
Application: Delco 22SI Alternators
Weight: 7.4 lbs / 3.36 kg
Amp145 A
Fitted with BearingNo
Length (L.1)209.8 mm
Outside Diameter (O.D.1)107.8 mm
Outside Diameter (O.D.2)22 mm
Poles12 qty
Thread DirectionRight
Thread size & pitch (d.)5/8 UNF mm
Voltage12 V
145
