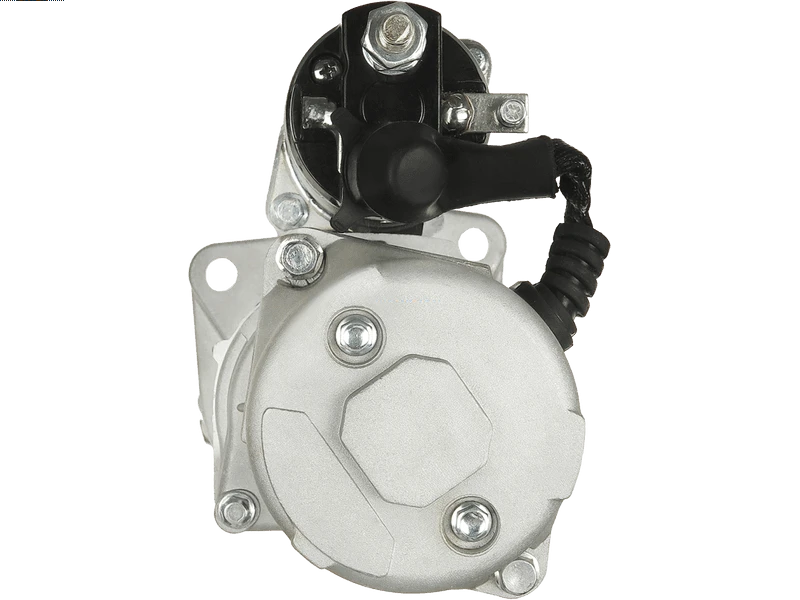

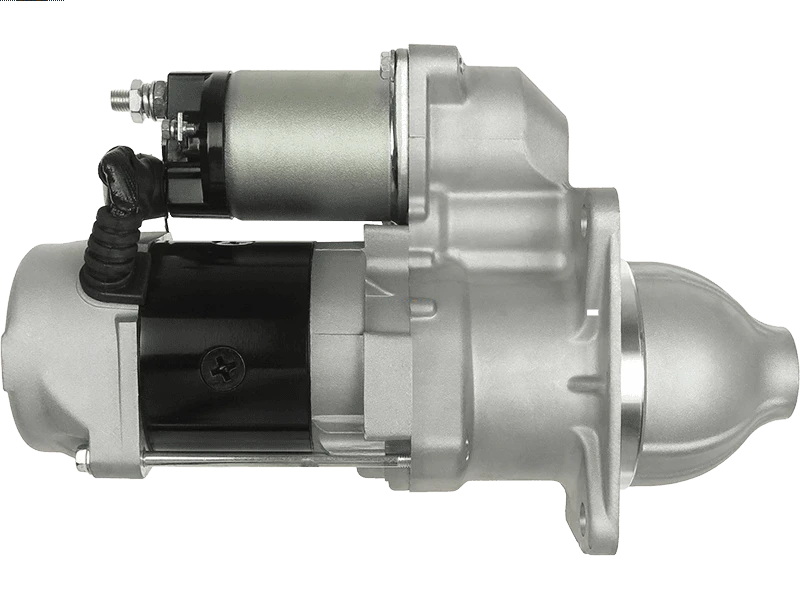

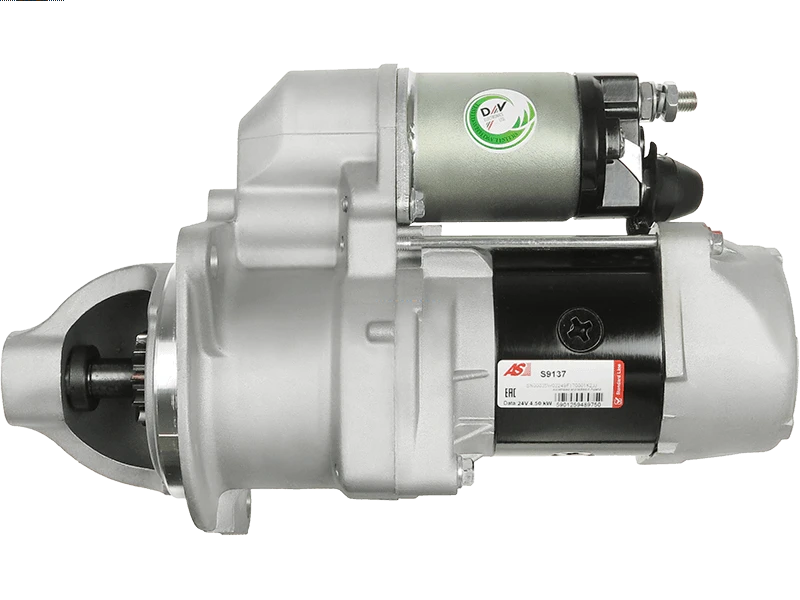

S9137 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 765.54 including GST

NZ$ 665.68 excluding GST
each
S6382S
S9137
1
Purchase Qty:
each

03505020010 03505020011 03505020012 03505020013 03505020014 03505020015 03505020016 03505020017 03505020018 03505020019 247-45201 281001820 281001820A 281001820B 281001820C 281001820D 281001820E 281001820F 281001821 281001821A 281001821B 281001821NE S-8633 STR75602 UD02166S UD02167S


UD02166S ASPL
UD02167S ASPL
24745201 DIXIE
S8633 DIXIE
281001820 HINO
281001820A HINO
281001820B HINO
281001820C HINO
281001820D HINO
281001820E HINO
281001820F HINO
281001821 HINO
281001821A HINO
281001821B HINO
281001821NE HINO
03505020010 SAWAFUJI
03505020011 SAWAFUJI
03505020012 SAWAFUJI
03505020013 SAWAFUJI
03505020014 SAWAFUJI
03505020015 SAWAFUJI
03505020016 SAWAFUJI
03505020017 SAWAFUJI
03505020018 SAWAFUJI
03505020019 SAWAFUJIList
STR75602 WOODAUTO
dxs456 dxs625 sxs703 sxs706 assf6171
708755 708758 708758G SNJ144G SNJ147

Kilowatt4.5 kW
Length (L.1)330 mm
Mount Hole Center - Center (O.1)141 mm
Mount Hole Center - Center (O.2)120 mm
Mount Hole Center - Center (O.3)107 mm
Mount Hole Diameter (C.1)13.5 mm
Mount Hole Diameter (C.2)13.5 mm
Mount Hole Diameter (C.3)13.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
Pinion at Rest (B)28 mm
RotationCW
Spigot Diameter (A)100 mm
Unit TypeSAWAFUJI
Voltage24 V
HINO Engine [DQ100] 01.1976-12.1988
HINO Engine [EC100] 01.1984-12.2002
HINO Engine [EH100] 01.1984-12.2002
HINO Engine [H06C] 01.1986-12.1995
HINO Engine [H07CTA] 01.1989-12.2003
HINO Engine [H07CT] 01.1989-12.2003
HINO Engine [H07C] 01.1986-12.1995
HINO Engine [H07D] 01.1989-12.2003
HINO Engine [J08C] 01.1989-12.2003

S9013 - 6.0kW version

03505020010 03505020011 03505020012 03505020013 03505020014 03505020015 03505020016 03505020017 03505020018 03505020019 247-45201 281001820 281001820A 281001820B 281001820C 281001820D 281001820E 281001820F 281001821 281001821A 281001821B 281001821NE S-8633 STR75602 UD02166S UD02167S
