Associated Numbers
03517020030 186-35029 23300-97064 247-70203 UD02172S
UD02172S AS-PL
247-70203 DIXIE
23300-97064 NISSAN
186-35029 ROBERT'S
03517020030 SAWAFUJI
snj146 708754
03506020020 Sawafuji
03506020092 Sawafuji
03517020030 Sawafuji
161503113 PSH
2330097061 Nissan
STR9820sa Electrolog

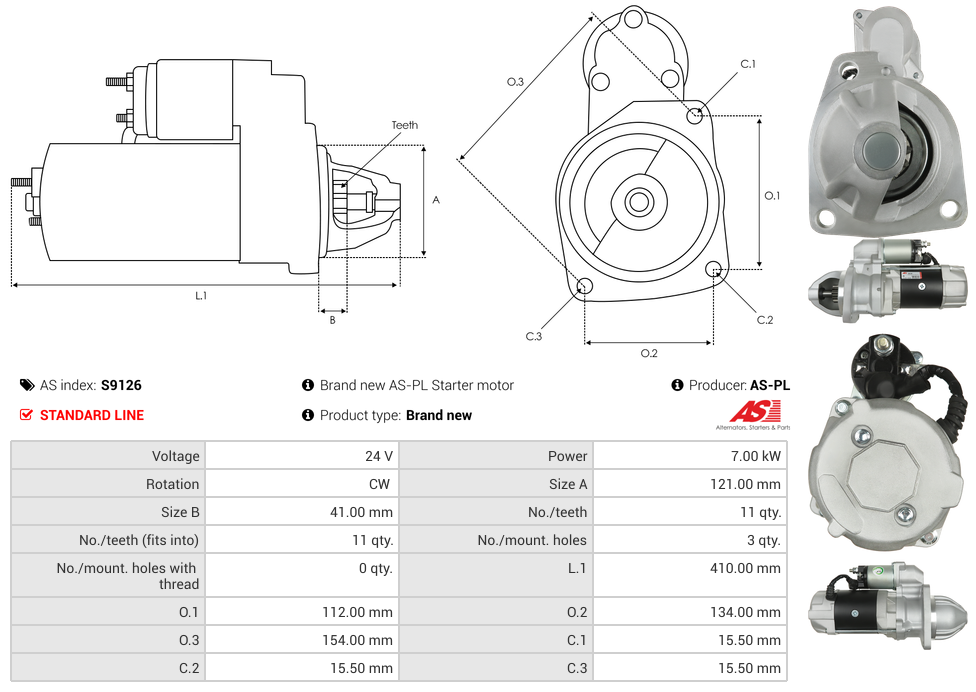

Specifications
Kilowatt | 7 kW |
Length (L.1) | 410 mm |
Mount Hole Center - Center (O.1) | 112 mm |
Mount Hole Center - Center (O.2) | 134 mm |
Mount Hole Center - Center (O.3) | 154 mm |
Mount Hole Diameter (C.1) | 15.5 mm |
Mount Hole Diameter (C.2) | 15.5 mm |
Mount Hole Diameter (C.3) | 15.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
No./Teeth (Replaces) | 11 qty |
Pinion at Rest (B) | 41 mm |
Rotation | CW |
Spigot Diameter (A) | 121 mm |
Unit Type | SAWAFUJI |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
HINO | Engine | [RD10] | 01.1980-12.1999 |
HINO | Engine | [RD8] | 01.1979-12.1999 |
HINO | Engine | [RF8] | 01.1984-12.2001 |
NISSAN | CM80 | [FD6] | 01.1979-12.1987 |
NISSAN | CM81 | [FD6] | 01.1979-12.1987 |
NISSAN | Various Models | [FE6] | |
NISSAN | Various Models | [RD10] | |
NISSAN | Various Models | [RD8] |
Alternatives >>>
S9257 - 8.0kW version
Reference Information
UD02172S 186-35029 3517020030 23300-97064 247-70203Video/Publications
03517020030 186-35029 23300-97064 247-70203 UD02172SAdd Your Number
