Associated Numbers
0365-502-0017 16-147 28100-E0080 28100E0080 70-8763 S9076 SXS713 281002894A 03655020016 2810078113 16-671 03655020027 281002891A 281002892A 281002894 2810078110 2810078111 2810078112 2810078113B QDJ2608 KRAUF STN8112WD STW8112LP STW8112TJ STW8112WD STW8112YJ STW9112NL Motorherz STW8112WA STW9112WA Sawafuji 03655020013 03655020017 03655020019 03655020023 03655020026 03655020029 03655020141 Toyota WAI 2-8100-HN WPS 19271N dxs4026 sxs713 sxs725 SNJ154 7087633 03655020146 03655020147 191518112 PSH Hino Lester 19271 PIC Picture ID 185399 ASPLList ASHDOWN INGRAM 708763 CIVIC/DA PARTS HINOList 16147 PAN PACIFIC SAWAFUJI Armature G Roy EGI S19271 2810078113A Part # Powerite Automotive 03655020028 New Mondial 7589390 Our Number Power Select Raw Road Warrior Techno CVC IND2870017 03656020016 03656020017 03656020018 281002865 281002862 281002863 03656020011 03656020012 0365602001 281002894STW8112STW91120365502001303655020017 036550200260365502002703655020029 28100-78180 03655020132 28100-2322A 28100-2322B 28100-2324 28100-2622B 28100-2624B 28100-2625 28100-2625A 28100-78061 28100-78062A 28100-78063 0350-502-0210 0350-502-0211 0350-502-0212 0350-502-0213 0350-502-0214 0355-502-0014 0355-502-0017 0355-502-0018 0355-502-0019 0355-502-0025 0355-502-0027 0355-502-0028 0355-502-0040 0355-502-0050 03505020264 281002710eSpecifications

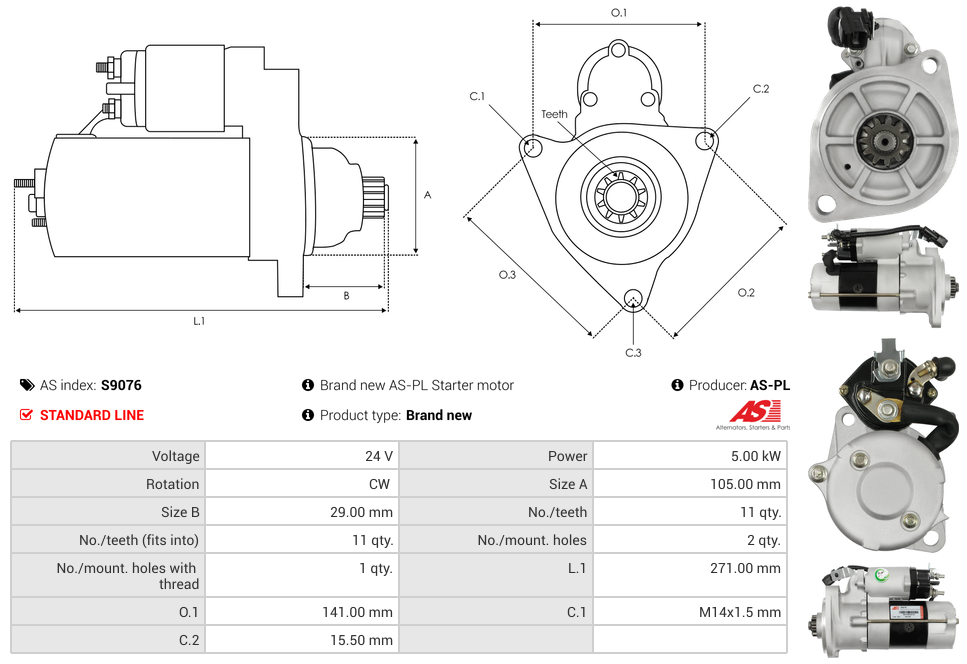

Kilowatt | 5 kW |
Length (L.1) | 271 mm |
Mount Hole Center - Center (O.1) | 141 mm |
Mount Hole Diameter (C.1) | M14x1.5 mm |
Mount Hole Diameter (C.2) | 15.5 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 1 qty |
No./Teeth | 11 qty |
No./Teeth (Replaces) | 11 qty |
Pinion at Rest (B) | 29 mm |
Rotation | CW |
Spigot Diameter (A) | 105 mm |
Unit Type | SAWAFUJI |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
HINO | Engine |
Alternatives >>>
S9128 - 4.5kW option, most common size fitted
Reference Information
281002891A 0365-502-0390 70-8763 2.81E+84 6037607.1 STR75615 28100-78113 20444706BN 2810078114 2810078112 281002894 20444706OE 0365-502-0147 0365-502-0146 191.518.112.540 0365-502-0141 S9076 2810078113A 191.518.112.140 MAV396070 16-147 SXS713 QDJ2608 CST37607GS CST37607AS STR9886 0365-502-0013 0365-502-0017 28100-E0080 6037607 191.518.112.138Video/Publications
0365-502-0017 16-147 28100-E0080 28100E0080 70-8763 S9076 SXS713Add Your Number
