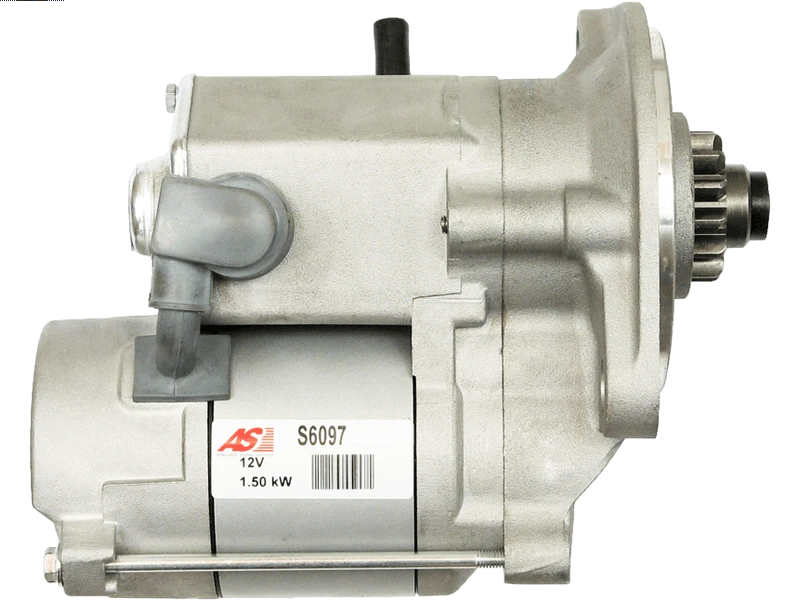

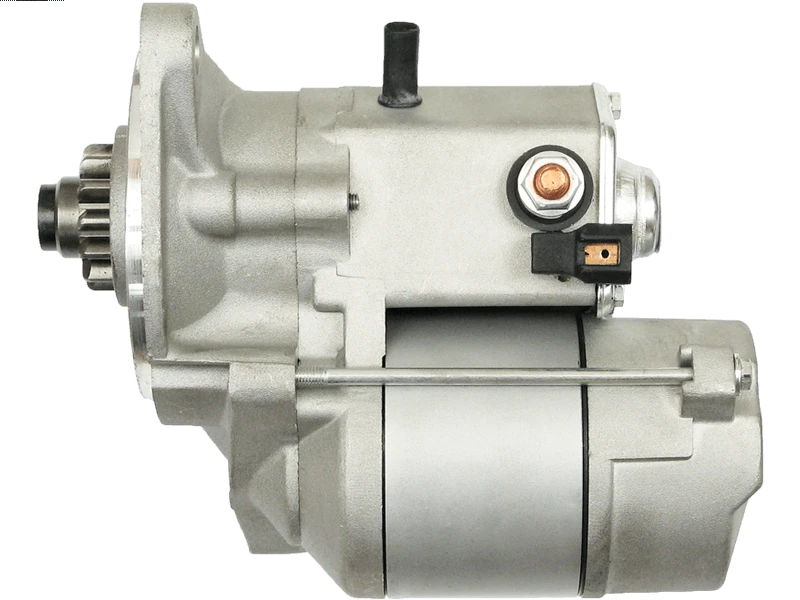

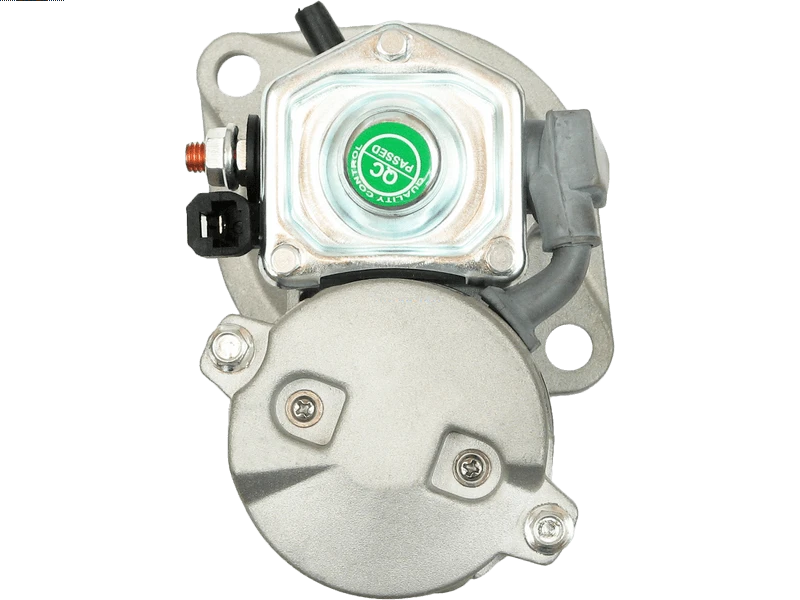

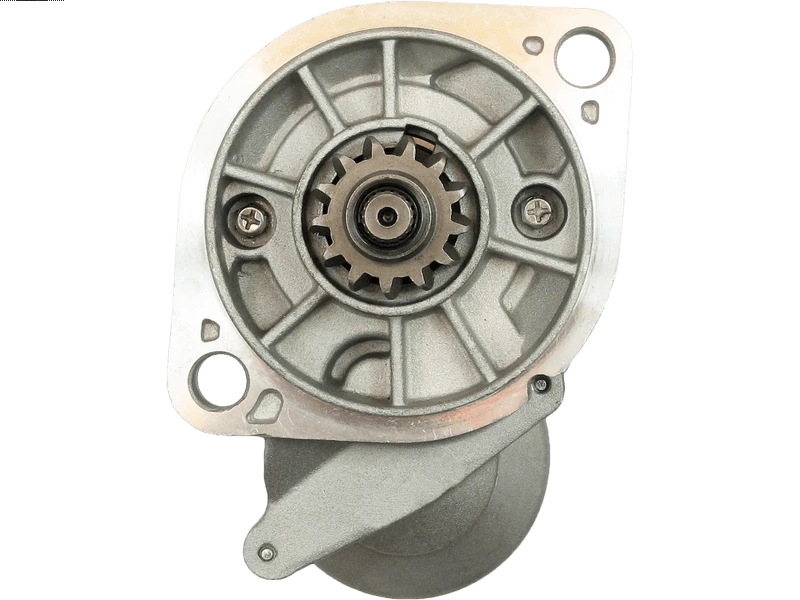

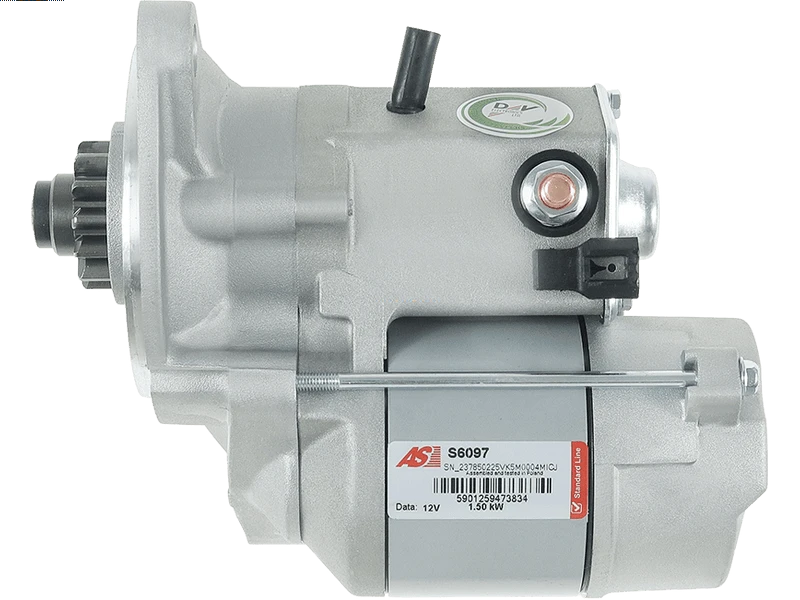

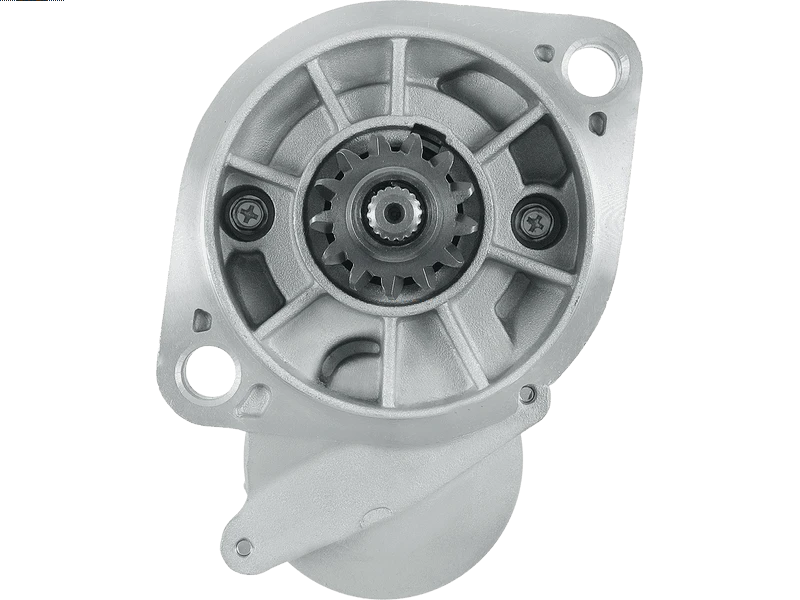

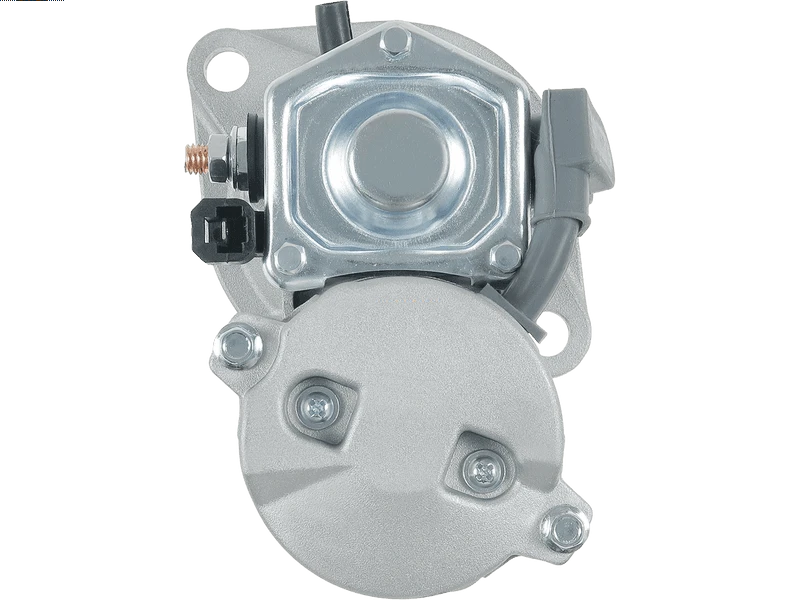

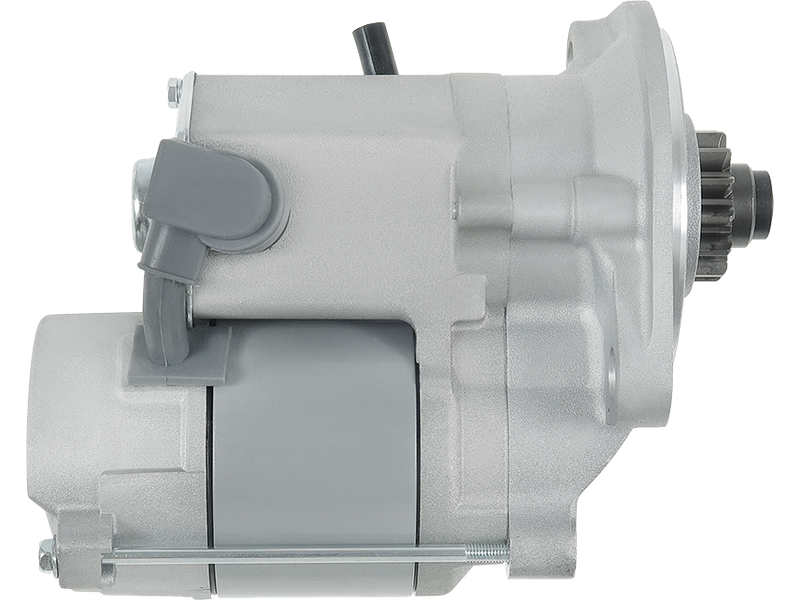

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 345.49 including GST
NZ$ 300.43 excluding GST
or four payments of $86.37
with
Learn More
UOM:
each
Alternative Item:
S6093
Product Code:
S6097
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
2280000250Associated Numbers
119209-77010 119385-77010 121120-77011 121120-77012 129407-77010 201239 20513032 20731 228000-0140 228000-0141 228000-0142 228000-0250 228000-0251 228000-3730 228000-3731 228000-3732 228000-3780 228000-3800 228000-3801 228000-3802 254411 AM876435 AM878415 AM880840 RG60654 STR30034 UD00738S UNIT BOM 190-582
UD00738S ASPL
2280000140 DENSOList
2280000141 DENSOList
2280000142 DENSO
2280000250 DENSOList
2280000251 DENSO
2280003730 DENSOList
2280003731 DENSO
2280003732 DENSO
2280003780 DENSOList
2280003800 DENSOList
2280003801 DENSOList
2280003802 DENSOList
AM876435 JOHN DEERE
AM878415 JOHN DEERE
AM880840 JOHN DEERE
RG60654 JOHN DEERE
20513032 PRESTOLITE
UNIT BOM 190582 WAI / TRANSPO
STR30034 WOODAUTO
11920977010 YANMARList
11938577010 YANMAR
12112077011 YANMARList
12112077012 YANMARList
12940777010 YANMAR
hxs070 7086584 snj291 snj049GQ
010250 Andre Niermann
013731 Andre Niermann
0280000251 Denso
110485 Cargo
12912977010 Yanmar
12940777010 Yanmar
18014 Lester
18014N WAI
18014R WAI
190422 PIC
2280000250 Denso
2280000251 Denso
2280003730 Denso
2280003731 Denso
2280003732 Denso
251062 Elstock
41052124 JN
42912977010 Yanmar
452176 Thermo King
8452176 Thermo King
910163 EDR
91295360 Wilson
980509132 PSH
A77440 ATL
A77590 ATL
CST40245AS Casco
DEM60731 ADI
DRS0163 Remy
DS1293 Remy
DSN2069 Denso
EF13610 EDR
LRS01125 Lucas
RG60654 John Deere
TY25237 John Deere
YM12940777010 Komatsu
Specifications
| Kilowatt | 1.50 kW |
| Length (L.1) | 189 mm |
| Mount Hole Center - Center (O.1) | 120 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| No./Teeth (Replaces) | 13.15 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 95 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CARRIER | Various Models | - | |
| JOHN DEERE | 3120 Compact Tractor | [3TNV88] | 01.2005- |
| JOHN DEERE | 3120 Compact Tractor | 3TNV88 | 01.2005- |
| JOHN DEERE | 3320 Compact Tractor | [3TNV88] | 01.2005- |
| JOHN DEERE | 3320 Compact Tractor | 3TNV88 | 01.2005- |
| JOHN DEERE | 3520 Compact Tractor | [3TNV84T] | 01.2005- |
| JOHN DEERE | 3520 Compact Tractor | 3TNV84T | 01.2005- |
| JOHN DEERE | 3720 | [3TNV84HT] | 01.1985- |
| JOHN DEERE | 3720 | 3TNV84HT | 01.1985- |
| JOHN DEERE | 4200 Compact Tractor | [3TNE78A] | 01.1998-12.2001 |
| JOHN DEERE | 4200 Compact Tractor | 3TNE78A | 01.1998-12.2001 |
| JOHN DEERE | 4210 Compact Tractor | [3TNE82A] | 01.2002-12.2004 |
| JOHN DEERE | 4210 Compact Tractor | 3TNE82A | 01.2002-12.2004 |
| JOHN DEERE | 4300 Compact Tractor | [3TNE84] | 01.1998-12.2003 |
| JOHN DEERE | 4300 Compact Tractor | 3TNE84 | 01.1998-12.2003 |
| JOHN DEERE | Various Models | - | |
| THERMO KING | Various Models | [Yanmar Diesel] | 01.1985- |
| THERMO KING | Various Models | [YanmarDiesel] | 01.1985- |
| THERMO KING | Various Models | YanmarDiesel | 01.1985- |
| THERMO KING | Various Models | 01.1985-01.0001 | |
| VOLVO | 140 (142, 144) 1.8 | B18A | 08.1966-07.1968 |
| VOLVO | 140 (142, 144) 1.8 S | B18B | 07.1967-01.1972 |
| VOLVO | 140 (142, 144) 2.0 | B20A | 08.1968-07.1974 |
| VOLVO | 140 (142, 144) 2.0 | B20D | 08.1971-07.1972 |
| VOLVO | 140 (142, 144) 2.0 | B20E | 09.1970-04.1975 |
| VOLVO | 140 (142, 144) 2.0 S | B20B | 11.1968-09.1972 |
| VOLVO | 140 (142, 144) 2.0 S | B20F | 09.1972-08.1975 |
| VOLVO | 140 Estate (145) 2.0 S | B20A | 08.1968-07.1974 |
| VOLVO | 140 Estate (145) 2.0 S | B20B | 08.1972-07.1973 |
| VOLVO | 140 Estate (145) 2.0 S | B20B | 08.1972-07.1974 |
| VOLVO | 140 Estate (145) 2.0 S | B20E | 08.1972-07.1973 |
| VOLVO | 140 Estate (145) 2.0 S | B20F | 09.1973-02.1975 |
| VOLVO | 164 (164) 2.9 | B30E | 08.1972-07.1974 |
| VOLVO | 164 (164) 2.9 E | B30A | 08.1968-07.1973 |
| VOLVO | 240 Kombi (P245) 2.0 | B19A | 08.1976-01.1982 |
| VOLVO | 240 Kombi (P245) 2.0 | B19A | 08.1980-12.1984 |
| VOLVO | 240 Kombi (P245) 2.0 | B19K | 08.1980-12.1984 |
| VOLVO | 240 Kombi (P245) 2.0 | B200K | 08.1984-07.1985 |
| VOLVO | 240 Kombi (P245) 2.0 | B20A | 08.1974-07.1975 |
| VOLVO | 240 Kombi (P245) 2.1 | B21A | 08.1974-07.1975 |
| VOLVO | 240 Kombi (P245) 2.1 | B21A | 08.1975-07.1980 |
| VOLVO | 240 Kombi (P245) 2.1 | B21A | 08.1980-07.1984 |
| VOLVO | 240 Kombi (P245) 2.1 | B21E | 08.1974-09.1983 |
| VOLVO | 240 Kombi (P245) 2.1 | B21F | 08.1980-07.1984 |
| VOLVO | 240 Kombi (P245) 2.1 Turbo | B21ET | 08.1980-07.1985 |
| VOLVO | 240 Kombi (P245) 2.3 | B230A | 08.1984-07.1986 |
| VOLVO | 240 Kombi (P245) 2.3 | B230E | 08.1984-07.1985 |
| VOLVO | 240 Kombi (P245) 2.3 | B230F | 08.1986-07.1987 |
| VOLVO | 240 Kombi (P245) 2.3 | B23A | 08.1980-07.1984 |
| VOLVO | 240 Kombi (P245) 2.3 | B23E | 08.1980-12.1984 |
| VOLVO | 240 Kombi (P245) 2.3 | B23E | 08.1984-12.1988 |
| VOLVO | 240 Kombi (P245) 2.3 i Cat | B230F | 08.1986-07.1993 |
| VOLVO | 240 (P242, P244) 2.0 | B19A | 08.1976-07.1979 |
| VOLVO | 240 (P242, P244) 2.0 | B19A | 09.1978-08.1983 |
| VOLVO | 240 (P242, P244) 2.0 | B19K | 09.1978-08.1983 |
| VOLVO | 240 (P242, P244) 2.0 | B200K | 08.1984-07.1985 |
| VOLVO | 240 (P242, P244) 2.0 | B20A | 08.1974-07.1976 |
| VOLVO | 240 (P242, P244) 2.1 | B21A | 08.1974-07.1975 |
| VOLVO | 240 (P242, P244) 2.1 | B21A | 08.1975-07.1980 |
| VOLVO | 240 (P242, P244) 2.1 | B21A | 08.1980-07.1984 |
| VOLVO | 240 (P242, P244) 2.1 | B21E | 08.1974-09.1983 |
| VOLVO | 240 (P242, P244) 2.1 Turbo | B21ET | 08.1980-07.1984 |
| VOLVO | 240 (P242, P244) 2.3 | B230A | 08.1984-07.1986 |
| VOLVO | 240 (P242, P244) 2.3 | B230E | 08.1983-07.1985 |
| VOLVO | 240 (P242, P244) 2.3 | B230F | 08.1986-07.1987 |
| VOLVO | 240 (P242, P244) 2.3 | B23A | 08.1980-07.1984 |
| VOLVO | 240 (P242, P244) 2.3 | B23E | 08.1978-12.1982 |
| VOLVO | 240 (P242, P244) 2.3 | B23E | 08.1980-07.1983 |
| VOLVO | 240 (P242, P244) 2.3 | B23E | 08.1984-12.1989 |
| VOLVO | 240 (P242, P244) 2.3 | B23F | 08.1980-07.1983 |
| VOLVO | 240 (P242, P244) 2.3 i Cat | B230F | 08.1986-07.1993 |
| VOLVO | 340-360 (343, 345) 2.0 | B19A | 08.1980-07.1983 |
| VOLVO | 340-360 (343, 345) 2.0 | B19A | 08.1980-07.1984 |
| VOLVO | 340-360 (343, 345) 2.0 | B19A | 08.1983-07.1984 |
| VOLVO | 340-360 (343, 345) 2.0 | B19E | 08.1982-07.1984 |
| VOLVO | 340-360 (343, 345) 2.0 | B19E | 08.1982-07.1984 |
| VOLVO | 340-360 (343, 345) 2.0 | B200E | 08.1984-07.1986 |
| VOLVO | 340-360 (343, 345) 2.0 | B200E | 08.1986-07.1988 |
| VOLVO | 340-360 (343, 345) 2.0 | B200F | 08.1986-07.1988 |
| VOLVO | 340-360 (343, 345) 2.0 | B200F | 08.1987-07.1988 |
| VOLVO | 340-360 (343, 345) 2.0 | B200F | 08.1988-07.1989 |
| VOLVO | 340-360 (343, 345) 2.0 | B200K | 08.1980-07.1983 |
| VOLVO | 340-360 (343, 345) 2.0 | B200K | 08.1984-07.1987 |
| VOLVO | 340-360 Saloon (344) 2.0 | B19A | 08.1982-07.1984 |
| VOLVO | 340-360 Saloon (344) 2.0 | B19A | 08.1983-07.1984 |
| VOLVO | 340-360 Saloon (344) 2.0 | B19E | 08.1983-07.1984 |
| VOLVO | 340-360 Saloon (344) 2.0 | B200E | 08.1984-07.1986 |
| VOLVO | 340-360 Saloon (344) 2.0 | B200E | 08.1984-07.1986 |
| VOLVO | 340-360 Saloon (344) 2.0 | B200EA | 08.1986-07.1988 |
| VOLVO | 340-360 Saloon (344) 2.0 | B200EA | 08.1987-07.1988 |
| VOLVO | 340-360 Saloon (344) 2.0 | B200F | 08.1988-07.1989 |
| VOLVO | 340-360 Saloon (344) 2.0 | B200K | 08.1984-07.1987 |
| VOLVO | 340-360 Saloon (344) 2.0 | B200K | 08.1984-07.1990 |
| VOLVO | 740 (744) 2.0 | B200E | 01.1987-08.1988 |
| VOLVO | 740 (744) 2.0 | B200ET | 01.1985-12.1985 |
| VOLVO | 740 (744) 2.0 | B200ET | 01.1986-08.1990 |
| VOLVO | 740 (744) 2.0 | B200K | 09.1988-08.1990 |
| VOLVO | 740 (744) 2.3 | B230E | 08.1984-12.1992 |
| VOLVO | 740 (744) 2.3 | B230F | 08.1984-07.1990 |
| VOLVO | 740 (744) 2.3 | B230F | 09.1985-12.1989 |
| VOLVO | 740 (744) 2.3 | B230FB | 08.1984-12.1992 |
| VOLVO | 740 (744) 2.3 | B230K | 10.1984-07.1988 |
| VOLVO | 740 (744) 2.3 | B234F | 08.1988-07.1991 |
| VOLVO | 740 (744) 2.3 | B23A | 08.1984-07.1990 |
| VOLVO | 740 (744) 2.3 | B23E | 08.1983-07.1984 |
| VOLVO | 740 (744) 2.3 Turbo | B230FT | 08.1986-07.1989 |
| VOLVO | 740 (744) 2.3 Turbo | B230FT | 08.1989-07.1990 |
| VOLVO | 740 (744) 2.3 Turbo | B230FT | 08.1989-07.1990 |
| VOLVO | 740 Kombi (745) 2.0 | B200E | 01.1987-08.1988 |
| VOLVO | 740 Kombi (745) 2.0 | B200F | 08.1989-07.1991 |
| VOLVO | 740 Kombi (745) 2.0 | B200K | 09.1988-08.1990 |
| VOLVO | 740 Kombi (745) 2.3 | B230E | 08.1985-07.1988 |
| VOLVO | 740 Kombi (745) 2.3 | B230F | 08.1985-12.1989 |
| VOLVO | 740 Kombi (745) 2.3 | B234F | 08.1988-07.1990 |
| VOLVO | 740 Kombi (745) 2.3 Turbo | B230ET | 08.1985-07.1988 |
| VOLVO | 740 Kombi (745) 2.3 Turbo | B230FT | 08.1986-07.1989 |
| VOLVO | 740 Kombi (745) 2.3 Turbo | B230FT | 08.1989-07.1990 |
| VOLVO | 740 Kombi (745) 2.3 Turbo | B230GT | 08.1989-07.1990 |
| VOLVO | 760 (704, 764) 2.3 | B230FT | 01.1988-07.1992 |
| VOLVO | 760 (704, 764) 2.3 Turbo | B23ET | 08.1982-07.1984 |
| VOLVO | 760 Kombi (704, 765) 2.3 Turbo | B230ET | 08.1984-08.1990 |
| VOLVO | P 121 1.8 | B18 | 02.1967-05.1971 |
| VOLVO | P 121 2.0 | B20A | 11.1968-05.1971 |
| VOLVO | P 122 S AMAZON 1.8 | B18 | 09.1966-05.1971 |
| VOLVO | P 122 S AMAZON 1.8 | B18 | 09.1966-05.1971 |
| VOLVO | P 122 S AMAZON 1.8 | B18D | 02.1967-05.1971 |
| VOLVO | P 122 S AMAZON 2.0 | B20B | 11.1968-05.1971 |
| VOLVO | P 1800 (P18) 1.8 | B18AHW | 04.1962-05.1970 |
| VOLVO | P 1800 (P18) 1.8 | B18DRW | 04.1962-05.1970 |
| VOLVO | P 1800 (P18) 1.8 S | B18DRV | 04.1962-05.1970 |
| VW | POLO III (6N1) 1.7 SDI | AHG | 04.1997-10.1999 |
| VW | POLO III (6N1) 64 1.9 SDI | AGD | 07.1996-10.1999 |
| YANMAR | 4JH | - | |
| YANMAR | Engine | [3TNE78A] | 01.1998-12.2001 |
| YANMAR | Engine | [3TNE82A] | 01.2002-12.2004 |
| YANMAR | Engine | [3TNE84] | 01.1998-12.2003 |
| YANMAR | Engine | [3TNV84HT] | 01.1985- |
| YANMAR | Engine | [3TNV84T] | 01.1985- |
| YANMAR | Engine | [3TNV88] | 01.2005- |
| YANMAR | Engine | 3TNE78A | 01.1998-12.2001 |
| YANMAR | Engine | 3TNE82A | 01.2002-12.2004 |
| YANMAR | Engine | 3TNV84HT | 01.1985- |
| YANMAR | Engine | 3TNV84T | 01.1985- |
| YANMAR | Engine | 3TNV88 | 01.2005- |
| YANMAR | Engine 1.3 | 3TNE84 | 01.1982-12.2003 |
Reference Information
| 119209-77010 | YANMAR |
| 119385-77010 | YANMAR |
| 121120-77011 | YANMAR |
| 121120-77012 | YANMAR |
| 129129-77010 | YANMAR |
| 129407-77010 | YANMAR |
| 201239 | KUHNER |
| 20513032 | PRESTOLITE |
| 20731 | KUHNER |
| 220578 | ERA |
| 228000-0140 | DENSO |
| 228000-0141 | DENSO |
| 228000-0142 | DENSO |
| 228000-0250 | DENSO |
| 228000-0251 | DENSO |
| 228000-3730 | DENSO |
| 228000-3731 | DENSO |
| 228000-3732 | DENSO |
| 228000-3780 | DENSO |
| 228000-3800 | DENSO |
| 228000-3801 | DENSO |
| 228000-3802 | DENSO |
| 254411 | KUHNER |
| AM876435 | JOHN DEERE |
| AM878415 | JOHN DEERE |
| AM880840 | JOHN DEERE |
| CGB-23046 | AINDE |
| CGB-23247 | AINDE |
| MAV422170 | SIOM |
| MAV422450 | SIOM |
| RG60654 | JOHN DEERE |
| S12DE0398 | SIDAT |
| S12DE0398A2 | SIDAT |
| S6097 | AS-PL |
| STR30034 | WOODAUTO |
| STR6658 | ELECTROLOG |
| STX200471 | STARDAX |
| UD00738S | AS-PL |
| UNIT BOM 190-582 | WAI |
Video/Publications
S6097View your shopping basket or Browse other items in Starter Motors.
