S5234 - Brand new AS-PL Starter motor

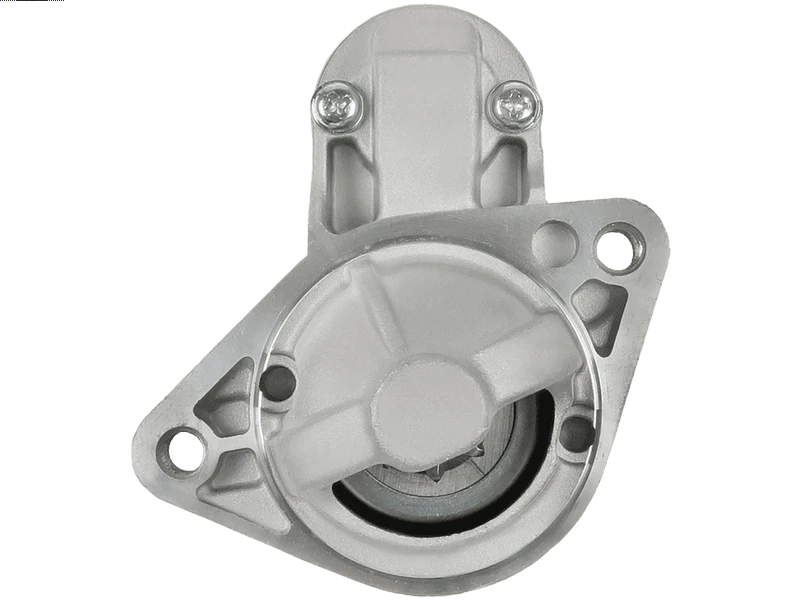

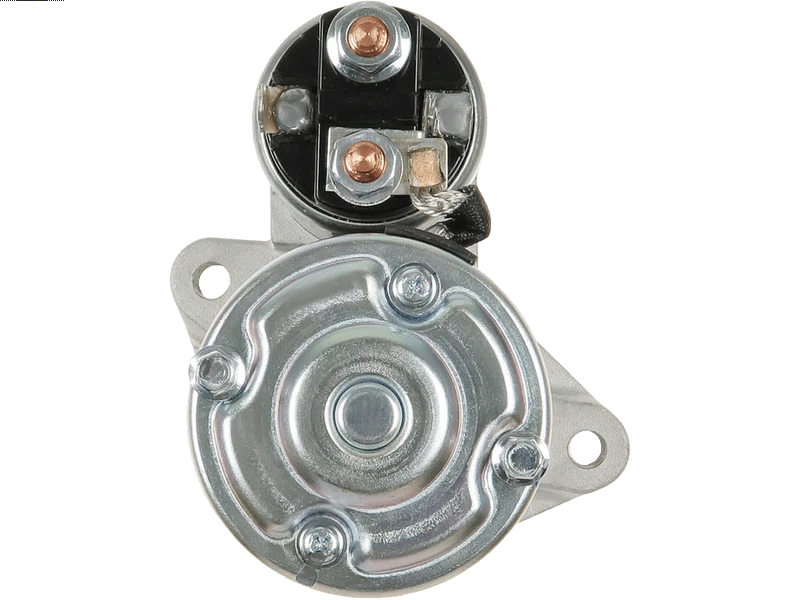

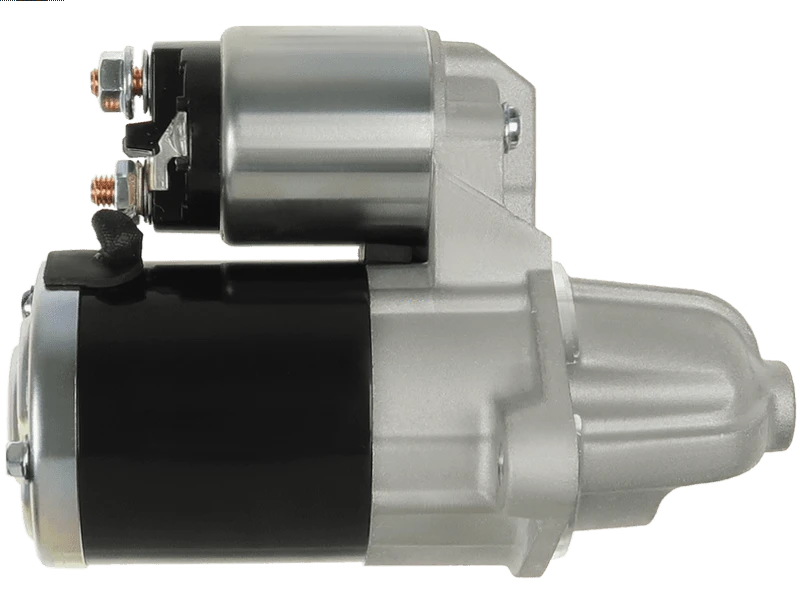

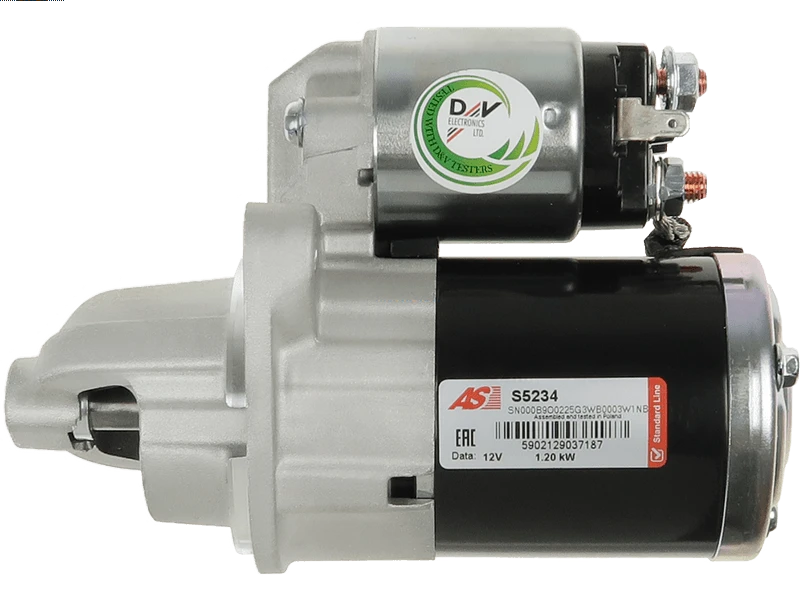

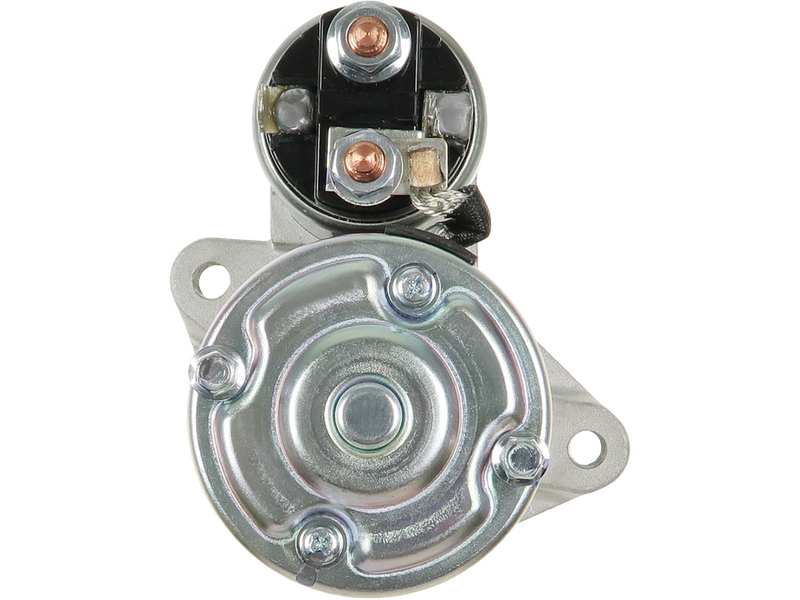

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 358.94 including GST

NZ$ 312.12 excluding GST
UOM:
each
S5234
3
Purchase Qty:
each


0986023720 115349 12108 180.507.082 201310 201310M 201319 20432702 228000-8930 25-3146 31100-63J00 31100-63J10 31100-75F60 31100-80G00 31100-80G1 31100-80G10 31100-80G20 31100-86G00 31100-86G00E 32620N 33216R 428000-3600 6035180 6040207 8EA738258-121 9764 AET1310 CST35180 CST35180AS CST35180ES CST35180GS CST35180OS CST35180RS CST40207 CST40207AS CST40207ES CST40207GS CST40207OS CST40207RS DRS0873 J5218019 JS1319 LRS01621 M000T36071 M000T36071ZE M000T86581 M002T46781ZE M002T46782ZE M002T47681 M00T86582 M0T36071 M0T36071ZE M0T86581 M1T86681 M2T46781 M2T46781ZE M2T46782ZE M2T47681 MITM0T36071 S5234 SS213 SS523 STR71116 UD11987S

DXS4025 16-421 snj279 70-8135
UD20375S ASPL
S80022 DIXIE
STM3005 KRAUF
M000T86685 MITSUBISHI
M000T86685ZC MITSUBISHI
M000T90685 MITSUBISHI
M000T90685ZC MITSUBISHI
M0T86685 MITSUBISHIList
M0T86685ZC MITSUBISHI
M0T90685 MITSUBISHIList
M0T90685ZC MITSUBISHIList
233009E011 NISSAN
233009E012 NISSAN
17828N WAI / TRANSPO
17828R WAI / TRANSPO
91273362 WILSON
Arrowhead SMT0217
Bosch SR2296X
Lester 17828
Mitsubishi M0T90685, M0T90685ZC
Nissan 233009E012
PIC Picture ID 103382A
Wilson 91273362
J&N 41048107

References:
J&N 41048107
Bosch SR2296X
Lester 17828
PIC Picture ID 103382A

Kilowatt1.2 kW
Length (L.1)183 mm
Mount Hole Center - Center (O.1)102 mm
Mount Hole Diameter (C.1)M10x1.25 mm
Mount Hole Diameter (C.2)M10x1.25 mm
No./Mount holes2 qty
No./Mount holes with thread2 qty
No./Teeth8 qty
Pinion at Rest (B)28 mm
RotationCW
Spigot Diameter (A)70 mm
Unit TypeMITSUBISHI
Voltage12 V
FIAT Sedici 1.6 [M16A] 06.2006-10.2014
FIAT Sedici 1.6 4x4 [M16A] 06.2006-10.2014
FIAT Sedici 1.9 4x4 [D19AA] 06.2006-10.2014
SUBARU Justy 1.3 [M13A] 01.2003-12.2007
SUBARU Justy 1.5 [M15A] 01.2003-12.2007
SUZUKI Ignis 1.3 4x4 [M13A] 09.2003-
SUZUKI Ignis 1.5 [M15A] 09.2003-
SUZUKI Ignis 1.5 4WD [M15A] 09.2003-
SUZUKI Jimny 1.3 [M13A] 01.2001-12.2005
SUZUKI Jimny 1.3 16V 4WD [M13A] 08.2005-
SUZUKI Liana 1.3 [M13A] 03.2002-
SUZUKI Liana 1.6 [M16A] 01.2005-
SUZUKI Liana 1.6 4WD [M16A] 01.2005-
SUZUKI Swift 1.3 4x4 [M13A] 01.2006-
003-Z266 0986023720 114060 115349 12108 180.507.082 201310 201310M 201319 20432702 228000-8930 25-3146 31100-63J00 31100-63J10 31100-75F60 31100-80G00 31100-80G1 31100-80G10 31100-80G20 31100-86G00 31100-86G00E 32620N 33216R 3Z266 428000-3600 6035180 6040207 8EA738258-121 9764 AET1310 CST35180 CST35180AS CST35180ES CST35180GS CST35180OS CST35180RS CST40207 CST40207AS CST40207ES CST40207GS CST40207OS CST40207RS DRS0873 J5218019 J5218026 JS1310 JS1319 LRS01621 LRS1621 M000T36071 M000T36071ZE M000T86581 M002T46781ZE M002T46782ZE M002T47681 M00T86582 M0T36071 M0T36071ZE M0T86581 M1T86681 M2T46781 M2T46781ZE M2T46782ZE M2T47681 MAV371600 MAV371800 MAV422070 MITM0T36071 MTZ266 RNLM0T86581 S5234 SS213 SS523 STR71116 STRJ004 STRS668 UD11987S 220826
