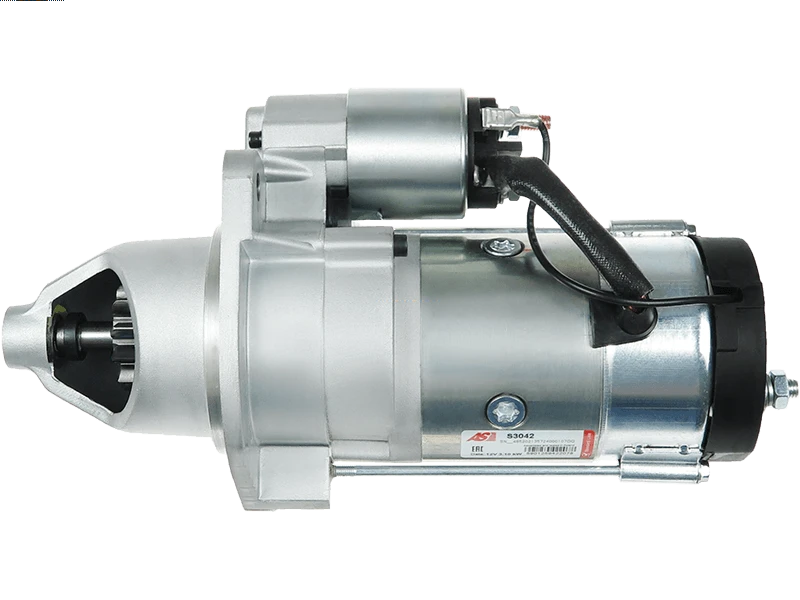

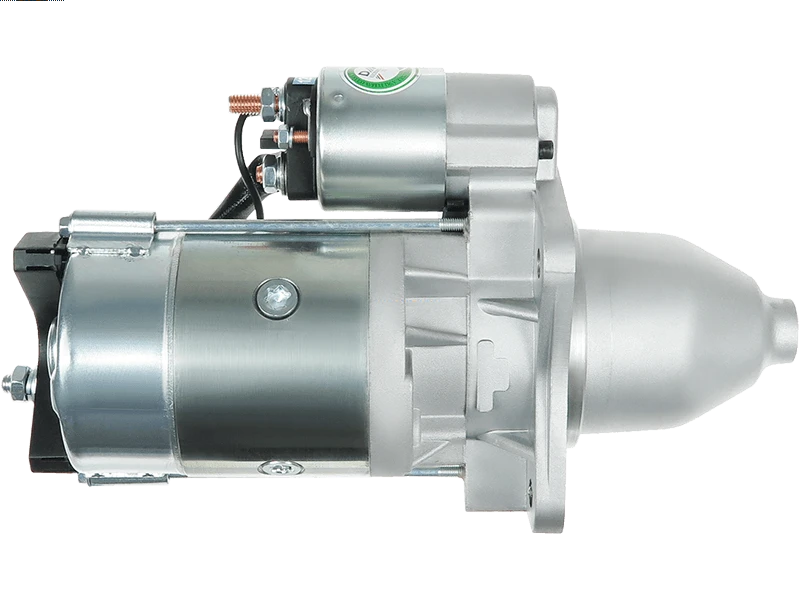

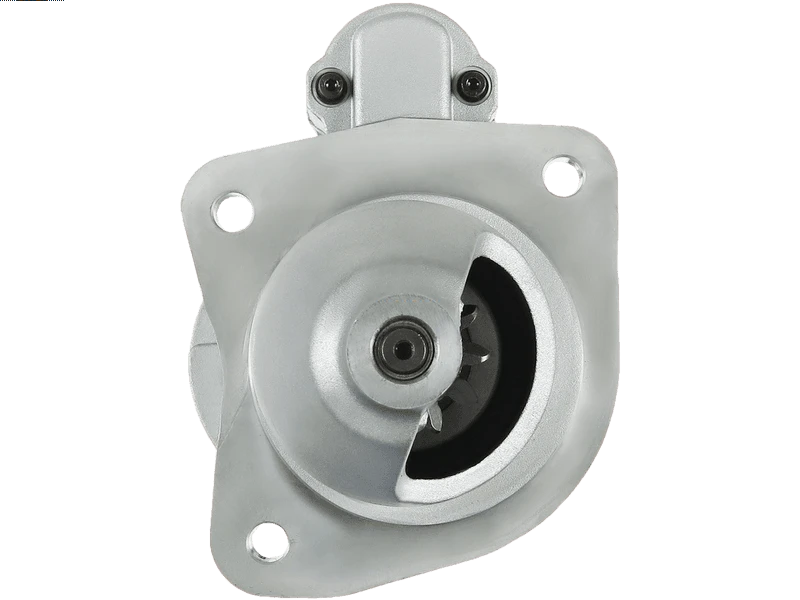

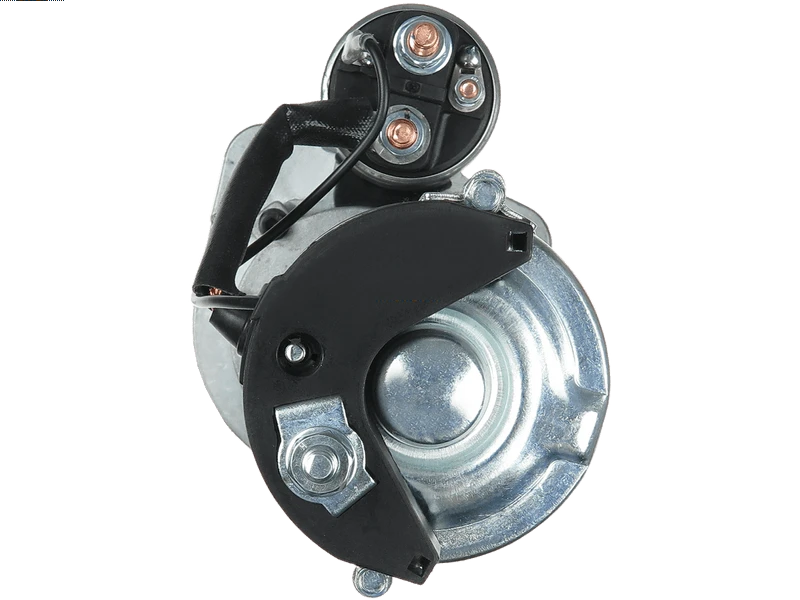

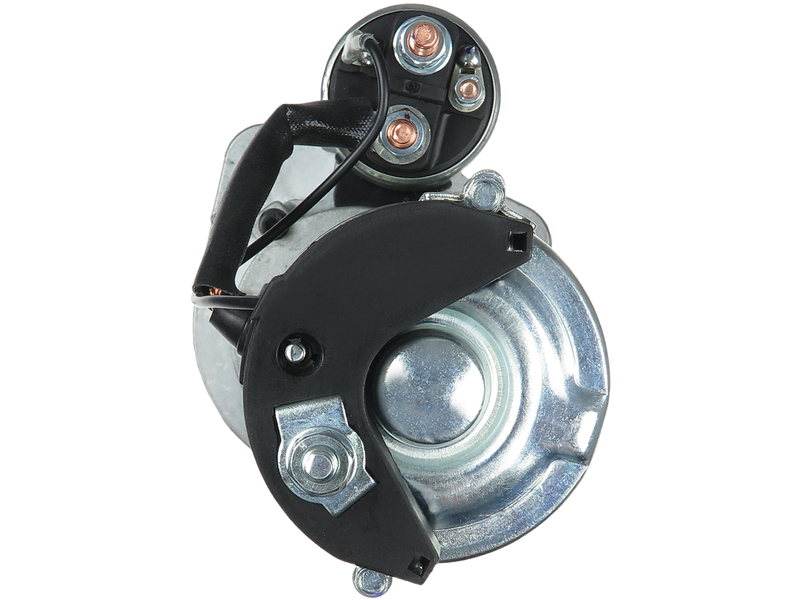

S3042 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 538.85 including GST

NZ$ 468.57 excluding GST
each
S3042
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

101035 101035V 10783 10783K 10783V 111047 17316N 184202 20479551OE 20550102 22.1035 25-1420 33629 35261420 3581774 3803118 3803200 3803386 6015155 859252 8697 8EA737252-001 CS1035 CST15155GS D11E167 D11E167T D9R116 D9R144 EAA-121154 LRS01250 ND147 S3042 STR54022


S3042 ASPLList
111047 CARGO
CST15155GS CASCO
8697 CEVAM
EAA121154 EAA
33629 EAI
251420 ELSTOCK
CS1035 HC PARTS
8EA737252001 HELLA
22.1035 LAUBER
LRS01250 LUCAS
20550102 PRESTOLITE
35261420 PRESTOLITE
20479551OE REAL
6015155 SANDO
184202 VALEOList
D11E167 VALEO
D11E167T VALEOList
D9R116 VALEOList
D9R144 VALEOList
ND147 VALEO
3581774 VOLVO
3803118 VOLVO
3803200 VOLVO
3803386 VOLVO
859252 VOLVO
17316N WAI / TRANSPO
STR54022 WOODAUTO
184202 vxs932 snv005GQ
0986012780 Bosch ruil
108246 PIC
110047
11012780 EuroTec
11130811 Mahle
17316 Lester
17316N WAI
17316R WAI
184202 Lester
188486 Lester
251420 Elstock
33629 EAI
3581774 Volvo
3803200 Volvo
3803386 Volvo
4460SP Spidan
455537 Valeo
642282 Valeo
810519113 PSH
8592529 Volvo
859252X Volvo
8812780F Friesen
91203509 Wilson
912780 EDR
CS1035 HC
D9R116 Valeo
D9R144 Valeo
DRS2780 Remy
HCS1035 HC
LES0237 Lucas
LRS01250 Lucas
lrs1250 Lucas
IMI Hi Torque IMI2502
Valeo 184202
Wilson 91203509

References:
Arrowhead SPR0007
Bosch SR5001N
Lester 17316
MAHLE IS0811, IS1322, MS263, MS41
Paris Rhone D9R116
PIC Picture ID 108246
Valeo 184202, 455537, D9R116, D9R144
Volvo 859252, 8592529, 859252X
Wilson 91203509
References:
J&N 41040030
Bosch SR5001N
Delco DRS3273
Lester 17316
Paris Rhone D9R116, D9R144
PIC Picture ID 108246
Valeo 184202, 188486
Volvo 859252, 859252X
Wilson 91203506

Insulated EarthYes
Kilowatt3.1 kW
Length (L.1)305 mm
Mount Hole Center - Center (O.1)127 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)10.5 mm
Mount Hole Diameter (C.2)10.5 mm
Mount Hole Diameter (C.3)10.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
Pinion at Rest (B)48 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeVALEO
Voltage12 V
Make Model Type Year
VOLVO PENTA Engine [AQD41]
VOLVO PENTA Engine [AQDA41] 01.1990-
VOLVO PENTA Engine [D40]
VOLVO PENTA Engine [KAD32P] 01.1997-
VOLVO PENTA Engine [KAD32P][KAD44P] 01.1997-
VOLVO PENTA Engine [KAD44PEDC] 01.1997-
VOLVO PENTA Engine [MD30] 01.1983-12.1986
VOLVO PENTA Engine [TAMD30] 01.1983-12.1986
VOLVO PENTA Engine [TAMD31] 01.1983-
VOLVO PENTA Engine [TAMD41] 01.1986-
VOLVO PENTA Engine [TD40] 01.1978-12.1983
VOLVO PENTA Engine [TMD30] 01.1983-12.1986
VOLVO PENTA Engine 2.0 [MD22L]
VOLVO PENTA Engine 2.4 [TAMD30] 01.1983-06.1986
VOLVO PENTA Engine 2.4 [TMD30] 01.1983-06.1986
6015155.1 8697 5015326 D9R144 220792 1359119 25-1420 331187 ND147 810.519.113.090 MAV4770 3803200 STR0010 20479551OE D9R116 20479551BN CST15155GS 35261420 810.519.113.500 101035V 6015155 101035 20550102 455537 22.1035 S3042 LRS01250 CS1035 810.519.113.311 EAA-121154 RNLD9R144 3803118 1367049 CGB-22780 STRW438 1542195 3803386 17316N 642282 1545417 3581774 CST15155AS 111047 LRS1250 859252 810.519.113.008 8EA737252-001 1516806R PRSW438 184202 188486 810.519.113.000 5001759 33629 8113901 STR54022 7701499545
101035 101035V 10783 10783K 10783V 111047 17316N 184202 20479551OE 20550102 22.1035 25-1420 33629 35261420 3581774 3803118 3803200 3803386 6015155 859252 8697 8EA737252-001 CGB-22780 CS1035 CST15155GS D11E167 D11E167T D9R116 D9R144 EAA-121154 LRS01250 LRS1250 MAV4770 ND147 RNLD9R144 S3042 STR54022 STRW438 220792
