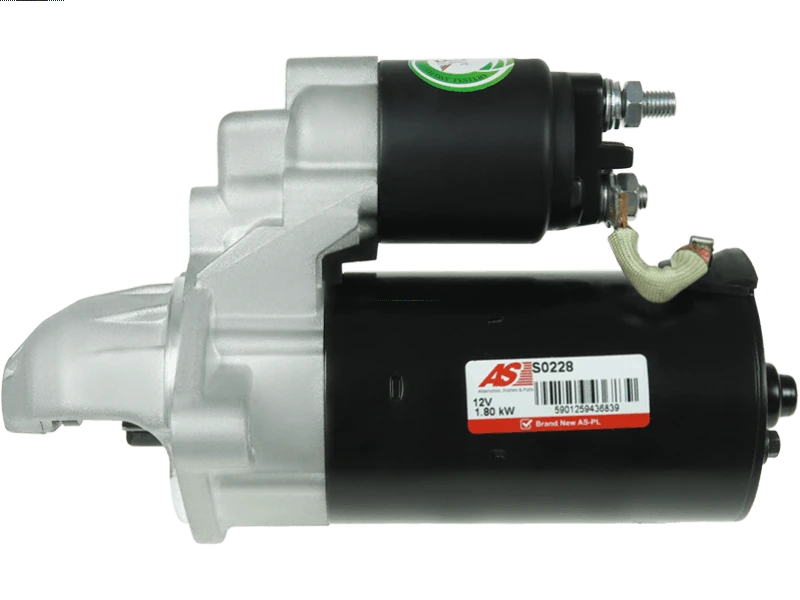

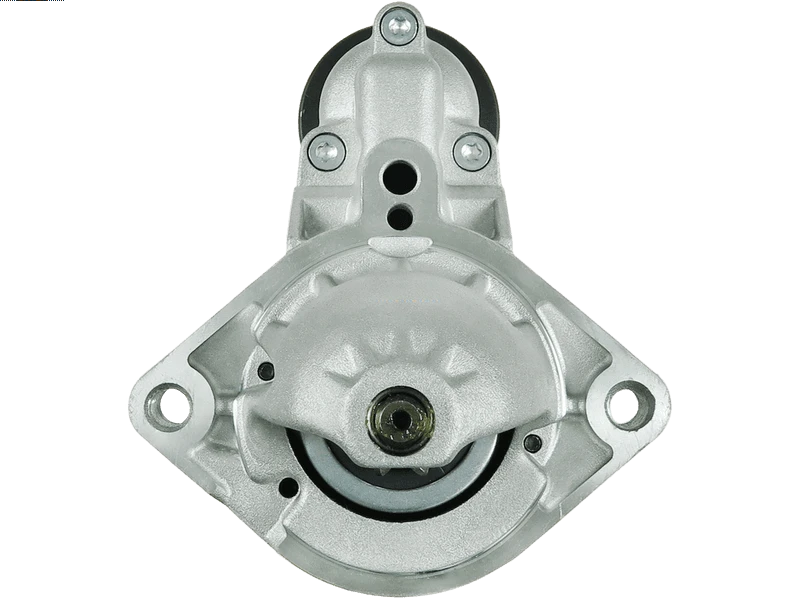

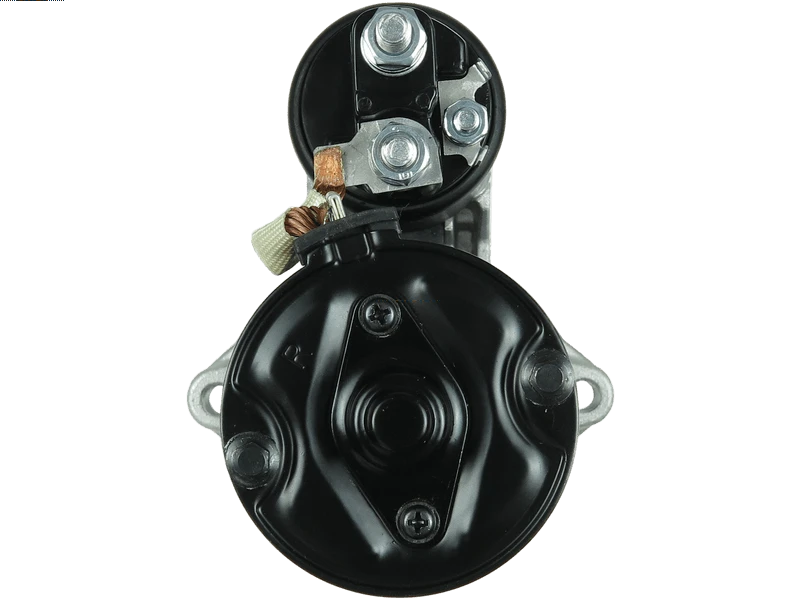

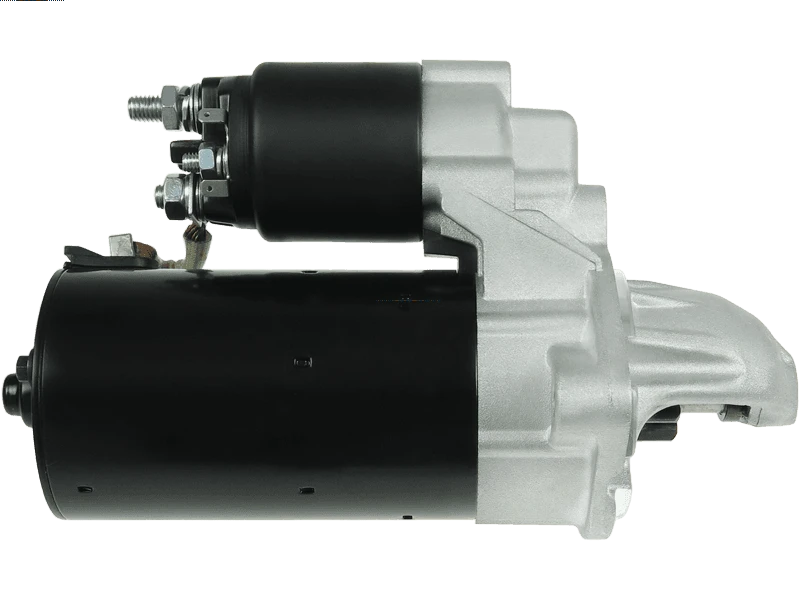

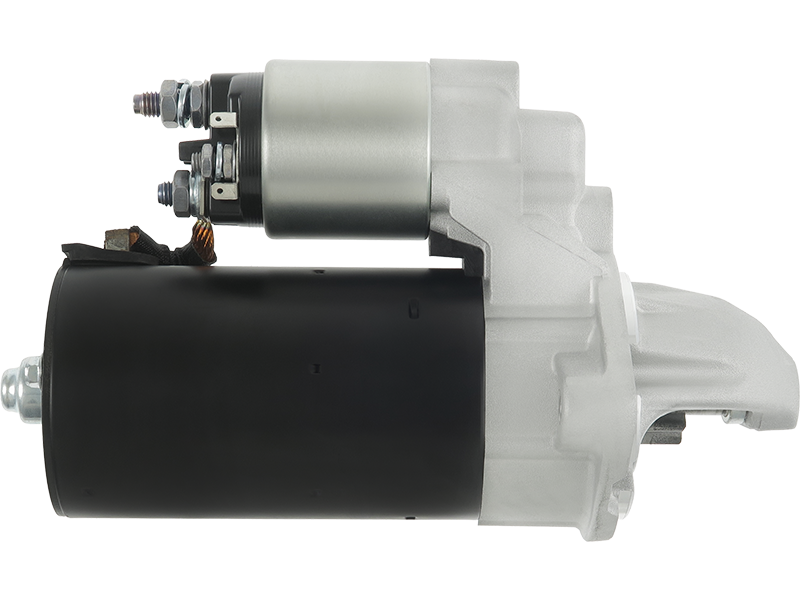

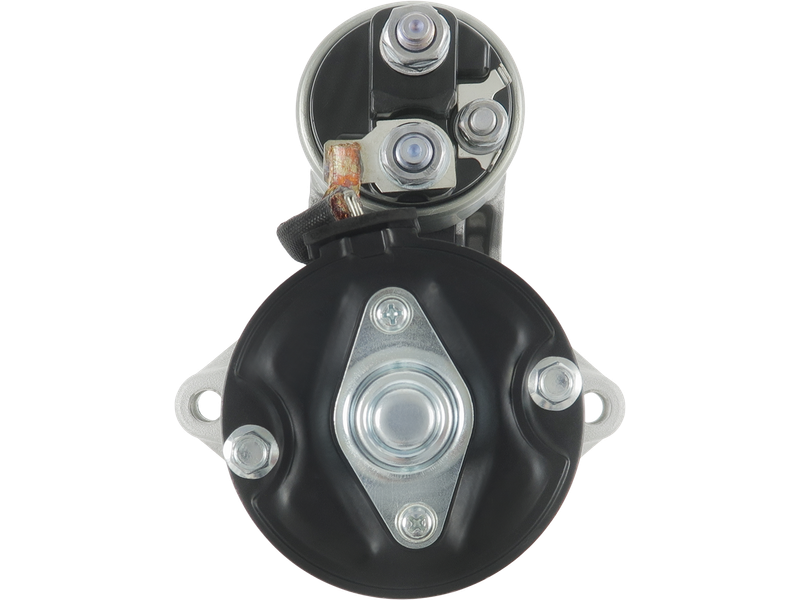

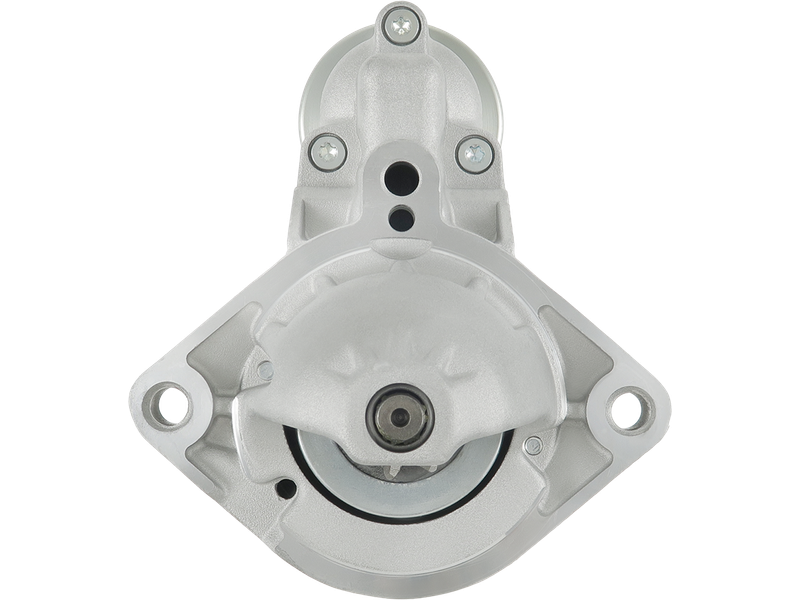

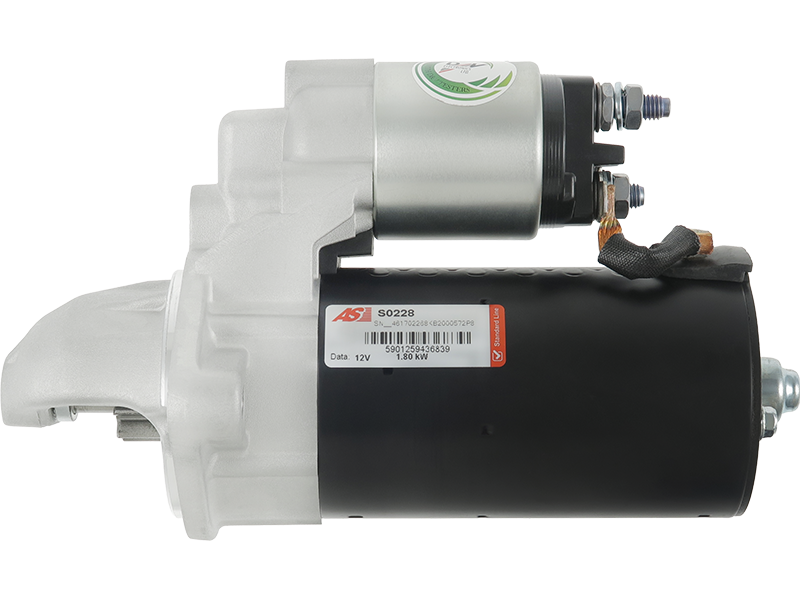

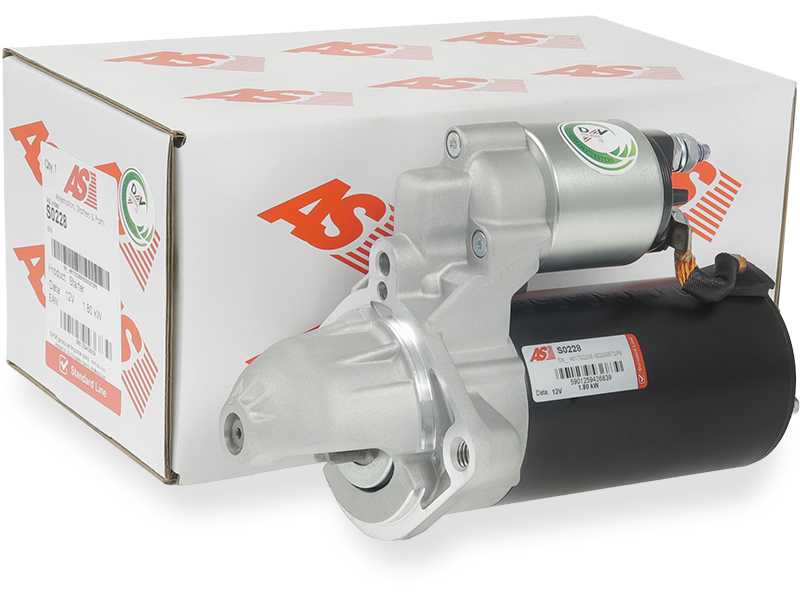

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Retail Price:
NZ$ 266.62 including GST
NZ$ 231.84 excluding GST
or four payments of $66.66
with
Learn More
each
S0228
5
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001115045Associated Numbers
0001115040 0001115041 0001115045 0001115046 0986021230 0986021237 101406 101406B 114091 12095 12417794952 12417796892 12417798035 12417798036 20401304BN 20401304OE 210.532.093 220694 25-3396 3189 32802N 42021230 6010403 7794952 7796892 88212767 8EA012527-951 8EA738258-491 91-15-7288 CS1406 CST10403 CST10403AS CST10403ES CST10403GS CST10403OS CST10403RS DRT1230 DT2340 EAA-121173 LRS02224 RAS42341 S0228 S1034B SG0844 SS593 STB1406 STR50551 16372 ASPLList BMW BOSCHList BOSCH CARGO CASCO CEVAM DELCO EAA121173 EAA EAI 253396 ELSTOCK ERA GHIBAUDI HC PARTS 8EA012527951 HELLA 8EA738258491 HERTH+BUSS KRAUF LUCAS POWERMAX PRESTOLITE PSH REAL SANDO SOVEREIGN WAI / TRANSPO 91157288 WILSON WOODAUTO Bosch ruil 11021230 EuroTec Cargo 1206466 PIC 210532093 Elstock 32802 Lester 32802R 4856SP Spidan Steyr 8021230F Friesen 8ea012527951 Hella A21230 ATL Remy F042S0H089 HCS1406 Lucas OSM11623 Optimum STM1095 Rolling Components STR1378sa Electrolog STRH089 Unipoint 701055 bxs0169 snb157 0001115045SEL +line 020554 Da Silva Exchange DAS 101626 Febi Bilstein 10439788 Alanko 10439810 106140 Farcom 12130306 AES 12130733 1986S00764 20554 Messmer 220694A 315043102 DRI 332269 Logistik Herth Buss 439788 439810 458770 Valeo Sando 63721406 Magneti Marelli 63721406010 726205 7798035 7798036 Fiat PowerMax 944280212300 AEY2224 Auto Electro AI80027 Ainde AS1099 Charge AS1099AC ASM1060 Apec HC-Parts Casco DEM501406 ADI DMS8740 DriveTec IR9637 Protech KTR421064186 KTR LRS2224 NSM1060 Napa (UK) RE83634N The NewLine RNL2123 RNL AS-PL S0228PR S131954 Short code S144552 S164254 SBE1111 Everkraft SBO1177 Quasar SEG0001115045 Wood SP4856 Sovereign ST01433 TMI STR1413SA WOOSTR50551Specifications
| Kilowatt | 1.8 kW |
| Length (L.1) | 234 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 118 2.0 | (1E81)[M47D20(204D4)] | 09.2004-09.2012 |
| BMW | 118 2.0 | (1E81)[N47D20A] | 09.2004-09.2012 |
| BMW | 118 2.0 | (1E81)[N47D20C] | 09.2004-09.2012 |
| BMW | 118 2.0 | (E87)[M47D20(204D4)] | 11.2003-09.2012 |
| BMW | 118 2.0 | (E87)[N47D20A] | 11.2003-09.2012 |
| BMW | 118 2.0 | (E87)[N47D20C] | 11.2003-09.2012 |
| BMW | 118 2.0 D | (E87)[M47D20(204D4)] | 06.2004-02.2007 |
| BMW | 118 2.0 D | (E87)[N47D20A] | 03.2007-06.2011 |
| BMW | 118 2.0 D | (E87)[N47D20C] | 03.2007-06.2011 |
| BMW | 120 2.0 | (1E81)[M47D20(204D4)] | 09.2006-09.2012 |
| BMW | 120 2.0 | (1E81)[N47D20A] | 09.2006-09.2012 |
| BMW | 120 2.0 | (1E81)[N47D20C] | 09.2006-09.2012 |
| BMW | 120 2.0 D | (E81)[N47D20A] | 03.2007-12.2011 |
| BMW | 120 2.0 D | (E81)[N47D20C] | 03.2007-12.2011 |
| BMW | 120 2.0 D | (E87)[M47D20(204D4)] | 06.2004-02.2007 |
| BMW | 120 2.0 D | (E87)[M47D20(204D4)] | 06.2004-06.2011 |
| BMW | 120 2.0 D | (E87)[N47D20A] | 03.2007-06.2011 |
| BMW | 120 2.0 D | (E87)[N47D20A] | 06.2004-06.2011 |
| BMW | 120 2.0 D | (E87)[N47D20C] | 03.2007-06.2011 |
| BMW | 318 2.0 | (E90)[M47N204D4] | 09.2005-12.2011 |
| BMW | 318 2.0 | (E91)[M47N204D4] | 09.2005- |
| BMW | 318 2.0 D | (E46)[M47D20(204D4)] | 03.2003-02.2005 |
| BMW | 318 2.0 D | (E90)[M47D20(204D4)] | 03.2005-08.2007 |
| BMW | 318 2.0 D | (E91)[M47D20(204D4)] | 09.2005-08.2007 |
| BMW | 320 2.0 | (E90)[M47D20(204D4)] | 01.2005-12.2011 |
| BMW | 320 2.0 | (E90)[M47D20(204D4)] | 09.2005-12.2011 |
| BMW | 320 2.0 | (E90)[N47D20C] | 01.2005-12.2011 |
| BMW | 320 2.0 | (E91)[M47D20(204D4)] | 09.2005- |
| BMW | 320 2.0 | (E91)[M47D20(204D4)] | 09.2005-09.2007 |
| BMW | 320 2.0 | (E91)[M47N204D5] | 09.2005-09.2007 |
| BMW | 320 2.0 | (E91)[N47D20A] | 09.2005-09.2007 |
| BMW | 320 2.0 | (E91)[N47D20C] | 09.2005-09.2007 |
| BMW | 320 2.0 cD | (E46)[M47D20(204D4)] | 02.2005-12.2007 |
| BMW | 320 2.0 D | (E90)[M47D20(204D4)] | 12.2004-09.2007 |
| BMW | 320 2.0 D | (E90)[M47D20(204D4)] | 12.2004-10.2011 |
| BMW | 320 2.0 D | (E90)[N47D20A] | 12.2004-10.2011 |
| BMW | 320 2.0 D | (E90)[N47D20C] | 12.2004-10.2011 |
| BMW | 320 2.0 D | (E91)[M47D20(204D4)] | 06.2005-06.2012 |
| BMW | 320 2.0 D | (E91)[M47D20(204D4)] | 12.2004-08.2007 |
| BMW | 320 2.0 D | (E91)[N47D20A] | 06.2005-06.2012 |
| BMW | 320 2.0 D | (E91)[N47D20C] | 06.2005-06.2012 |
| BMW | 325 3.0 | (E91)[M57D30(306D3)] | 09.2006- |
| BMW | 325 3.0 | (E92)[M57D30(306D3)] | 03.2007- |
| BMW | 325 3.0 | (E93)[M57D30(306D3)] | 01.2007-12.2009 |
| BMW | 325 3.0 | (E93)[N57D30(306D3)] | 03.2007- |
| BMW | 325 3.0 D | (E90)[M57D30(306D3)] | 09.2006-02.2010 |
| BMW | 325 3.0 D | (E91)[M57D30(306D3)] | 09.2006-06.2012 |
| BMW | 325 3.0 D | (E92)[M57D30(306D3)] | 02.2007-02.2010 |
| BMW | 325 3.0 D | (E93)[M57D30(306D3)] | 03.2007-12.2010 |
| BMW | 330 3.0 | (E90)[M57306D3] | 09.2005-12.2011 |
| BMW | 330 3.0 | (E90)[M57D30TU2] | 09.2005-12.2011 |
| BMW | 330 3.0 | (E91)[M57306D3] | 09.2005- |
| BMW | 330 3.0 | (E92)[M57306D3] | 09.2006- |
| BMW | 330 3.0 | (E92)[M57D30TU2] | 09.2006- |
| BMW | 330 3.0 | (E93)[N57D30(306D3)] | 03.2007- |
| BMW | 330 3.0 D | (E90)[M57D30(306D3)] | 09.2005-09.2008 |
| BMW | 330 3.0 D | (E90)[M57D30(306D3)] | 09.2005-12.2011 |
| BMW | 330 3.0 D | (E90)[N57D30A] | 09.2005-12.2011 |
| BMW | 330 3.0 D | (E91)[M57D30(306D3)] | 06.2005-05.2012 |
| BMW | 330 3.0 D | (E91)[M57D30(306D3)] | 12.2004-08.2008 |
| BMW | 330 3.0 D | (E91)[N57D30A] | 06.2005-05.2012 |
| BMW | 330 3.0 D | (E92)[M57D30(306D3)] | 03.2006-08.2008 |
| BMW | 330 3.0 D | (E93)[M57D30(306D3)] | 03.2007-12.2013 |
| BMW | 330 3.0 xD | (E90)[M57D30(306D3)] | 09.2005-08.2008 |
| BMW | 330 3.0 xD | (E91)[M57D30(306D3)] | 09.2005-06.2012 |
| BMW | 330 3.0 xD | (E92)[M57D30(306D3)] | 03.2006-08.2008 |
| BMW | 330 3.0 xDrive | (E90)[M57306D3] | 09.2005-12.2011 |
| BMW | 330 3.0 xDrive | (E90)[M57D30TU2] | 09.2005-12.2011 |
| BMW | 330 3.0 xDrive | (E92)[M57306D3] | 09.2006- |
| BMW | 330 3.0 xDrive | (E92)[M57D30TU2] | 09.2006- |
| BMW | 335 3.0 | (E90)[M57D30(306D5)] | 09.2006-12.2011 |
| BMW | 335 3.0 | (E91)[M57D30(306D5)] | 09.2006- |
| BMW | 335 3.0 | (E92)[M57D30(306D5)] | 09.2006- |
| BMW | 335 3.0 D | (E90)[M57D30(306D5)] | 09.2006-12.2011 |
| BMW | 335 3.0 D | (E91)[M57D30(306D5)] | 09.2006-06.2012 |
| BMW | 335 3.0 D | (E92)[M57D30(306D5)] | 03.2006-03.2013 |
| BMW | 520 2.0 | (E60)[M47D20(204D4)] | 07.2005- |
| BMW | 520 2.0 | (E60)[M47D20(204D4)] | 09.2005- |
| BMW | 520 2.0 | (E60)[N47D20A] | 07.2005- |
| BMW | 520 2.0 | (E60)[N47D20C] | 07.2005- |
| BMW | 520 2.0 | (E61)[M47D20(204D4)] | 07.2005- |
| BMW | 520 2.0 | (E61)[M47D20(204D4)] | 09.2005- |
| BMW | 520 2.0 | (E61)[N47D20A] | 07.2005- |
| BMW | 520 2.0 | (E61)[N47D20A] | 09.2005- |
| BMW | 520 2.0 | (E61)[N47D20C] | 07.2005- |
| BMW | 520 2.0 | (E61)[N47D20C] | 09.2005- |
| BMW | 520 2.0 D | (E60)[M47D20(204D4)] | 09.2005-02.2007 |
| BMW | 520 2.0 D | (E60)[M47D20(204D4)] | 09.2005-12.2009 |
| BMW | 520 2.0 D | (E60)[N47D20A] | 09.2005-12.2009 |
| BMW | 520 2.0 D | (E60)[N47D20C] | 09.2005-12.2009 |
| BMW | 520 2.0 D | (E61)[M47D20(204D4)] | 04.2005-05.2010 |
| BMW | 520 2.0 D | (E61)[M47D20(204D4)] | 09.2005-02.2007 |
| BMW | 520 2.0 D | (E61)[N47D20A] | 04.2005-05.2010 |
| BMW | 520 2.0 D | (E61)[N47D20C] | 04.2005-05.2010 |
| BMW | 525 3.0 | (E60)[M57306D3] | 01.2007- |
| BMW | 525 3.0 | (E61)[M57D30(306D3)] | 01.2007- |
| BMW | 525 3.0 D | (E60)[M57D30(306D3)] | 01.2007-03.2010 |
| BMW | 525 3.0 D | (E61)[M57D30(306D3)] | 03.2007-05.2010 |
| BMW | 525 3.0 D xDrive | (E60)[M57D30(306D3)] | 09.2008-12.2009 |
| BMW | 525 3.0 D xDrive | (E61)[M57D30(306D3)] | 09.2008-05.2010 |
| BMW | 525 3.0 xD | (E60)[M57D30(306D3)] | 09.2007-08.2008 |
| BMW | 525 3.0 xD | (E61)[M57D30(306D3)] | 09.2007-09.2008 |
| BMW | 525 3.0 xDrive | (E60)[M57306D3] | 01.2007- |
| BMW | 525 3.0 xDrive | (E60)[M57D30(306D3)] | 09.2008- |
| BMW | 525 3.0 xDrive | (E61)[M57D30(306D3)] | 09.2008- |
| BMW | 525 3.0 xDrive | (E61)[N57306D3] | 01.2007- |
| BMW | 530 3.0 | (E60)[M57306D3] | 07.2003- |
| BMW | 530 3.0 | (E60)[M57D30(306D3)] | 01.2007- |
| BMW | 530 3.0 | (E61)[M57306D3] | 07.2005- |
| BMW | 530 3.0 | (E61)[M57D30(306D3)] | 01.2007- |
| BMW | 530 3.0 | (E61)[M57D30(306D3)] | 11.2005- |
| BMW | 530 3.0 D | (E60)[M57D30(306D3)] | 02.2007-12.2009 |
| BMW | 530 3.0 D | (E60)[M57D30(306D3)] | 09.2005-03.2007 |
| BMW | 530 3.0 D | (E61)[M57D30(306D2)] | 03.2004-05.2010 |
| BMW | 530 3.0 D | (E61)[M57D30(306D3)] | 02.2005-02.2007 |
| BMW | 530 3.0 D | (E61)[M57D30(306D3)] | 02.2007-05.2010 |
| BMW | 530 3.0 D | (E61)[M57D30(306D3)] | 03.2004-05.2010 |
| BMW | 530 3.0 D xDrive | (E60)[M57D30(306D3)] | 09.2007-12.2009 |
| BMW | 530 3.0 D xDrive | (E61)[M57D30(306D3)] | 09.2007-05.2010 |
| BMW | 530 3.0 xD | (E60)[M57D30(306D3)] | 02.2005-02.2007 |
| BMW | 530 3.0 xD | (E60)[M57D30(306D3)] | 03.2007-08.2007 |
| BMW | 530 3.0 xD | (E61)[M57D30(306D3)] | 02.2005-02.2007 |
| BMW | 530 3.0 xD | (E61)[M57D30(306D3)] | 03.2007-08.2007 |
| BMW | 530 3.0 xDrive | (E60)[M57306D3] | 07.2005- |
| BMW | 530 3.0 xDrive | (E60)[M57D30(306D3)] | 01.2007- |
| BMW | 530 3.0 xDrive | (E60)[M57D30(306D3)] | 09.2008- |
| BMW | 530 3.0 xDrive | (E61)[M57306D3] | 01.2007- |
| BMW | 530 3.0 xDrive | (E61)[M57306D3] | 07.2005- |
| BMW | 530 3.0 xDrive | (E61)[M57D30(306D3)] | 09.2008- |
| BMW | 535 3.0 | (E60)[M57D30(306D5)] | 01.2007- |
| BMW | 535 3.0 | (E61)[M57D30(306D5)] | 01.2007- |
| BMW | 535 3.0 D | (E60)[M57D30(306D5)] | 01.2007-03.2010 |
| BMW | 535 3.0 D | (E61)[M57D30(306D5)] | 01.2007-12.2010 |
| BMW | 635 3.0 | (E63)[M57D30(306D5)] | 07.2007- |
| BMW | 635 3.0 | (E64)[M57D30(306D5)] | 07.2007- |
| BMW | 635 3.0 D | (E63)[M57D30(306D5)] | 07.2007-07.2010 |
| BMW | 635 3.0 D | (E64)[M57D30(306D5)] | 07.2007-07.2010 |
| BMW | 730 3.0 | (E66)[M57D30(306D3)] | 07.2005- |
| BMW | 730 3.0 | (E66)[N57N306D2] | 07.2005- |
| BMW | 730 3.0 D | (E65)[M57D30(306D2)] | 06.2002-02.2005 |
| BMW | 730 3.0 D | (E65)[M57D30(306D2)] | 09.2002-08.2003 |
| BMW | 730 3.0 D | (E65)[M57D30(306D2)] | 09.2003-08.2008 |
| BMW | 730 3.0 D | (E65)[M57D30(306D3)] | 09.2003-08.2008 |
| BMW | 730 3.0 D | (E66)[M57D30(306D2)] | 06.2002-02.2005 |
| BMW | 730 3.0 D | (E66)[M57D30(306D2)] | 09.2002-08.2003 |
| BMW | 730 3.0 D | (E66)[M57D30(306D2)] | 09.2003-08.2008 |
| BMW | 730 3.0 D | (E66)[M57D30(306D3)] | 09.2003-08.2008 |
| BMW | 730 3.0 D | (E67)[M57D30(306D2)] | 06.2002-02.2005 |
| BMW | 730 3.0 D | (E67)[M57D30(306D2)] | 09.2002-08.2003 |
| BMW | 730 3.0 D | (E67)[M57D30(306D2)] | 09.2003-08.2008 |
| BMW | 730 3.0 D | (E67)[M57D30(306D3)] | 09.2003-08.2008 |
| BMW | 730 3.0 lD | (E65)[M57D30(306D3)] | 07.2005-08.2008 |
| BMW | 730 3.0 lD | (E66)[M57D30(306D3)] | 07.2005-08.2008 |
| BMW | 730 3.0 lD | (E67)[M57D30(306D3)] | 07.2005-08.2008 |
| BMW | X3 3.0 | (E83)[M57D30(306D3)] | 01.2004- |
| BMW | X3 3.0 | (E83)[M57D30(306D3)] | 10.2004-07.2006 |
| BMW | X3 3.0 | (E83)[M57N2306D2] | 01.2004- |
| BMW | X3 3.0 D | (E83)[M57D30(306D2)] | 01.2004-08.2005 |
| BMW | X3 3.0 D | (E83)[M57D30(306D3)] | 09.2005-08.2008 |
| BMW | X3 3.0 sD | (E83)[M57D30(306D5)] | 09.2006-08.2008 |
| BMW | X3 3.0 sDrive | (E83)[M57D30(306D5)] | 09.2006- |
| BMW | X3 3.0 xDrive | (E83)[M57D30(306D3)] | 09.2008- |
| BMW | X3 3.0 xDrive | (E83)[M57D30(306D5)] | 09.2008- |
| BMW | X3 3.0 xDrive 30 D | (E83)[M57D30(306D3)] | 09.2008-08.2010 |
| BMW | X3 3.0 xDrive 35 D | (E83)[M57D30(306D5)] | 09.2008-08.2011 |
| BMW | X5 3.0 | (E70)[M57306D3] | 02.2007-09.2008 |
| BMW | X5 3.0 | (E70)[M57D30(306D3)] | 02.2007-09.2008 |
| BMW | X5 3.0 4x4 | (E70)[M57D30(306D3)] | 02.2007-09.2008 |
| BMW | X5 3.0 D | (E70)[M57D30(306D3)] | 02.2007-09.2008 |
| BMW | X5 3.0 D | (E70)[M57D30(306D3)] | 12.2006-09.2008 |
| BMW | X5 3.0 sD | (E70)[M57D30(306D5)] | 10.2007-09.2008 |
| BMW | X5 3.0 sDrive | (E70)[M57D30(306D5)] | 09.2007-02.2009 |
| BMW | X5 3.0 xDrive | (E70)[M57N306D5] | 09.2008-06.2013 |
| BMW | X5 3.0 xDrive | (E70)[N57D30A] | 09.2008-06.2013 |
| BMW | X5 3.0 xDrive 30 D | (E70)[M57D30(306D3)] | 10.2008-03.2010 |
| BMW | X5 3.0 xDrive 30 D | (E70)[M57D30(306D3)] | 10.2008-07.2013 |
| BMW | X5 3.0 xDrive 30 D | (E70)[N57D30A] | 10.2008-07.2013 |
| BMW | X5 3.0 xDrive 35 D | (E70)[M57D30(306D5)] | 10.2008-07.2013 |
| BMW | X6 3.0 xDrive | (E71)[M57D30(306D5)] | 05.2008- |
| BMW | X6 3.0 xDrive | (E71)[M57D30(306D5)] | 09.2008- |
| BMW | X6 3.0 xDrive | (E71)[M57N2306D3] | 05.2008- |
| BMW | X6 3.0 xDrive | (E71)[N57D30A] | 09.2008- |
| BMW | X6 3.0 xDrive | (E72)[M57D30(306D5)] | 05.2008- |
| BMW | X6 3.0 xDrive 30 D | (E71)[M57D30(306D3)] | 04.2008-03.2010 |
| BMW | X6 3.0 xDrive 30 D | (E71)[N57D30A] | 04.2010-07.2014 |
| BMW | X6 3.0 xDrive 30 D | (E72)[M57D30(306D3)] | 04.2008-03.2010 |
| BMW | X6 3.0 xDrive 30 D | (E72)[N57D30A] | 04.2010-07.2014 |
| BMW | X6 3.0 xDrive 35 D | (E71)[M57D30(306D5)] | 01.2008-03.2010 |
| BMW | X6 3.0 xDrive 35 D | (E72)[M57D30(306D5)] | 01.2008-03.2010 |
| CITROEN | C5 2.0 HDi 165 | [RHH(DW10CTED4)] | 04.2009-07.2016 |
Reference Information
RAS42341 BST2272 3115150 A21230 DRT1230 1986S00764 6010403.1 6010403.0 210.532.093.211 25-3396CT RE83634N 20401304OE 210.532.093.280 CS1406 095ST21 S512431 V20-12-15045 S0228 910050EGT 12417794952 7794952 EZ0061 MQS1406 25-3396 88212767 AC-CBS1406 SBO403 QRS1680 12095 AZMT-53-010-1356 42021230 201059 RNL2123 101406 AI-80027 0986021230 F032114091 0986021237 CMA-621173 STB1406 S1034B 8021230 8EA012527-951 S-50551 91-15-7288 3115149 CST10403GS 315043102 SBO403A SG0844 LRS2224 STR1413 STRW010 1638118980 WG2196583 ST01433 WG2226365 220694A 10010403OV 11021230 332269 101406S 101626 210.532.093.018 BM9026 10439788 2S0045 210.532.093.010 4721240 8550506083 120-10180 ASM1060 13690 SKSTR-0330044 SEG0001115045 NPANSM1060 6.7027.1 063521150450 5010087 LRS02224 12417798035 7796892 12417796892 12417798036 20401304BN CST10403AS MSN2152 3189 220694 DT2340 32802N 5010087G 10010403AV STM1095 458770 063721406010 IR9637 114091 TT16401 STR50551 WOOSTR50551 106232 460459 S12BH0090A2 0001115045 0001115046 0001115040 0001115041 943214061010 210.532.093.461 WG2013258 WG2013257 LES0387 STX200213 101406B STX200213R S12BH0090Video/Publications
S0228View your shopping basket or Browse other items in Starter Motors.
