S0193 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0193
Price: 259.29 NZD
Availability: InStock

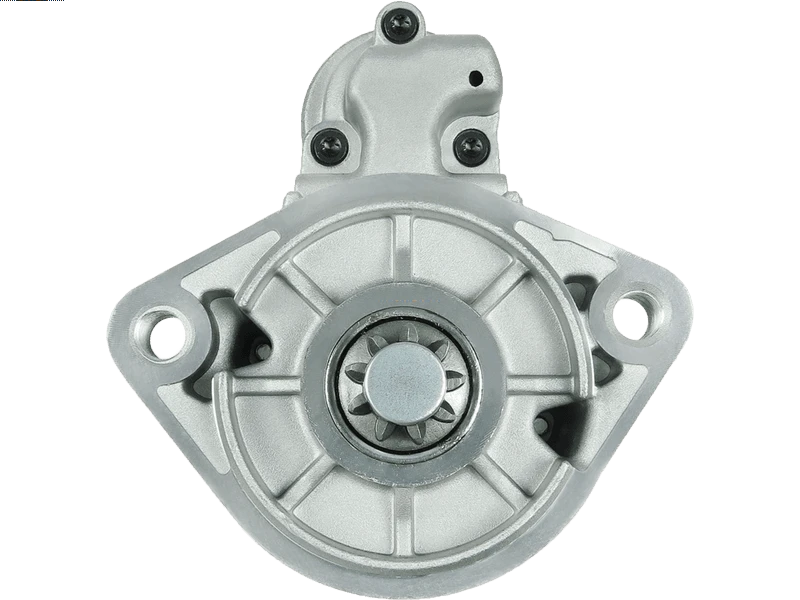

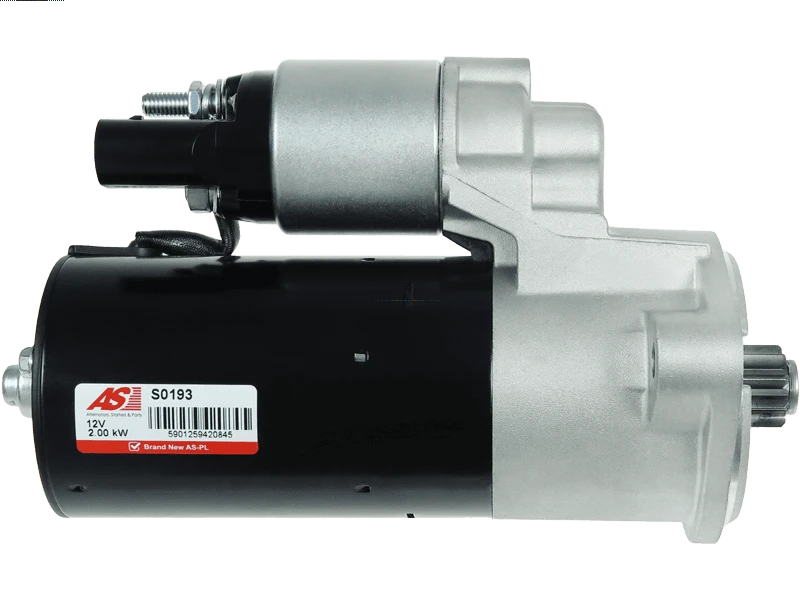

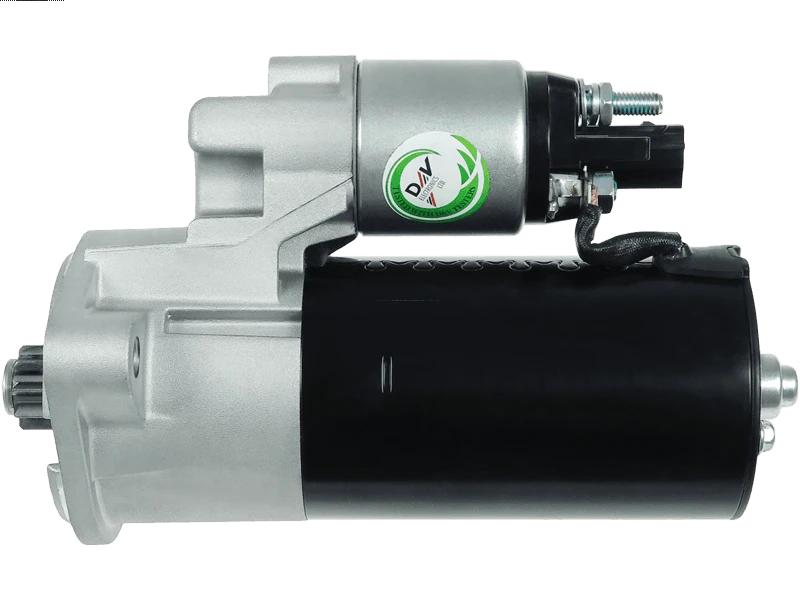

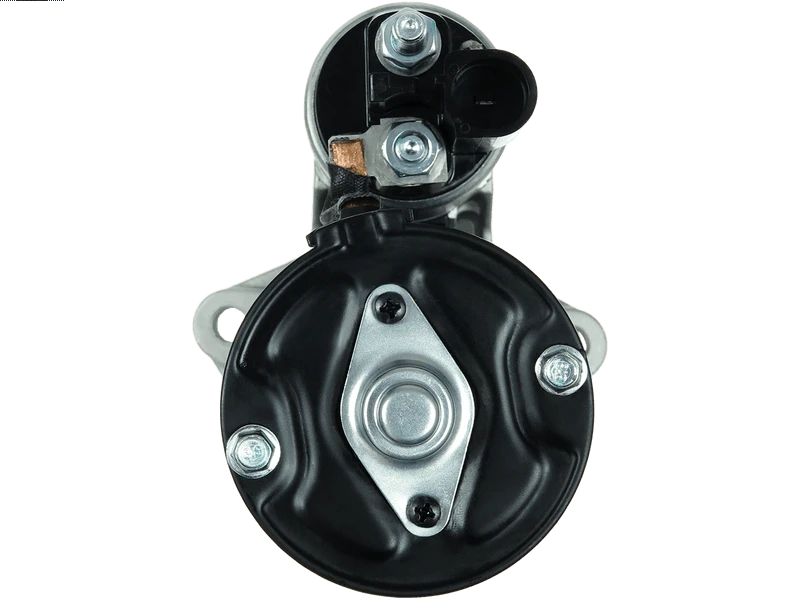

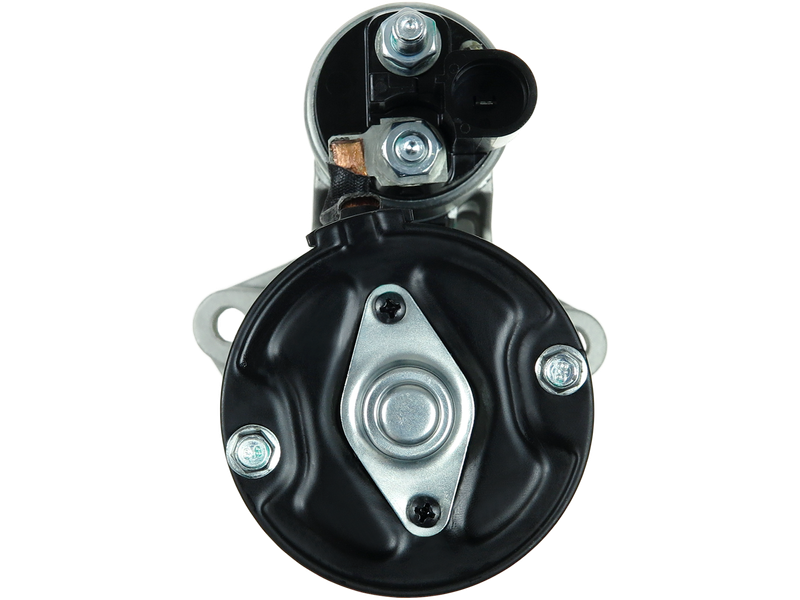

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 259.29 including GST

NZ$ 225.47 excluding GST

UOM:

each

Product Code:

S0193

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
< Critical Notes >
Add Your Number

0001125055 0001125056 076911023A 076911023AX 0986021630 101435 101435B 114317 12135 20401093BN 20401093OE 220684 25-3499 300.578.092 3061 33220N 6010390 6461510101 88213012 8EA011611-261 8EA738258-691 943214351010 A6461510101 AEY2327 CS1435 CST10390 CST10390AS CST10390ES CST10390GS CST10390OS CST10390RS DRT1630 DT2740 EAA-121145 LRS02327 LRS2327 MSRC1435 RAS42741 S0193 SG0687 STB1435 STR50414

S0193 ASPLList
AEY2327 AUTOELECTRO
0001125055 BOSCHList
0001125056 BOSCHList
0986021630 BOSCH
114317 CARGO
CST10390 CASCO
CST10390AS CASCO
CST10390GS CASCO
3061 CEVAM
DRT1630 DELCO
DT2740 DELCO
RAS42741 DELCO
EAA121145 EAA
12135 EAI
253499 ELSTOCK
220684 ERA
SG0687 GHIBAUDI
CS1435 HC PARTS
8EA011611261 HELLA
8EA738258691 HELLA
STB1435 KRAUF
LRS02327 LUCAS
LRS2327 LUCAS
943214351010 MAGNETI MARELLI
MSRC1435 MAGNETI MARELLI
6461510101 MERCEDES
A6461510101 MERCEDES
88213012 POWERMAX
300.578.092 PSH
20401093BN REAL
20401093OE REAL
6010390 SANDO
076911023A VW
076911023AX VW
33220N WAI / TRANSPO
STR50414 WOODAUTO
Mercedes 6461510101
Volkswagen 076911023A
0001125055 Bosch
0001125056 Bosch
01125055
076911023A VW
0986021630 Bosch ruil
11021630 EuroTec
114317 Cargo
1205098 PIC
12135 EAI
253499 Elstock
300578092 PSH
3061 CEVAM
33220 Lester
33220N WAI
4889SP Spidan
6461510101 Mercedes Benz
8021630F Friesen
921630 EDR
A21630 ATL
CS1435 HC
DRT1630 Remy
F042S0H108 Bosch
HCS1435 HC
LRS02327 Lucas
OSM11683 Optimum
STR1372sa Electrolog
STRH108 Unipoint
snb147 bxs9055 701310
438231 VALEOList
458395 VALEOList
458397 VALEOList
TS24E13 VALEOList
076911023B VW
076911023BX VW
076911023B VW
076911023BX VW
079911023B VW
11090232 EuroTec
115841 Cargo
195814 Valeo
254335 Elstock
300918112 PSH
438231 Valeo
458395 Valeo
8080396F Friesen
910823 EDR
DRS0823 Remy
LRS02663 Lucas
TS24E13 Valeo

Kilowatt	2 kW
Length (L.1)	236 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
VW	Crafter 30-35 2.5 TDi	[BJJ]	04.2006-
VW	Crafter 30-35 2.5 TDi	[BJK]	04.2006-
VW	Crafter 30-35 2.5 TDi	[BJL]	04.2006-
VW	Crafter 30-35 2.5 TDi	[BJM]	04.2006-
VW	Crafter 30-35 2.5 TDi	[CEBA]	04.2006-
VW	Crafter 30-35 2.5 TDi	[CEBB]	04.2006-
VW	Crafter 30-35 2.5 TDi	[CECA]	04.2006-
VW	Crafter 30-50 2.5 TDi	[BJJ]	04.2006-
VW	Crafter 30-50 2.5 TDi	[BJK]	04.2006-
VW	Crafter 30-50 2.5 TDi	[BJL]	04.2006-
VW	Crafter 30-50 2.5 TDi	[BJM]	04.2006-
VW	Crafter 30-50 2.5 TDi	[CEBA]	04.2006-
VW	Crafter 30-50 2.5 TDi	[CEBB]	04.2006-
VW	Crafter 30-50 2.5 TDi	[CECA]	04.2006-

DRT1630 0001125056 1125055 1125056 CST10390RS S0193 0001125055 MSRC1435 000986021630 HVW6461510101 ANM23850X STR50414 332075 CST10390 6.46151E+11 8EA738258-691 STR1372 RAS42741 101435B LRS2327 5010204 EAA-121145 986021630 STRL177 CST10390AS 6461510101 076911023A 20401093OE S12BH0073 A646151010180 CST10390ES 101435 88213012 CS1435 AEY2327 20401093BN 3061 DT2740 6010390 33220N RNL2163 9.43214E+11 A6461510101 12135 076911023AX S12BH0073A2 CST10390OS STA0472R 220684 114317 8EA011611-261 25-3499 STB1435 SG0687 300.578.092 STM1342 CST10390GS LRS02327

NOT FOR START/STOP
