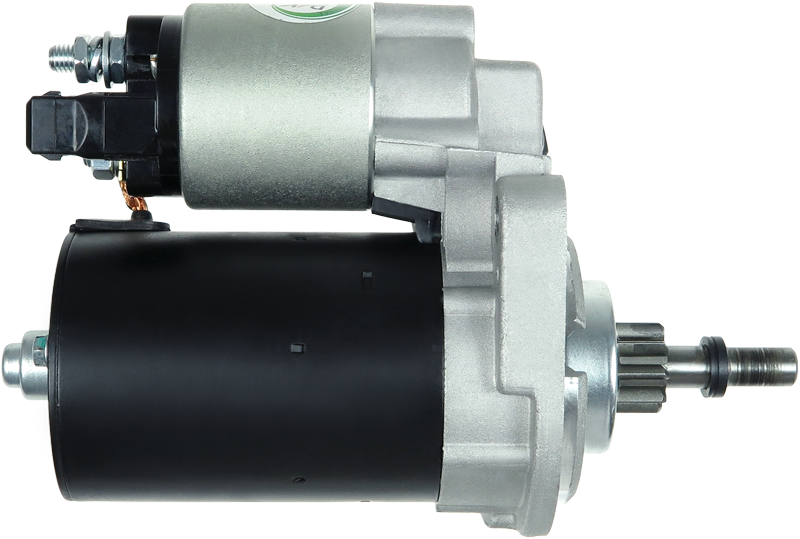

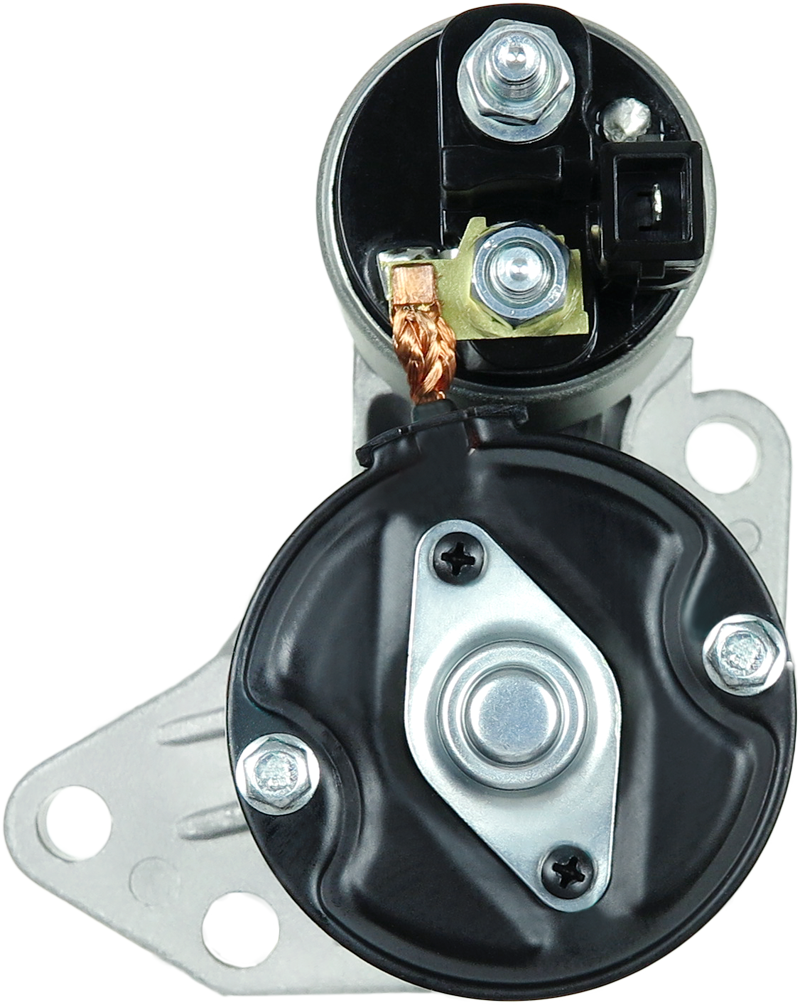

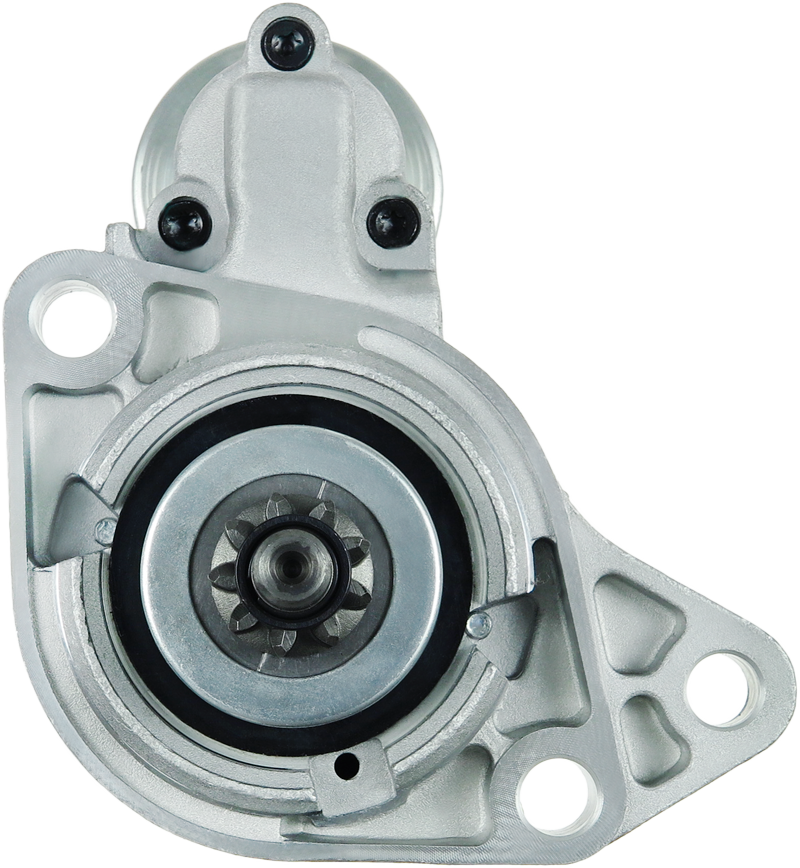

S0062 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 218.65 including GST

NZ$ 190.13 excluding GST
each
S0062
1
Purchase Qty:

0001107020 0001107021 0001107052 0001107053 0001112038 0001112039 0001113011 020911023A 020911023L 020911023M 020911023MX 063521120380 063720618010 063720796010 0986016290 10116 10294 10618 111748 11260 17415N 20500785 220190 25-1355 260-11103 300.513.093 3340 35259250 42016290 432605 433266 436019 6.0012.9 6010107 66925182 66925266 66925343 726030 88213273 8EA011350-421 8EA011610-481 8EA012526-761 8EA012526-762 8EA726054-001 8EA730188-001 943251326010 943251671010 944280126000 944280126050 944280162900 AES7185 CS618 CST10107 CST10107AS CST10107ES CST10107GS CST10107OS CST10107RS DRS6290 DS7400 LRS00785 M1209A M1209H MQS618 MRS16290 MSN2089 MSR905 RNL1629 S-6156 S0062 S1022B S1043B S1212V SG0074 SG0660 SS287 STB0618 AS-PLList AUTOELECTRO BOSCHList CARGO CASCO CEVAM DELCO DIXIE EAI ELSTOCK ERA GHIBAUDI HC PARTS HELLA HERTH+BUSS IKA KRAUF LUCAS MAGNETI MARELLI POWERMAX PRESTOLITE PRESTOLITEList PSH RNL SANDO SOVEREIGN VALEO VWList VW WAI / TRANSPO bxs0111 snb7020 Bosch 01107020 Andre Niermann 020911023AX 020911023J 020911023N 055911023L ruil 11012600 EuroTec 11016290 11130854 Mahle Cargo 11839 120190A PIC 120285 1449SP Spidan 17415 Lester 17415R 1HS911023A 1HS911023B 21534BO 251355 Elstock 300513093 30801 3580 438205 Valeo 442004 455548 600811 66925211 Prestolite 726026 8016290F Friesen 8EA011350421 Hella 9000692050 91156983 Wilson 91156983N 916290 EDR A16290 ATL AZE2563 D7RS291 Remy EL25211 F032US0021 F042002017 F042S02017 HCS618 IS0854 Lucas LRS785 MS371 OSM10624 Optimum R000694029 S27001 Hitachi STM584 Rolling Components STR1018sa Electrolog STR2019 Unipoint AES7181 0001108005 0001108006 0001108094 0001108095 0001108127 0986016230 BOSCH B001111024 111523 DRS6230 EAA-121473 EAA 11722 25-2165 26-2165 7668314 FIAT 76683140 7727534 8016230 FRIESEN CS615 8EA730185-001 11.130.724 ISKRA LETRIKA 22.0615 LAUBER LRS01780 88213144 20401701BN REAL 20401701OE SS023 SS825 055911023G 055911023GX 17222N 17222R STR50227 WOODAUTO 0001106001 0001106002 0001107007 0001107008 0001114005 0001114006 0001114012 0001208416 0001208417 0001208418 0001208419 020911023 037911023 055911023E 055911023F 055911023J 055911023JX 055911023M 055911023MX 055911023R 055911028M 0986012590 0986018200 11012330 11012590 11016230 11018200 11130724 11399 120190B 1236 1236SP 1449 17222 176911023A 261134 300501093 436022 499027 66925125 66925202 8018200F 9000692015 9000692070 9000695006 91156921 943251663 Magneti Marelli A12600 A16230 A18200 A90190 BCA911023A CS1557 CS294 D9E140 DRS2590 DRS2600 EL25125 EL25182 EL25202 F042002014 F042S02014 HCS294 IS0724 LRS558 MS316 MSR489 ND141 S27005 SC907 STR0061sa STR1008sa STR1017sa STR2016 STR4038sa STR4097sa STR6082sa 0001112003 0001112004 0001211257 0001211258 055911023FX 055911023H 055911023HX 055911023K 055911023KX 0986012598 0986012600 11.139.418 111059 17134N 20401121BN 20401331BN 22.0294 26-1035 26-1134 42012590 42017830 6010121 6010133 8012590 8213273 9000042057 AES5160 AZD3520 B001110116 B001181007 CST10121AS CST10133AS EAA-121237 IS9412 LRS00558 LRS00560 S0072 S114-553 S114-553A SS814 SS828 STR50104 VS231 VS254 ARROWHEAD 0001108004 7716197 LESTER 17134 MAHLE AZE2538 OTHER OEMS 5473761 VOLKSWAGEN
Kilowatt1.1 kW
Length (L.1)218 mm
Mount Hole Center - Center (O.1)123 mm
Mount Hole Center - Center (O.2)32 mm
Mount Hole Center - Center (O.3)111 mm
Mount Hole Diameter (C.1)12.5 mm
Mount Hole Diameter (C.2)12 mm
Mount Hole Diameter (C.3)12.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
Pinion at Rest (B)32 mm
RotationACW
Spigot Diameter (A)76 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
AUDI A3 1.6 [AEH] 09.1996-05.2003
AUDI A3 1.6 [AKL] 09.1996-05.2003
AUDI A3 1.8 [AGN] 09.1996-05.2003
AUDI A3 1.8 Turbo 20V [AGU] 12.1996-05.2003
AUDI A3 1.8 Turbo Quattro [AGU] 08.1997-08.2000
FORD Galaxy 2.0 i [NSE] 11.1995-
SEAT Alhambra 1.8 Turbo 20V [AJH] 10.1997-
SEAT Alhambra 2.0 i [ADY] 04.1996-
SEAT Cordoba 1.6 i [1F] 05.1994-06.1999
SEAT Cordoba 1.6 i [1F] 05.1997-06.1999
SEAT Cordoba 1.6 i [ABU] 02.1993-06.1999
SEAT Cordoba 1.6 i [AFT] 07.1996-06.1999
SEAT Cordoba 1.6 i [AFT] 09.1996-06.1999
SEAT Cordoba 1.8 i [ABS] 02.1993-06.1999
SEAT Cordoba 1.8 i [ACC] 02.1993-06.1999
SEAT Cordoba 1.8 i [ADZ] 02.1993-06.1999
SEAT Cordoba 1.8 i 16V [ADL] 10.1993-08.1996
SEAT Cordoba 2.0 i [2E] 02.1993-06.1999
SEAT Cordoba 2.0 i [AGG] 02.1993-06.1999
SEAT Ibiza 1.6 i [1F] 03.1993-08.1999
SEAT Ibiza 1.6 i [1F] 09.1994-06.1999
SEAT Ibiza 1.6 i [AFT] 04.1996-08.1999
SEAT Ibiza 1.8 i [ABS] 03.1993-08.1999
SEAT Ibiza 1.8 i [ADZ] 03.1993-08.1999
SEAT Ibiza 1.8 i 16V [ADL] 11.1993-08.1996
SEAT Ibiza 2.0 i [2E] 03.1993-08.1999
SEAT Inca 1.6 i [1F] 11.1995-05.1998
SEAT Toledo 1.6 i [1F] 05.1991-03.1999
SEAT Toledo 1.6 i [ABN] 05.1991-03.1999
SEAT Toledo 1.6 i [AFT] 11.1996-03.1999
SEAT Toledo 1.8 16V [KR] 05.1991-03.1999
SEAT Toledo 1.8 16V [PL] 05.1991-03.1999
SEAT Toledo 1.8 i [ABS] 11.1993-12.1996
SEAT Toledo 1.8 i [ADZ] 11.1993-12.1996
SEAT Toledo 1.8 i [RP] 05.1991-12.1996
SEAT Toledo 2.0 i [2E] 05.1991-03.1999
SEAT Toledo 2.0 i [AGG] 05.1991-03.1996
SKODA Octavia 1.6 [AEE] 07.1998-
SKODA Octavia 1.6 [AEE] 09.1996-09.2000
SKODA Octavia 1.6 [AEH] 02.1997-
SKODA Octavia 1.6 [AEH] 07.1998-
SKODA Octavia 1.6 [AKL] 02.1997-
SKODA Octavia 1.8 [AGN] 09.1996-
SKODA Octavia 1.8 Turbo [AGU] 07.1998-
SKODA Octavia 1.9 SDi [AQM] 06.1997-
SKODA Octavia 1.9 SDi [AQM] 07.1998-12.2003
SKODA Octavia 1.9 TDi [AGR] 07.1998-
SKODA Octavia 1.9 TDi [AGR] 09.1996-
SKODA Octavia 1.9 TDi [AHF] 07.1998-
SKODA Octavia 1.9 TDi [AHF] 08.1997-09.2004
SKODA Octavia 1.9 TDi [ALH] 07.1998-
SKODA Octavia 1.9 TDi [ALH] 09.1996-
SKODA Octavia 1.9 TDi [ASV] 07.1998-
SKODA Octavia 1.9 TDi 4x4 [AGR] 11.1999-09.2000
VW Cabrio 2.0 [ABA] 01.1995-01.1995
VW Cabrio 2.0 [ABA] 01.1995-01.1996
VW Cabrio 2.0 [ABA] 01.1996-01.1997
VW Cabrio 2.0 [ABA] 01.1998-01.1998
VW Cabrio 2.0 [ABA] 01.1999-01.2000
VW Cabrio 2.0 [ABA] 01.2001-01.2001
VW Cabrio 2.0 Highline [ABA] 01.1997-01.1997
VW Caddy 1.6 [1F] 11.1995-05.1997
VW Caddy 1.6 [1F] 11.1995-09.2000
VW Corrado 1.8 16V [KR] 04.1989-07.1992
VW Corrado 1.8 G60 [PG] 09.1988-09.1993
VW Corrado 2.0 i [ADY] 10.1994-07.1995
VW Corrado 2.0 i 16V [9A] 08.1991-12.1995
VW Golf I 1.8 GTi [JJ] 08.1982-12.1983
VW Golf II 1.6 [ABN] 08.1983-08.1991
VW Golf II 1.8 [RP] 08.1987-10.1991
VW Golf III 1.4 [ABD] 07.1993-04.1999
VW Golf III 1.4 [AEX] 07.1993-04.1999
VW Golf III 1.4 [AEX] 10.1991-08.1997
VW Golf III 1.4 [AEX] 11.1991-08.1997
VW Golf III 1.4 [APQ] 07.1993-04.1999
VW Golf III 1.6 [AEA] 07.1993-12.1997
VW Golf III 1.6 [AEA] 09.1992-08.1997
VW Golf III 1.6 [AEE] 07.1993-12.1997
VW Golf III 1.6 [AEE] 09.1992-08.1997
VW Golf III 1.6 [AEK] 07.1994-04.1999
VW Golf III 1.6 [AEK] 07.1995-08.1997
VW Golf III 1.6 [AEK] 10.1994-05.1998
VW Golf III 1.6 [AFT] 07.1994-04.1999
VW Golf III 1.6 [AFT] 07.1995-08.1997
VW Golf III 1.6 [AFT] 10.1994-05.1998
VW Golf III 1.6 [AKS] 07.1994-04.1999
VW Golf III 1.6 [AKS] 07.1995-08.1997
VW Golf III 1.8 [AAM] 07.1993-04.1999
VW Golf III 1.8 [AAM] 07.1993-05.1998
VW Golf III 1.8 [AAM] 11.1991-08.1997
VW Golf III 1.8 [ABS] 07.1993-04.1999
VW Golf III 1.8 [ABS] 11.1991-08.1997
VW Golf III 1.8 [ACC] 11.1991-08.1997
VW Golf III 1.8 [ADZ] 07.1993-04.1999
VW Golf III 1.8 [ADZ] 07.1993-05.1998
VW Golf III 1.8 [ADZ] 11.1991-08.1997
VW Golf III 2.0 [2E] 07.1993-04.1999
VW Golf III 2.0 [2E] 07.1993-05.1998
VW Golf III 2.0 [ABA] 01.1998-01.1998
VW Golf III 2.0 [ADY] 07.1993-04.1999
VW Golf III 2.0 [ADY] 07.1993-05.1998
VW Golf III 2.0 [AGG] 07.1993-04.1999
VW Golf III 2.0 [AGG] 07.1993-05.1998
VW Golf III 2.0 [AKR] 07.1993-04.1999
VW Golf III 2.0 [AKR] 07.1993-05.1998
VW Golf III 2.0 Celebration Edit [ABA] 01.1995-01.1995
VW Golf III 2.0 City [ABA] 01.1995-01.1995
VW Golf III 2.0 GL [ABA] 01.1993-01.1993
VW Golf III 2.0 GL [ABA] 01.1994-01.1995
VW Golf III 2.0 GL [ABA] 01.1995-01.1995
VW Golf III 2.0 GL [ABA] 01.1995-01.1997
VW Golf III 2.0 GL [ABA] 01.1999-01.1999
VW Golf III 2.0 GL [AEG] 01.1999-01.1999
VW Golf III 2.0 GLS [AEG] 01.1999-01.1999
VW Golf III 2.0 GTi [2E] 11.1991-08.1997
VW Golf III 2.0 GTi [ABA] 01.1993-01.1993
VW Golf III 2.0 GTi [ABA] 01.1994-01.1994
VW Golf III 2.0 GTi [ABA] 01.1995-01.1995
VW Golf III 2.0 GTi [ABA] 01.1996-01.1997
VW Golf III 2.0 GTi [ABA] 01.1998-01.1998
VW Golf III 2.0 GTi [ABA] 01.1999-01.1999
VW Golf III 2.0 GTi [ABA] 11.1991-08.1997
VW Golf III 2.0 GTi [ADY] 11.1991-08.1997
VW Golf III 2.0 GTi [AGG] 11.1991-08.1997
VW Golf III 2.0 GTi [AKR] 11.1991-08.1997
VW Golf III 2.0 GTi 16V [ABF] 08.1992-08.1997
VW Golf III 2.0 JAZZ [ABA] 01.1997-01.1997
VW Golf III 2.0 K2 [ABA] 01.1997-01.1997
VW Golf III 2.0 K2 01.1998-01.1998
VW Golf III 2.0 Sport [ABA] 01.1995-01.1995
VW Golf III 2.0 Trek [ABA] 01.1997-01.1997
VW Golf IV 1.8 [AGN] 08.1997-06.2005
VW Jetta 2.0 Celebration Edit [ABA] 01.1995-01.1995
VW Jetta 2.0 City [ABA] 01.1995-01.1995
VW Jetta 2.0 GL [ABA] 01.1994-01.1994
VW Jetta 2.0 GL [ABA] 01.1994-01.1995
VW Jetta 2.0 GL [ABA] 01.1996-
VW Jetta 2.0 GL [ABA] 01.1996-01.1996
VW Jetta 2.0 GL [ABA] 01.1997-
VW Jetta 2.0 GL [ABA] 01.1998-01.1998
VW Jetta 2.0 GL [ABA] 01.1999-01.1999
VW Jetta 2.0 GLS [ABA] 01.1994-01.1994
VW Jetta 2.0 GLS [ABA] 01.1994-01.1995
VW Jetta 2.0 GLS [ABA] 01.1996-01.1997
VW Jetta 2.0 GLS [ABA] 01.1998-01.1998
VW Jetta 2.0 GLS [ABA] 01.1999-01.1999
VW Jetta 2.0 GT [ABA] 01.1997-01.1997
VW Jetta 2.0 GT [ABA] 01.1998-01.1998
VW Jetta 2.0 JAZZ [ABA] 01.1997-01.1997
VW Jetta 2.0 K2 [ABA] 01.1998-01.1998
VW Jetta 2.0 Trek [ABA] 01.1996-01.1996
VW Jetta 2.0 Trek II [ABA] 01.1997-01.1997
VW Jetta 2.0 Wolfsburg Edition [ABA] 01.1996-01.1996
VW Passat 1.6 [AEK] 07.1994-12.1995
VW Passat 1.6 [AEK] 10.1994-08.1996
VW Passat 1.6 [AFT] 07.1994-12.1995
VW Passat 1.6 [AFT] 10.1994-08.1996
VW Passat 1.8 [AAM] 08.1990-05.1997
VW Passat 1.8 [AAM] 08.1990-08.1996
VW Passat 1.8 [ABS] 02.1988-05.1997
VW Passat 1.8 [ABS] 02.1988-08.1996
VW Passat 1.8 [ADZ] 02.1988-05.1997
VW Passat 1.8 [ADZ] 02.1988-08.1996
VW Passat 1.8 16V [KR] 04.1988-12.1989
VW Passat 2.0 [2E] 02.1990-05.1997
VW Passat 2.0 [2E] 02.1990-08.1996
VW Passat 2.0 [ADY] 02.1990-05.1997
VW Passat 2.0 [ADY] 02.1990-08.1996
VW Passat 2.0 [AGG] 02.1990-05.1997
VW Passat 2.0 [AGG] 02.1990-08.1996
VW Passat 2.0 16V [9A] 08.1988-09.1993
VW Passat 2.0 16V [ABF] 01.1994-05.1997
VW Passat 2.0 16V [ABF] 01.1994-08.1996
VW Passat 2.0 16V GT [9A] 08.1988-09.1993
VW Passat 2.0 CL [9A] 01.1992-01.1992
VW Passat 2.0 GLS [ABA] 01.1996-01.1996
VW Polo 1.6 [1F] 11.1995-09.1997
VW Polo 1.6 [AEH] 05.1997-09.2001
VW Polo 1.6 [AFT] 05.1997-09.2001
VW Polo 1.6 [AFT] 12.1995-08.1999
VW Polo 1.6 [AKL] 05.1997-09.2001
VW Polo 1.6 [APF] 05.1997-09.2001
VW Polo 1.6 [AUR] 05.1997-09.2001
VW Polo 2.0 [ADC] 08.1999-09.2001
VW Sharan 1.8 Turbo 20V [AJH] 09.1997-
VW Sharan 2.0 [ADY] 09.1995-
VW Vento 1.4 [AEX] 11.1991-09.1998
VW Vento 1.6 [ABU] 09.1992-09.1998
VW Vento 1.6 [AEA] 09.1992-09.1998
VW Vento 1.6 [AEE] 09.1992-09.1998
VW Vento 1.6 [AEK] 10.1994-09.1998
VW Vento 1.6 [AFT] 10.1994-09.1998
VW Vento 1.8 [AAM] 11.1991-09.1998
VW Vento 1.8 [ABS] 11.1991-09.1998
VW Vento 1.8 [ADZ] 11.1991-09.1998
VW Vento 2.0 [2E] 11.1991-09.1998
VW Vento 2.0 [ADY] 11.1991-09.1998
VW Vento 2.0 [AGG] 11.1991-09.1998
VW Vento 2.0 [AKR] 11.1991-09.1998

S0027 - Permanent Magnet Gear Reduction (PMGR) version 1.1kW  ** Doesnt use bush in gearbox for support**

S0006 - Permanent Magnet Gear Reduction (PMGR) version 1.8kW ** Doesnt use bush in gearbox for support**

GEU4539 068911023AX 9.43252E+11 CST10107AS 390874 MSR905 55911023 GEU4492 STRS019 GEU4491 MRS16290 CST10107RS DRS6290 DS7400 055911023JX 20911023MX 8EA726054-001 AUU1237 8EA011350-421 S0062 AUU1233 55911023KX 0001107053 0001107052 1107052 1107053 5010280 ANM18510X 111748 020911023LX S12BH0244A2 220190 SG0660 20911023LX 42016290 1029411 055911023KX D6RA M1209A 20911023 726030 55911023JX 20500785 020911023MX GNU4538 MQS618 GNU4539 055911023HX AES7185 66925266 GNU4491 GNU4492 10116 020911023A M1209H 020911023J 020911023M 000986016290 020911023L MAV3020 MSN2089 330770 020911023NX 020911023N 55911023X 25-1355 220097 63521120380 S1022B 55911023K 88213273 63720618010 8EA012526-761 55911023J 8EA012526-762 55911023H 1107021 11260 55911023HX 055911023F 55911023M 10294 55911023L 0001107021 0001107020 ADU9357 ADU9356 1107020 CST10107ES SG0074 10618 STB0618 LRS785 55911023F 17415N CST10107 RNL1629 260-11103 20911023M STR1708 20911023L 9.4428E+11 68911023AX 300.513.093 1113011 CST10107OS 9.43251E+11 CS618 6010107 020911023AX 436019 66925182 63720796010 8EA011610-481 35259250 986016290 3340 1112038 1112039 0001112039 CST10107GS 0001112038 175911023B 0001113011 S1043B STR0061 66925343 5840203 8EA730188-001 STA0032R S-6156 6.0012.9 0175911023B 055911023X SS287 432605 MAV121330 MAV121210 55911023MX LRS00785 GXE4539 GXE4538 1HS911023A STR00364 1HS911023B 055911023H 055911023J 055911023K 433266 055911023L 055911023M 055911023MX
0001107020 0001107021 0001107052 0001107053 0001112038 0001112039 0001113011 020911023A 020911023L 020911023M 020911023MX 063521120380 063720618010 063720796010 0986016290 10116 10294 10618 111748 11260 17415N 20500785 220190 25-1355 260-11103 300.513.093 3340 35259250 42016290 432605 433266 436019 6.0012.9 6010107 66925182 66925266 66925343 726030 88213273 8EA011350-421 8EA011610-481 8EA012526-761 8EA012526-762 8EA726054-001 8EA730188-001 943251326010 943251671010 944280126000 944280126050 944280162900 AES7185 CS618 CST10107 CST10107AS CST10107ES CST10107GS CST10107OS CST10107RS D6RA DRS6290 DS7400 LRS00785 LRS785 M1209A M1209H MAV121210 MAV121330 MAV3020 MQS618 MRS16290 MSN2089 MSR905 RNL1629 S-6156 S0062 S1022B S1043B SG0074 SG0660 SS287 STB0618 STRS019 220097
