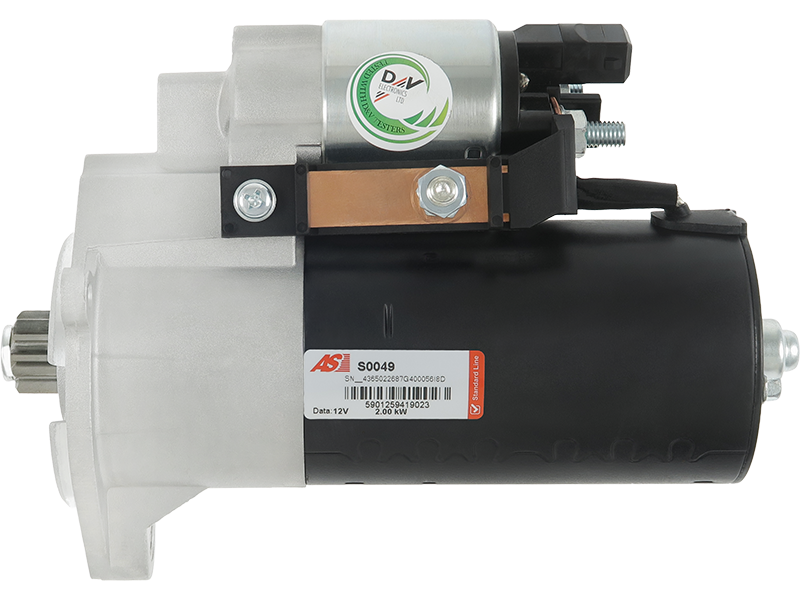

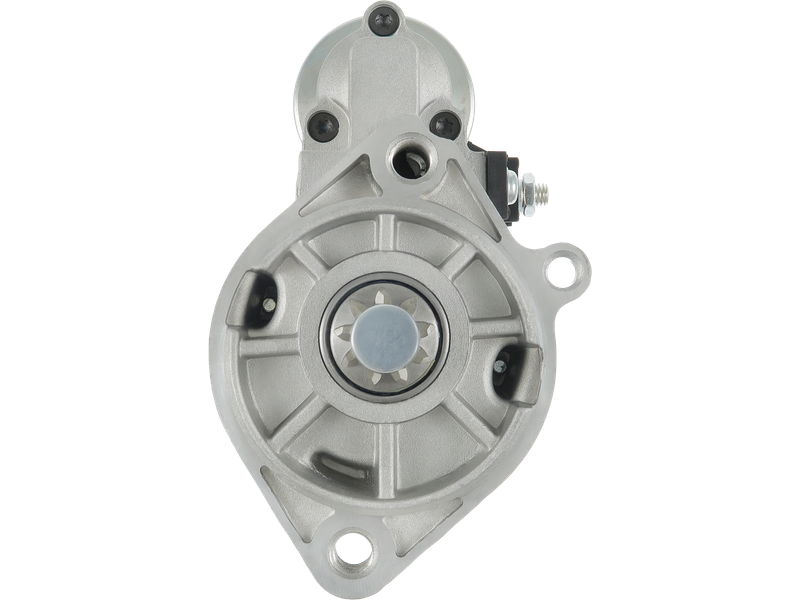

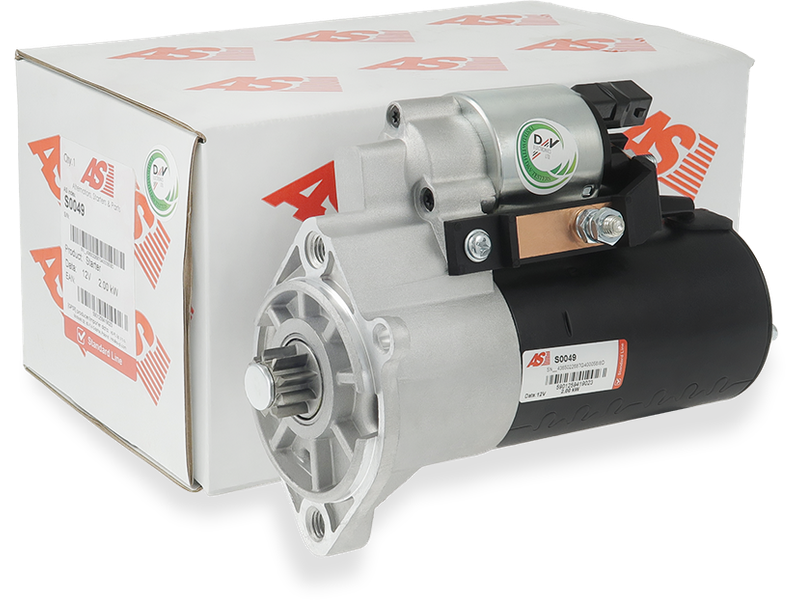

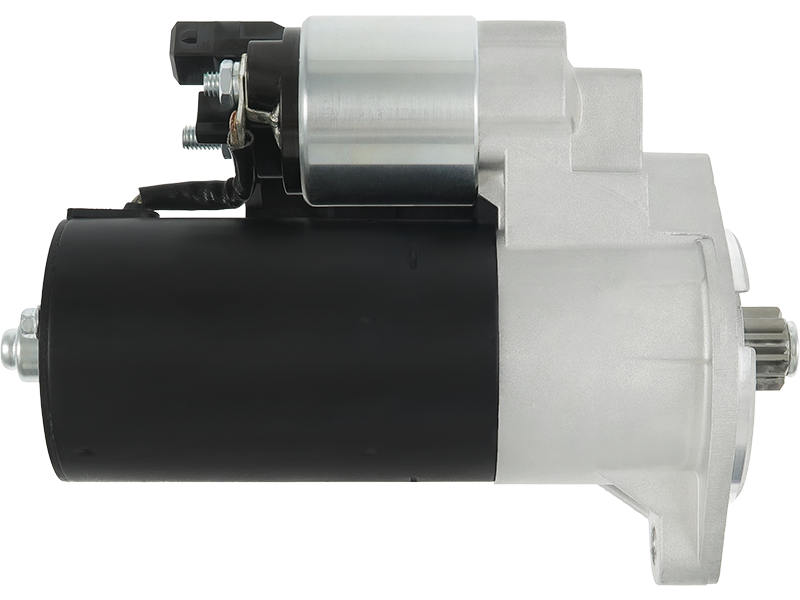

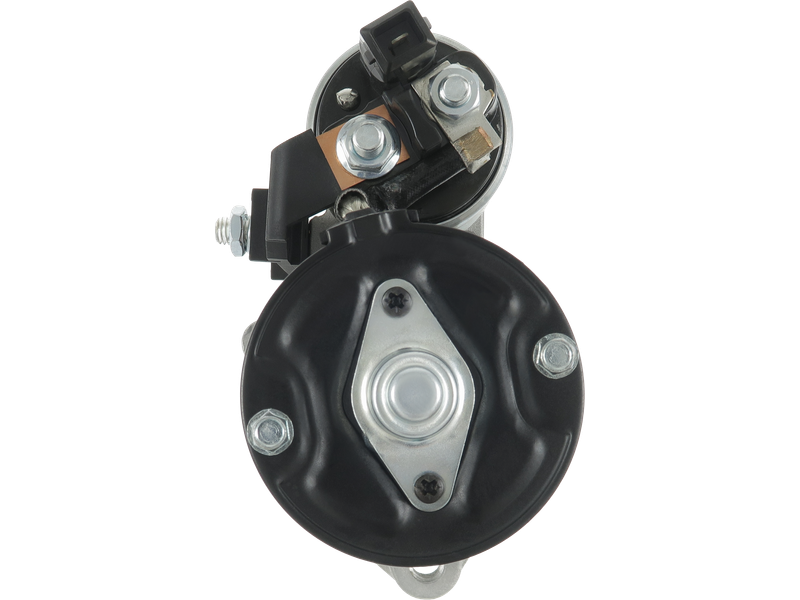

S0049 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0049
Price: 255.14 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 255.14 including GST

NZ$ 221.86 excluding GST

UOM:

each

Product Code:

S0049

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Alternatives >>>
Reference Information
Video/Publications
< Critical Notes >
Add Your Number

0001125501 0001125502 0001125511 0001125512 069911023E 069911023L 0986018380 101165 112221 11886 20401182BN 20401182OE 20401182RC 20513047 22.1165 22.1165M 25-2270 3024 32389N 42018380 458495 6010281 8018380 88212166 8EA737680-001 AEU1165 B001126081 CS1165 CST10281AS CST10281GS CST10281RS DRS8380 EAA-121128 LRS01389 RNL1838 S0049 SS619 STR50070

S0049 ASPLList
AEU1165 AUTOELECTRO
0001125501 BOSCHList
0001125502 BOSCHList
0001125511 BOSCHList
0001125512 BOSCHList
0986018380 BOSCH
B001126081 BOSCHList
112221 CARGO
CST10281AS CASCO
CST10281GS CASCO
CST10281RS CASCO
3024 CEVAM
DRS8380 DELCO
EAA121128 EAA
11886 EAI
252270 ELSTOCK
8018380 FRIESEN
CS1165 HC PARTS
8EA737680001 HELLA
42018380 HERTH+BUSS
22.1165 LAUBER
22.1165M LAUBER
LRS01389 LUCAS
88212166 POWERMAX
20513047 PRESTOLITE
20401182BN REAL
20401182OE REAL
20401182RC REAL
RNL1838 RNL
6010281 SANDO
SS619 SOVEREIGN
458495 VALEO
069911023E VW
069911023L VW
32389N WAI / TRANSPO
STR50070 WOODAUTO
0001125501 Bosch
0001125502 Bosch
0001125511 Bosch
0001125512 Bosch
069911023E VW
069911023L VW
0986018380 Bosch ruil
0986018381 Bosch ruil
11018380 EuroTec
112221 Cargo
1125501
11888 EAI
120423 PIC
12130148 AES
231177 Cargo
252270 Elstock
300529092 PSH
3024 CEVAM
32389 Lester
32389N WAI
32389R WAI
458495 Valeo
4603SP Spidan
8018380F Friesen
918380 EDR
A18380 ATL
B001126016 Bosch
CS1165 HC
DRS8380 Remy
DRS8380N Remy
F042S0H039 Bosch
HCS1165 HC
LRS01389 Lucas
OSM11001 Optimum
STM588 Rolling Components
STRH039 Unipoint

AEU1115 AUTOELECTRO
0001125503 BOSCHList
0001125504 BOSCHList
0001125513 BOSCHList
0001125514 BOSCHList
112014 CARGO
CST10555AS CASCO
DRS3809 DELCO
EAA121617 EAA
11888 EAI
252492 ELSTOCK
CS1115 HC PARTS
8EA737567001 HELLA
42018380 HERTH+BUSS
22.1115 LAUBER
LRS01519 LUCAS
88212360 POWERMAX
20513055 PRESTOLITE
20401555BN REAL
6010555 SANDO
SS617 SOVEREIGN
069911023H VW
069911023K VW
32555N WAI / TRANSPO
STR50178 WOODAUTO
0001125503 Bosch
0001125504 Bosch
0001125513 Bosch
0001125514 Bosch
069611023H VW
069911023H VW
069911023K VW
0986023800 Bosch ruil
11090034 EuroTec
11886 EAI
120424 PIC
252492 Elstock
300536092 PSH
3024 CEVAM
32555 Lester
32555N WAI
4573SP Spidan
8018380F Friesen
A18383 ATL
CS1115 HC
DRS3809 Remy
HCS1115 HC
LRS01519 Lucas
STM624 Rolling Components
snb5507 0001125517

Kilowatt	2 kW
Length (L.1)	235 mm
Mount Hole Center - Center (O.1)	49 mm
Mount Hole Center - Center (O.2)	92 mm
Mount Hole Center - Center (O.3)	105 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
VW	LT 28-35 2.5 TDi	[AHD]	05.1996-05.1999
VW	LT 28-35 2.5 TDi	[ANJ]	05.1999-07.2006
VW	LT 28-35 2.5 TDi	[APA]	05.1999-
VW	LT 28-35 2.5 TDi	[AVR]	05.1999-
VW	LT 28-35 2.5 TDi	[BBE]	05.2001-
VW	LT 28-35 2.5 TDi	[BBF]	05.2001-
VW	LT 40-55 2.5 TDi	[AHD]	05.1996-05.1999
VW	LT 40-55 2.5 TDi	[ANJ]	05.1999-
VW	LT 40-55 2.5 TDi	[APA]	05.1999-04.2001
VW	LT 40-55 2.5 TDi	[AVR]	05.1999-
VW	LT 40-55 2.5 TDi	[BBE]	05.2001-
VW	LT 40-55 2.5 TDi	[BBF]	05.2001-

S0192 - Has 1 untheaded hole, The bottom hole is unthreaded.

000986018380 6010281.1 6010281.2 STM588 300.529.092.210 300.529.092.010 LRS01389 8EA737680-001 CST10281GS 25-2270 22.1165M 20513047 1516674R CGB-52270 069911023LX STR10178 MSRC1165 22.1165 S12BH0785A2 101165 CST10281RS 300.529.092.280 986018380 9.4428E+11 MQS1165 CS1165 000B001126081 1125501 069911023E 1125502 MRS18380 069911023L PRSL231 RNL1838 331317 88212166 B001126081 SS619 MAV122810 3024 8EA012527-741 20401182OE 220581 ANM10600X 458495 42018380 STA0118R 0001125501 1125511 CST10281AS 1125512 0001125502 11886 20401182BN LRS1389 32389N STR50070 AEU1165 EAA-121128 6010281 S0049 9.43212E+11 300.529.092.212 63721165010 STRL231 300.529.092.018 112221 DRS8380 0001125511 0001125512 20401182RC 8018380

** May come with main battery feed connection on the side of the starter, This is removeable if you require it.**

** May come without main battery feed connection, you may need to reuse your original one.**
