Associated Numbers
1042104550 2706050350 dxa551 658458 anj217 arj241 UD01158A ASPL 1042103460 DENSO List
14864
2706050330 TOYOTA 11087R WAI / TRANSPO ALT30455 WOODAUTO UD01164A CAL40320 CASCO 12455 DELCO 94743 1042103440 1042103441 9664219344 A80037 DIXIE EAA222269 EAA 2706050320 270605032084 13983R 90295666 WILSON ALT30438 40052115 40052366 JANNCO 40052115R 40052168R Arrowhead AND0392 VND0392 Bosch AL3357X Denso 1042104510 2100512 Lester 11198 13983 Remy Light Duty Toyota 2706050360 Wilson 90295637 J N 40052168 AND0290 AL3327X 1042103380 2100537 13994 PIC Picture ID 2905150 270600F040 90295568 1042103442 1259701ND 195962130 104210-3440 104210-3441 20132023BN 2040320 27060-50320 27060-50320-84 554064RI 90-29-5666 9664219-344 A-80037 CAL40320AS CAL40320ES CAL40320GS CAL40320OS CAL40320RS EAA-222269 0986CN0050 ruil 0986CR0050 0986UR0050 1042103030 show 1042103031 1042103032 1042103033 12060954 EuroTec 195959130 PSH 2040243 Sando 2706050280 270605028084 286687 Elstock 2905099 5351551302 DRI 90295540 A8971 Dixie AEK3577 Auto Electro AL3319N (USA) AL3319X ALT30459 Wood DRA1007 J5112135 Herth Buss LRA03577 Lucas RNL1042103030 RNL RNL1042103031 RNL1042103032 WOOALT30459 334-1512 Newman Reman Service Europe 0-986-UN0-050 0-986-UR0-050 104210-303 104210-3030 104210-3031 104210-3032 104210-3033 9964219-303 Parts 210-0508 9664219-303 IAT A13992 13992 NAPA 213-9486 290-5099 12304 New 94789 27060-50280 27060-50280-84 ACDelco AIM AT-00284R AND0302 BBB Industries Electric Ltd A-8971 Hollander 60806 Industry J&N 400-52314R 400-52539R MPA Advantage N13992 Romaine 13992N 36-13992 TYC 2-13992 Voltux V2-13992 1-2941-01ND Whatcom 24706 90-29-5540
Specifications

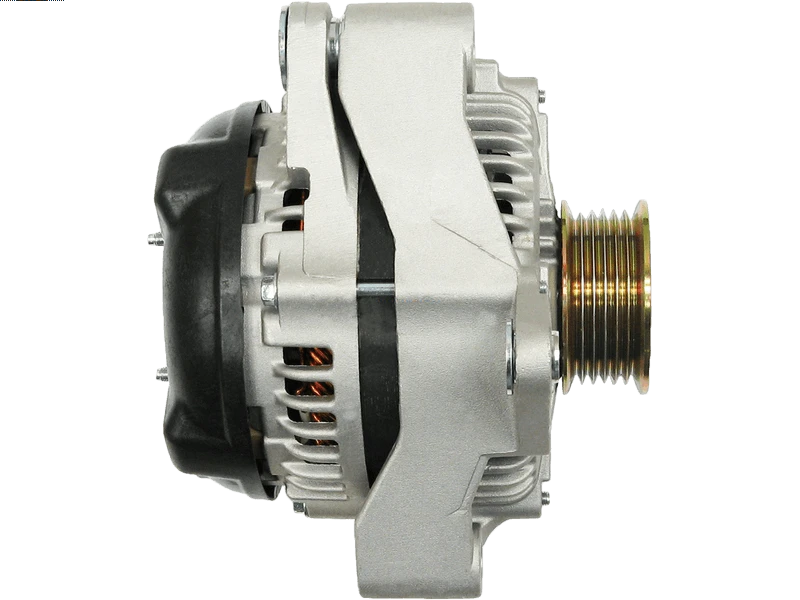

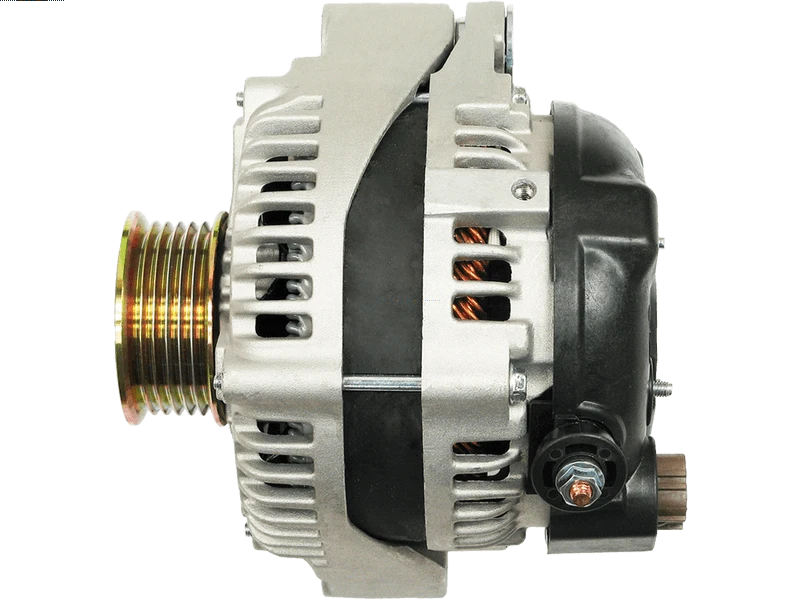

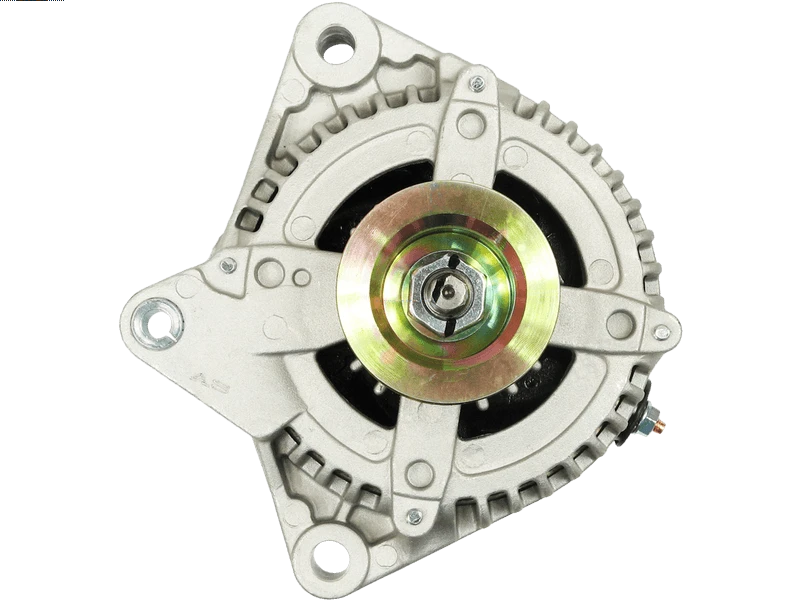

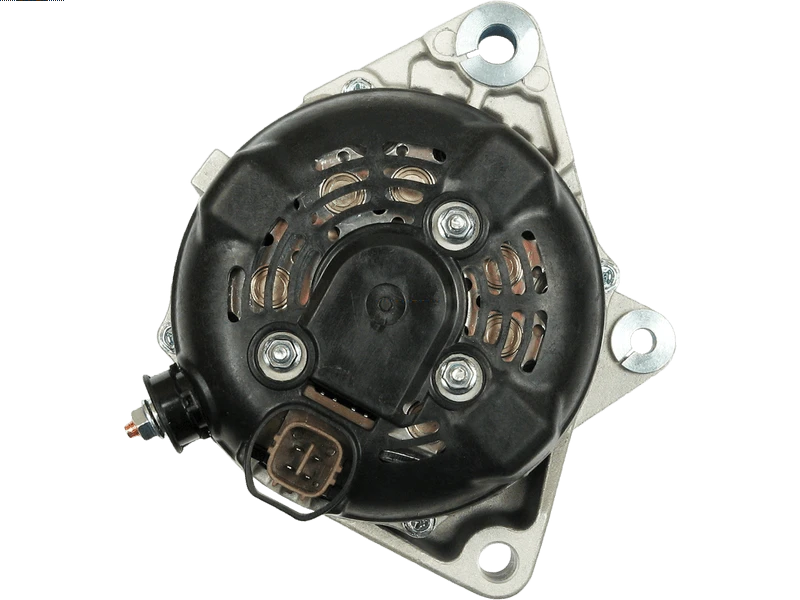

THIS IS A 4 PIN ALTERNATOR
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 59 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Grooves | 6 qty |
| Length (L.1) | 161 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 57 mm |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LEXUS | GX 470 4.7 | 01.2003-12.2007 | |
| LEXUS | GX 470 4.7 | 01.2003-12.2009 | |
| LEXUS | LX 470 4.7 | 01.2006-12.2007 | |
| TOYOTA | 4 Runner 4.7 | [2UZFE] | 01.2003-12.2009 |
| TOYOTA | 4 Runner 4.7 | 01.2003-12.2006 | |
| TOYOTA | Land Cruiser 4.7 | [2UZFE] | 01.2006-12.2007 |
| TOYOTA | Sequoia 4.7 | [2UZFE] | 01.2003-12.2009 |
| TOYOTA | Tundra 4.7 | [2UZFE] | 01.2003-12.2009 |
Reference Information
94743 CAL40320 27060-50320-84 90-29-5666 2040320 13983R 9664219-344 CAL40320RS CAL40320OS ALT30438 CAL40320ES EAA-222269 27060-50320 554064RI 270600F040 104210-3440 104210-3441 CAL40320GS ALT6377 12455 20132023BN A-80037 CAL40320AS UD01164AVideo/Publications
104210-3440 104210-3441 12455 13983R 20132023BN 2040320 27060-50320 27060-50320-84 554064RI 90-29-5666 94743 9664219-344 A-80037 ALT30438 CAL40320 CAL40320AS CAL40320ES CAL40320GS CAL40320OS CAL40320RS EAA-222269 UD01164AAdd Your Number
