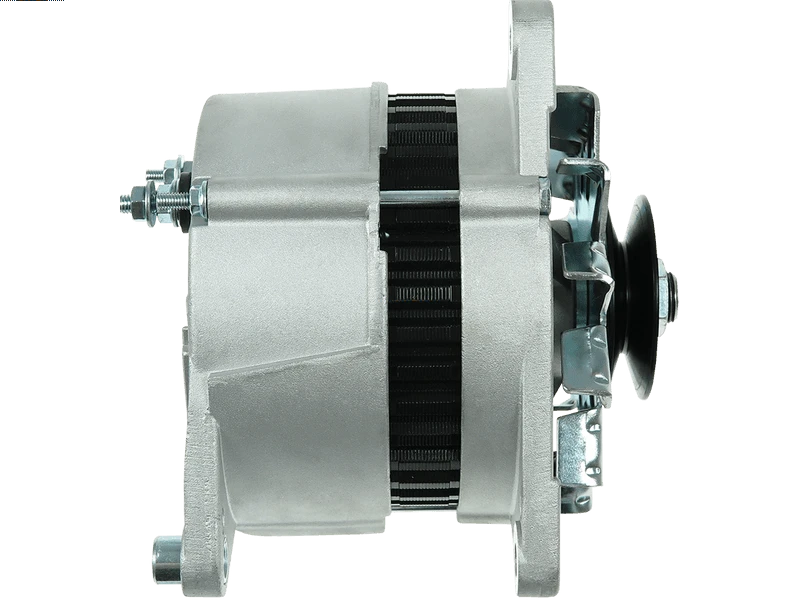

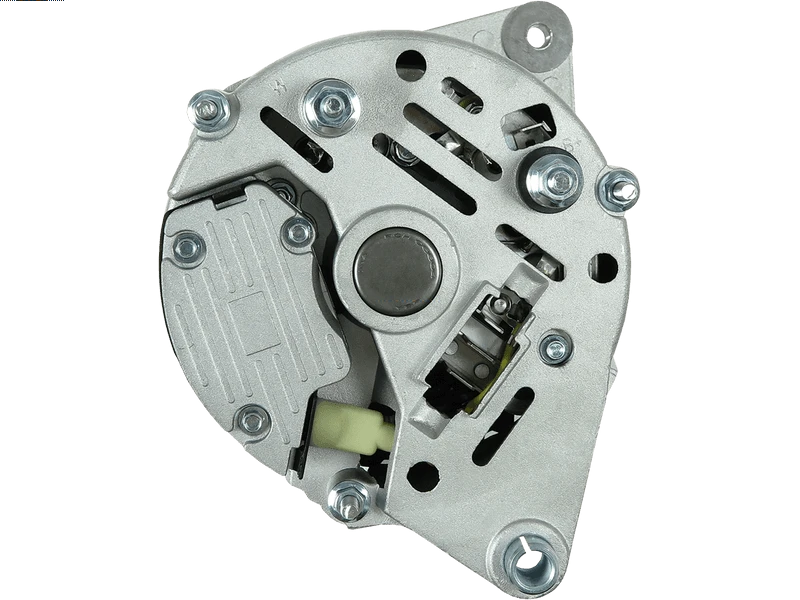

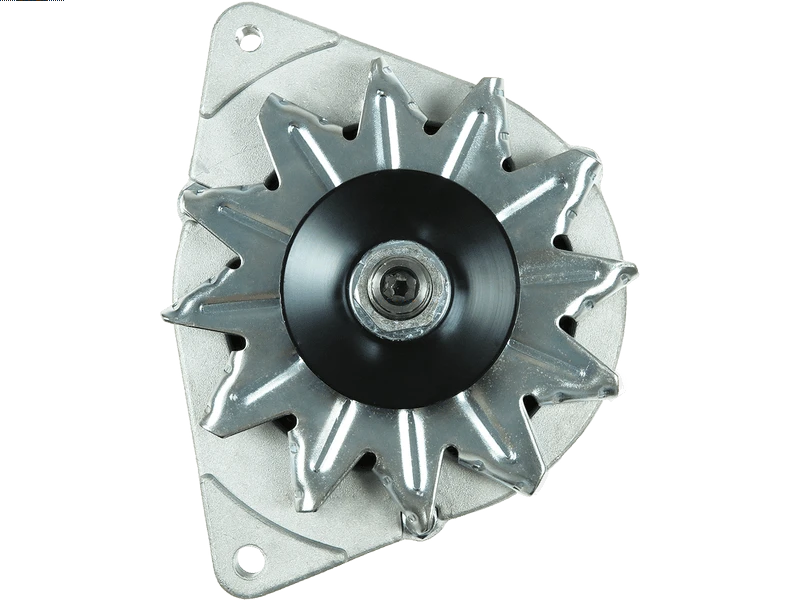

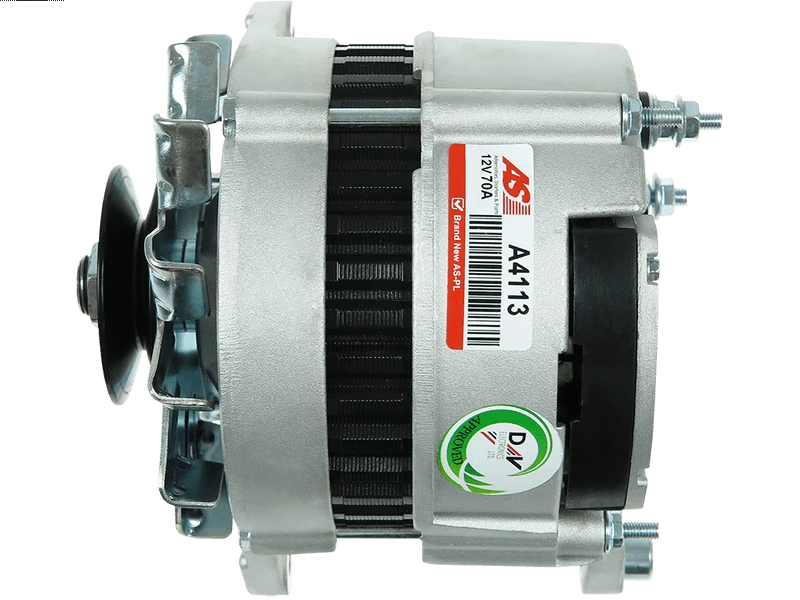

A4113 - Brand new AS-PL Alternator

Associated Numbers

UD12515A ASPL AEA4161 AUTOELECTRO 0120489293 BOSCH List 0120489384 0120489385 111355 CARGO 112114 112376 CAL21140 CASCO 16527101 DIXIE A448 56081 EAI 281629 ELSTOCK 210188 ERA CA564IR HC PARTS 8EL725855001 HELLA 11.201.578 ISKRA / LETRIKA 11.201.810 11.203.097 AAK3369 AAK4523 AAK4598 71420400 JCB ALI0564 KRAUF ALL0564 24158 LUCAS 24158A 24158B 24158D 24202 24209 24209A 24209B 24245 24245A 24245B 24291 24291A 24294 24294A 24294B 24356 24356A 24387 24390 54022176 54022200 54022382 54022408 54022428 54022579 54022639 54022642 54022647 54022752 LRA00461 LRA461 63324245 MAGNETI MARELLI 63324387 3819359M91 MASSEY FERGUSON 3930504r1 185046360 PERKINS 2871A148 2871A160 2871A163 66021636 PRESTOLITE 29020110 ROBERT'S YLE10067 ROVER YLE101570 YLE101580 2541290 VALEO 2541400 12088N WAI TRANSPO 12365N 90178063 WILSON 90178065 90178065N 90225516 ALT16067 WOODAUTO ALT16070 655106 lxa119 mg212 mg249 mg426 66021636cs MAN761 MG415 Leece Neville 66021136 66021136S 66021636C 66021636S Substitutes: J N 40030005 References: J& Lester 14048 Lucas 54022097B Magneti Marelli MAN131 MAHLE Wilson 90178085 054022642010 54022439 Rover 0986044591 3760524M91 3930504R1 54022656 595030065 873F10300BA 90178048 933925 ADU8880 ADU9548 ADU9750 ASU1693 CA1346 CA1346IR CA1494 CA1494IR CA522IR DRA3925 GEU2109 GEU2115 GXE2115 HCA1346IR HCA1494IR IA0810 MAN766 RTC5845 11.201.728 AAK4574 IA0728 66021636CS MAN153 40030013 40030027 LRA460 LRA602 LRA958 LRB290 63324407 Massey Ferguson 3478360M91 3611576M91 3611931M91 3930504R91 Miscellaneous Vendor 8EL725882001 8EL737544001 8EL737740001 CA600IR Perkins 2871A141 ADU8090 ADU8890 SDU8880 Valeo 436692 VA140 165-27101 2021140 28-1629 290-20110 30226RI 30226RIL 30564RI 30564RIL 714-20400 8EL725855-001 90-17-8063 90-17-8065 90-17-8065N 90-22-5516 A4113 CAL21140AS CAL21140ES CAL21140GS CAL21140OS CAL21140RS 49-016 AGCO 3909793M1 3930501R91 3933143M91 C000900010080 ARGO 3661191M91 LANDINI 3536264M91 LESTER 12144 23624 23625 23669 LRA00360 MASSEY-FERGUSON 3698016M91 SAAB 8512311 8530446 8545543 SPAREX 35939 VA122 Product Alternator Letrika P/N IA0913 Voltage 14 V Current 65 A OEM 11.201.913 MG348 Description AAK3320 Notes Dust-proof 11.201.396 AAK1324 14V 55A

Specifications

Amp	70 A
Bottom Mounting Foot Width (B)	12.50 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	8 mm
Diameter (D.3)	9 mm
Length (L.1)	168 mm
Mount Inside Length or Pad Mount C-C (C)	82.50 mm
OEM Product	No
Plug Code	PL_3200
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	10 mm
Pulley Outside Diameter (O.D.1)	34 mm
Pulley Outside Diameter (O.D.2)	63 mm
Pulley to Mount Distance (A)	36.50 mm
Pulley Type	Solid
Unit Type	LUCAS
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUSTIN	Montego 2.0	[20H]	04.1984-08.1988
AUSTIN	Montego 2.0	[20HSC]	04.1984-08.1988
AUSTIN	Montego 2.0 i	[20H]	04.1984-08.1988
AUSTIN	Montego 2.0 i Turbo	[20HC85]	04.1984-08.1988
DRONNINGBORG	7800	[D620]
DRONNINGBORG	8700 Jumbo
MASSEY FERGUSON	350		01.1986-01.1992
MASSEY FERGUSON	355		01.1986-01.1992
MASSEY FERGUSON	360		01.1987-01.1990
MASSEY FERGUSON	365		01.1986-01.1990
MASSEY FERGUSON	3680 7.4	[612DS]	06.1988-
MASSEY FERGUSON	375		01.1986-01.1997
MASSEY FERGUSON	390		01.1986-01.1997
MASSEY FERGUSON	390 T		01.1991-01.1997
MASSEY FERGUSON	399		01.1986-01.1990
MASSEY FERGUSON	4245		01.1997-01.2000
MASSEY FERGUSON	4255		01.1997-01.2000
MG	Montego 2.0		04.1984-09.1990
MG	Montego 2.0 Turbo	[20HT]	10.1984-09.1990
NEW HOLLAND	6635		09.1995-12.1998
NEW HOLLAND	7635		09.1995-12.1998
NISSAN	Bluebird 1.6	[CA16S]	03.1986-06.1991
ROVER	220 2.0 GTi	[20M4F]	09.1991-10.1995
ROVER	220 2.0 Turbo	[20T4G]	10.1992-06.1999
ROVER	820 2.0 i 16V	[20HD]	10.1986-10.1988
ROVER	820 2.0 Si	[20HDM16]	10.1988-12.1991
ROVER	820 E 2.0	[20HS]	10.1986-10.1991
ROVER	825 2.7 SLi Vitesse	[C27A2]	10.1988-12.1991
ROVER	827 2.7	[C27A1]	10.1988-12.1991
ROVER	827 2.7 24V	[C27A1]	08.1992-02.1999
ROVER	827 2.7 Si	[C27A1]	01.1992-02.1999
ROVER	827 2.7 Si	[C27A2]	02.1988-12.1991
ROVER	827 2.7 Si Sterling	[C27A1]	02.1988-02.1999
ROVER	Montego 2.0 GTi	[20H]	10.1988-10.1991
VALTRA	6300		01.1991-
VALTRA	6400		01.1991-
VALTRA	6600		01.1991-
VALTRA	8000		09.1990-
VALTRA	8100		09.1990-
VALTRA	8300	[612D]	01.1990-01.1993
VALTRA	8400	[620DS]	01.1993-01.1995
VALTRA	8600	[612DS]	01.1990-01.1993

Reference Information

54022642 90-17-8063 RNL461 GEU2115 111355 RNL460 54022408 YLE10067 11.201.578 54022647 CAL21140 90-17-8065 STX100529 24294A 24294B CAL21140OS 238 3698017M91 ALTL048 3698015R91 CAL21140GS ALT2480 54022752 110770 54022639 K311697 0120489384 24158A 24387 K311698 0120489385 2871A141 K311696 2871A147 24158D 24158B YLE10066 2871A148 3819359M91 90-17-8065N STX101112 EZ4021 ASU1693 ALI0564 1406058 290-20110 ALT4014A STX101521 54022428 24356 28-1629 2871A154 185046360 CA564IR AAK3369 YLE10011 UD12515A CAL21140ES 210204 87800219 63324245 112376 NPANAL1635 2541400 24245 2871A160 LRA00461 ALT16067 24209A 2871A163 24209B RTC5680E RTC5680N 714-20400 STX101805 ALT16070 ADU9548 86VB10300A2A 54022382 54022200 11.201.810 714-01003 12365N A4113 ADU9750 24291 92292C1 ALTL529 AAK4598 24294 2541290 83632800 R86AX10300DB MG 210188 54022176 71440476 873F10300BA 1005349 YLE101570 11.203.097 112114 440845 63324387 24356A 92281C1 AAK4523 3698016M91 24291A CAL21140AS 84530361 86VB10300AA 0120489293 LRA461 YLE101580 714-40148 A448 24158 AEA4161 12088N ADU8880 24390 1695614M91 212 71426100 AAL1635 165-27101 3551780M92 3930504r1 ALT7951 66021636 714/40476 90-22-5516 8EL725855-001 24209 714-10800 3477851M91 54022579 91FF10300VA 2021140 ADU8090 54022616 24202 STX101457 56081 CGB-13760 30226RI ALL0564 30226RIL 714/12500 CAL21140RS 86VB10300A2 24245A 24245B 3930504R1 RTC5845 333/G6698 CA600IR 332/F7240 STX100480 GXE2115
