Associated Numbers
27700-26020
27700-28010
27700-38010
27700-38020
2770A-38020
026000-2540 ND
026000-2680 ND
in558
- ARROWHEAD 230-52036
- DENSO 026000-2540, 026000-2680
- HINO 2770A38020
- TOYOTA 27700-26020, 27700-28010, 27700-38010, 27700-38020
AVR558
References:
Denso 026000-2540, 026000-2680
Hino 2770A38020
Toyota 27700-26020, 27700-28010, 27700-38010, 27700-38020
021000-2522 Denso, Alternator, 12V, 35A, New
021000-5310 Denso, Alternator, 12V, 35A
021000-6750 Denso, Alternator, 12V, 55A
021000-6751 Denso, Alternator, 12V, 55A
021000-7530 Denso, Alternator, 12V, 35A
021000-7590 Denso, Alternator, 12V, 40A, New
100210-1050 Denso, Alternator, 12V, 35A
100210-1431 Denso, Alternator, 12V, 35A, New
100210-1591 Denso, Alternator, 12V, 40A
100210-2160 Denso, Alternator, 12V, 35A
100210-3280 Denso, Alternator, 12V, 45A
121000-2740 Denso, Alternator, 12V, 45A
2702A87317 Hino, Alternator, 12V, 35A
2702A87322 Hino, Alternator, 12V, 35A
2703A87312 Hino, Alternator, 12V, 35A
27020-46033 Toyota, Alternator, 12V, 35A
27020-46061B Toyota, Alternator, 12V, 40A
27030-46024 Toyota, Alternator, 12V, 35A
Specifications

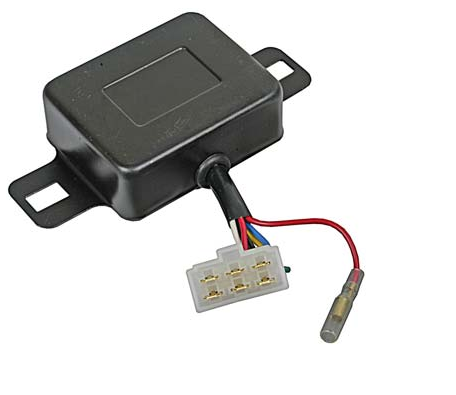

| Description: | Regulator, Electronic External |
| OEM(s): | Denso |
| Voltage: | 12 |
| Set Point: | 14.3 |

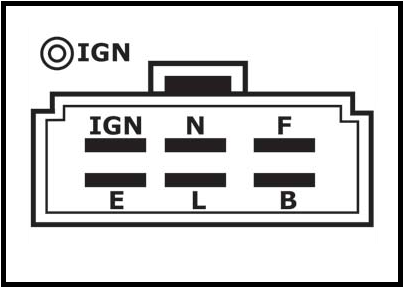

| Terminal ID: | Ignition-Stator-Field-Ground-Light-Battery |
| Polarity: | Negative |
| Includes Brush Holder?: | No |
| Activation: | Ignition |
| Adjustable?: | No |
| Circuit Type: | B-Circuit |
| Includes Rectifier?: | No |
| Includes Tolerance Ring?: | No |
| Application: | Denso Alternators |
| External Regulator | Yes |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
IN558, 27700-26020, 27700-28010, 27700-38010, 27700-38020
