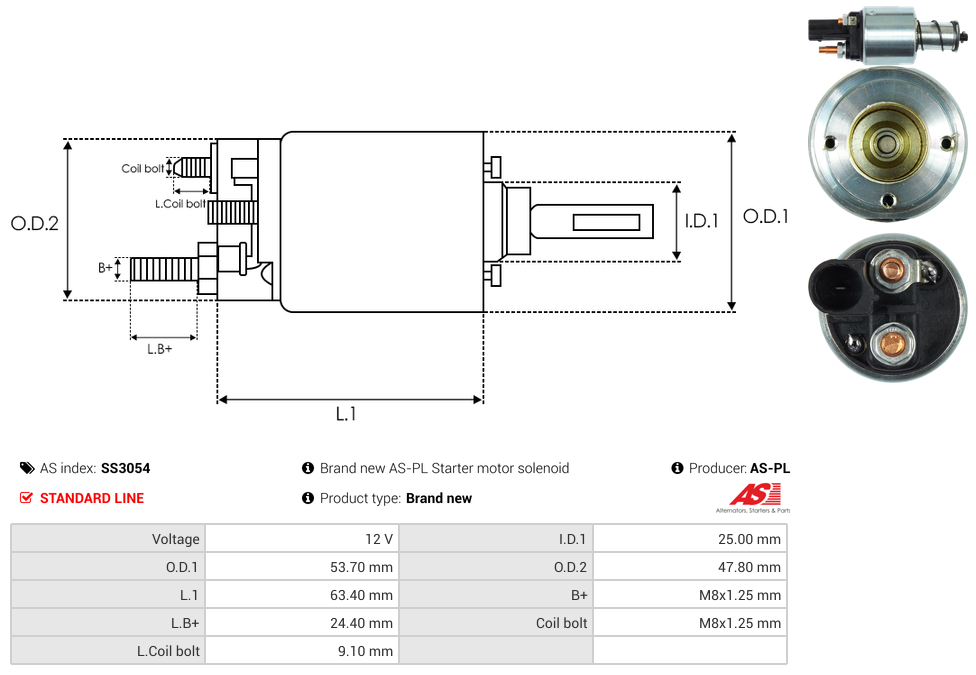

S3095 S3094 S3096 S3075 TS18E1Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 9.1 mm |
Inside Diameter (I.D.1) | 25 mm |
L.B+ | 24.4 mm |
Length (L.1) | 63.4 mm |
Outside Diameter (O.D.1) | 53.7 mm |
Outside Diameter (O.D.2) | 47.8 mm |
Type | Solenoid |
Unit Type | VALEO |
Voltage | 12 V |
Reference Information
UD10707SS UD10708SS UD10709SS SOL0060 595617 SS3054 UD10711SSVideo/Publications
S3094 S3096 S3095 S3075 595617 TS18ER22 UD10711SS TS12ER22 S3164S TS18E1 UD10707SS UD10708SS UD10709SS S3226S SS3054Add Your Number
