Associated Numbers
0001263024 S0429 0001263023Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
| Coil Bolt Length | 26 mm |
| Inside Diameter (I.D.1) | 30 mm |
| L.B+ | 36 mm |
| Length (L.1) | 82.5 mm |
| Outside Diameter (O.D.1) | 61.5 mm |
| Outside Diameter (O.D.2) | 64 mm |

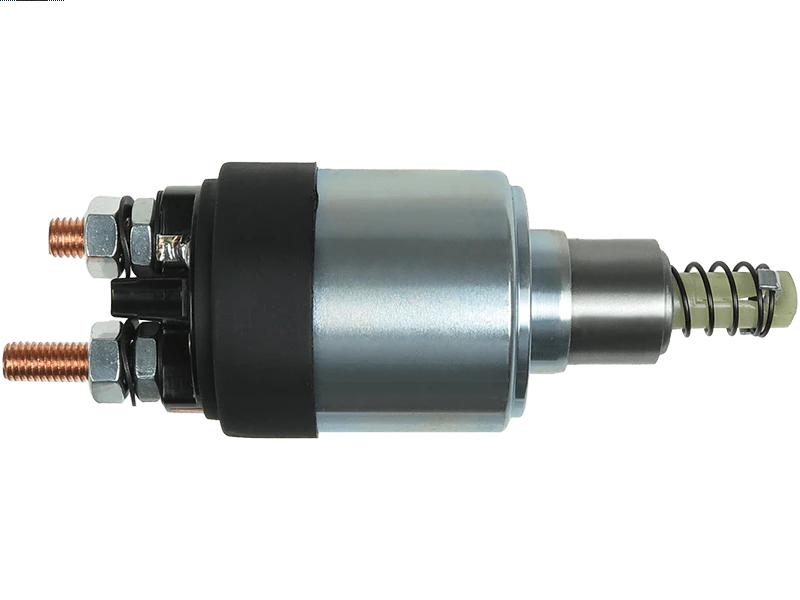

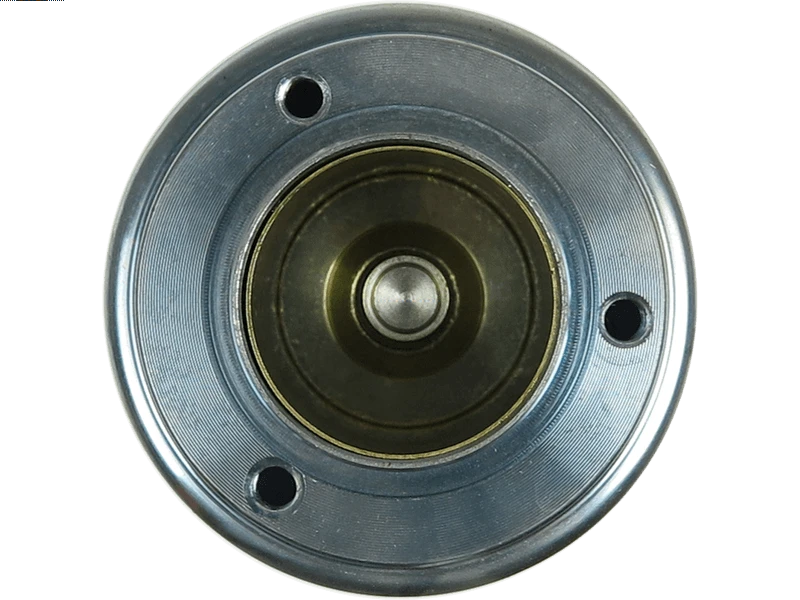

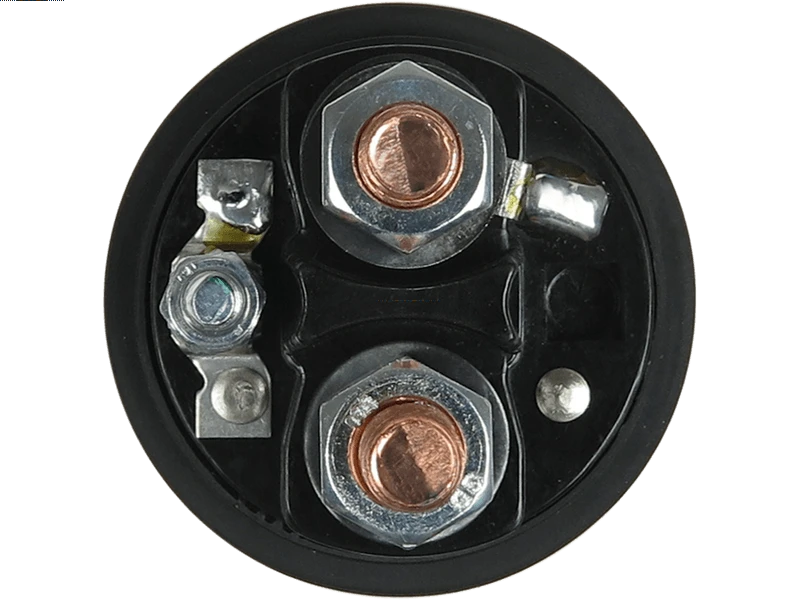

| Type | Solenoid |
| Unit Type | BOSCH |
| Voltage | 24 V |
Reference Information
BOS2339402307 UD00180SS SOL1163 2339402307Video/Publications
1263024 BOS2339402307 0001263024 UD00180SS 0001263023 S0429 S0656S 1263023 2339402307 0001231039 1231039Add Your Number
