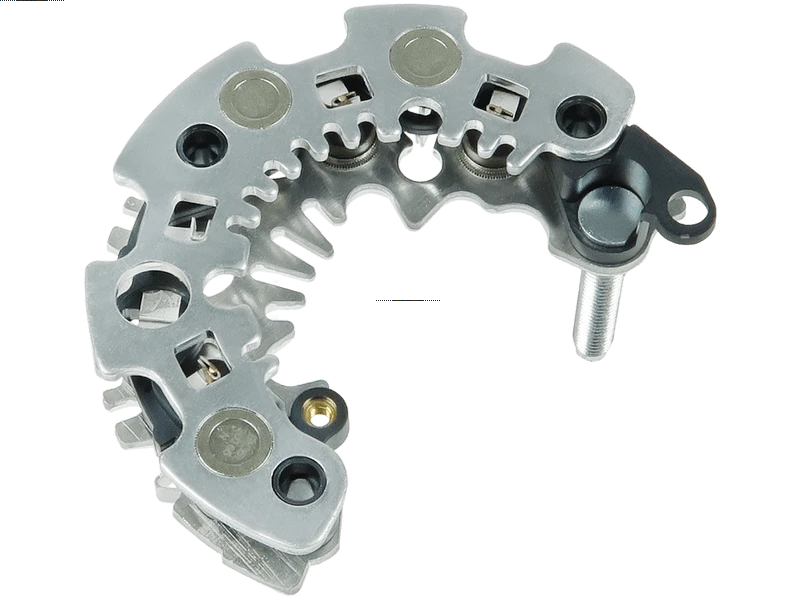

ARC4014 - Brand new AS-PL Alternator rectifier

Brand new AS-PL Alternator rectifier
Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 48.01 including GST

NZ$ 41.75 excluding GST
each
ARC4014
1
Purchase Qty:
each

A4003 63320200 63320203 63320204 63320219 63320227 63320238 63321200 63321204 63321205 63321233 63321235 63321252 63321270 63321280 63321600 63321605 63321609 63321625 A4006 A4007 A4011 A4069 63321200010 63321204010 63321205010 63321233010 63321234010 63321235010 63321252010 63321270010 63321275010 63321276010 63321277010 63321278010 63321280010 63321281010 63321282010 63321283010 63321300010 63321311010 63321361010 63321362010 63321367010 63321396010 63321602010 63321603010 63321609010 63321610010 63321611010 63321613010 63321620010 63321632010 63321640010 63321655010 63321661010 63321257 63321275 63321276 63321277 63321278 63321281 63321282 63321283 63321300 63321302 63321311 63321361 63321362 63321367 63321396 63321602 63321603 63321604 63321606 63321607 63321608 63321610 63321611 63321613 63321615 63321620 63321632 63321640 63321655 63321660 63321661


136423 CARGO
730333 CIVIC/DA PARTS
CQ1080071 CQ
139071 HUCO
63623301 MAGNETI MARELLI
RDD033 MAGNETI MARELLI
RDD35 MAGNETI MARELLI
81116546 POWERMAX
1105-014RS RS
IXR633 WAI / TRANSPO
RTF49551 WOODAUTO
63320200 MAGNETI MARELLI
63320203 MAGNETI MARELLI
63320204 MAGNETI MARELLI
63320219 MAGNETI MARELLI
63320227 MAGNETI MARELLI
63320238 MAGNETI MARELLI
63321200 MAGNETI MARELLI
63321204 MAGNETI MARELLI
63321205 MAGNETI MARELLI
63321233 MAGNETI MARELLI
63321235 MAGNETI MARELLI
63321252 MAGNETI MARELLI
63321270 MAGNETI MARELLI
63321280 MAGNETI MARELLI
63321600 MAGNETI MARELLI
63321605 MAGNETI MARELLI
63321609 MAGNETI MARELLI
63321625 MAGNETI MARELLI
AS ARC4014 Cargo 136423 Ghibaudi PRP128 Magneti Marelli 63623301, AMP1301, RDD33 Mobiletron RI14H Motorherz AEE633WA Transpo IXR633 Unipoint REC354 UTM EE6307B WAI 233487-W Используется для агрегатов63321200, 63321204, 63321233, 63321234, 63321270, 63321280, 63321600, 63321602, 63321625, 63321747, ALE0890, ALE0890WA, ALE1153UX, ALE1153WA, ALE1196DD
J&N 172-40039
Arrowhead AMM1213
Magneti Marelli 63244901, 63622301, 63623801, RDD33
Regitar MFRX02131, RI14
FIAT/MARELLI 63321200 ALT12007
FIAT/MARELLI 63321204 ALT12009
FIAT/MARELLI 63321233 ALT12007
FIAT/MARELLI 63321234 ALT12018
FIAT/MARELLI 63321252 ALT12083
FIAT/MARELLI 63321287
FIAT/MARELLI 63321292 ALT4216
FIAT/MARELLI 63321330
FIAT/MARELLI 63321601 ALT4216
FIAT/MARELLI 63321612 ALT12122
FIAT/MARELLI 63321618 DENDAN628
FIAT/MARELLI 63321629
FIAT/MARELLI 63321630
FIAT/MARELLI 63321631

Attached Bracket?No
B+ Stud Diameter & Thread Pitch (B+d)M8x1.25 mm
B+ Thread Length (B+H)41 mm
Diode Amp Rating35 A
Diodes6 qty
Outside Diameter (O.D.1)110 mm
Reg/Rec ComboNo
Unit TypeLUCAS/MARELLI
63321640 63321367 63321270010 63321396010 63321361 63321362 63321610010 RDD75 63321235010 63321367010 63321632 63624804 AEE0635 63321233 63244901 63321235 136423 63321275010 RDD65 63321276010 63321282010 RDD033 63321609010 63321625 63321626 RTF49551 63321661 63321300 63321660 053.000.034 63321640010 63321252010 63320204 63320203 63321655 63321300010 RTF49562 63321257 63321603010 63320200 63321252 81116546 CQ1080071 63321362010 063624701010 63321280010 63321204010 63321620010 63321200 63321283 63623801 063624801010 216055 63321280 63321281 63321282 63321661010 IXR7596 RDD33 63321277010 RDD35 63320227 139214 63321283010 230119 63321276 63624501 63321277 063623501010 63321278 63321311 CRC30105 63321275 63321396 IXR7596-2 63321270 A4069 63321311010 63321611010 63321632010 63321234010 A4075 63321302 AEE6307 IXR633 63320219 730333 63321602010 63321620 81113767 PRP128 1113767 SRC30105 63321205010 63321281010 63321361010 63321233010 139071 63321615 63321610 63321611 63321613 215794 215796 PRP117 A4007 63321200010 A4003 A4006 63321278010 A4011 63321613010 63321607 63321608 63321609 63320238 63321655010 63321603 63321604 63321605 63321606 63623901 63321204 63321600 063623301010 63321205 63321602
