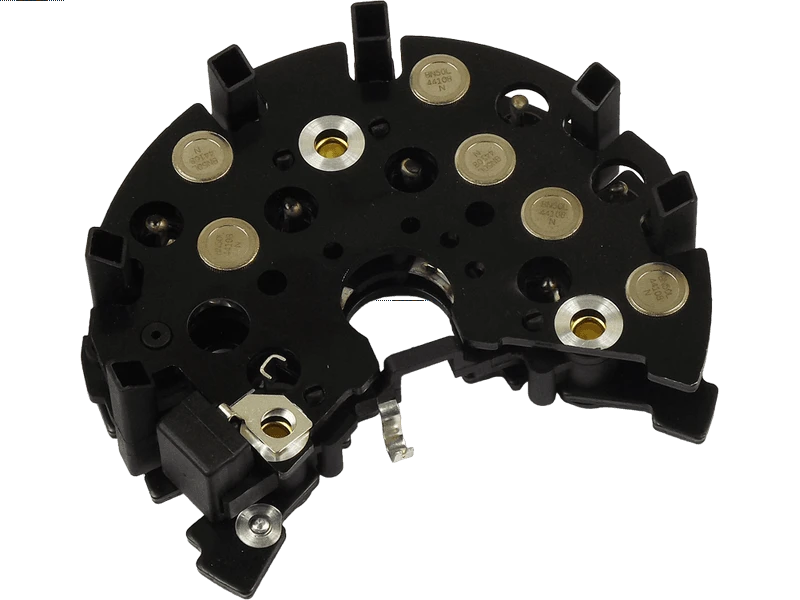

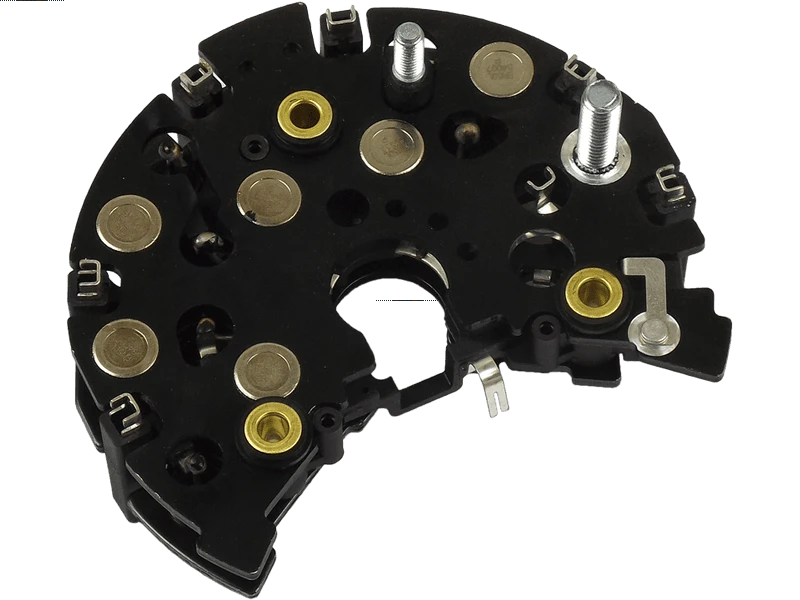

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 57.02 including GST
NZ$ 49.58 excluding GST
or four payments of $14.26
with
Learn More
each
ARC0056
2
Associated Numbers
0120465031 012046503B 01232140020123214002, 0986039000, 0986039000090, ALB1092LP, ALB1245, ALB7092
ARC0056 Bosch 1127319689, 1127319690, 1127319823, 1127320860 Cargo 137259 Transpo IBR860 Unipoint REC264 UTM EB0860A
1127319690
1127320860
137259
CQ1080363
81114215
1101-052RS
31-9129
IBR860
RTF39914
0120465031
012046503B
0123214002
1127319690
1127320860
137259
CQ1080363
81114215
1101-052RS
31-9129
IBR860
RTF39914
0120465031
012046503B
0123214002
12-31-1-738-351
12-31-1-744-563
12-31-1-747-204
0120465031
0123214002
Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8X1.25 mm |
| B+ Thread Length (B+H) | 23.54 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 12 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M6x1.0 mm |
| D+ Thread Height (D+H) | 15 mm |
| Inside Diameter (I.D.1) | 23 mm |
| OEM Product | No |
| On Sale Item | Yes |
| Outside Diameter (O.D.1) | 126 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Source | Y |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
| 1127319690 | BOSCH |
| 1127320860 | BOSCH |
| 137259 | CARGO |
| 215353 | ERA |
| 31-9129 | WAI / TRANSPO |
| 81114215 | POWERMAX |
| CQ1080363 | CQ |
| F032137259 | CARGO |
| IBR860 | WAI / TRANSPO |
| RCT1023 | ELECTROLOG |
| RTF39914 | WOODAUTO |
Video/Publications
