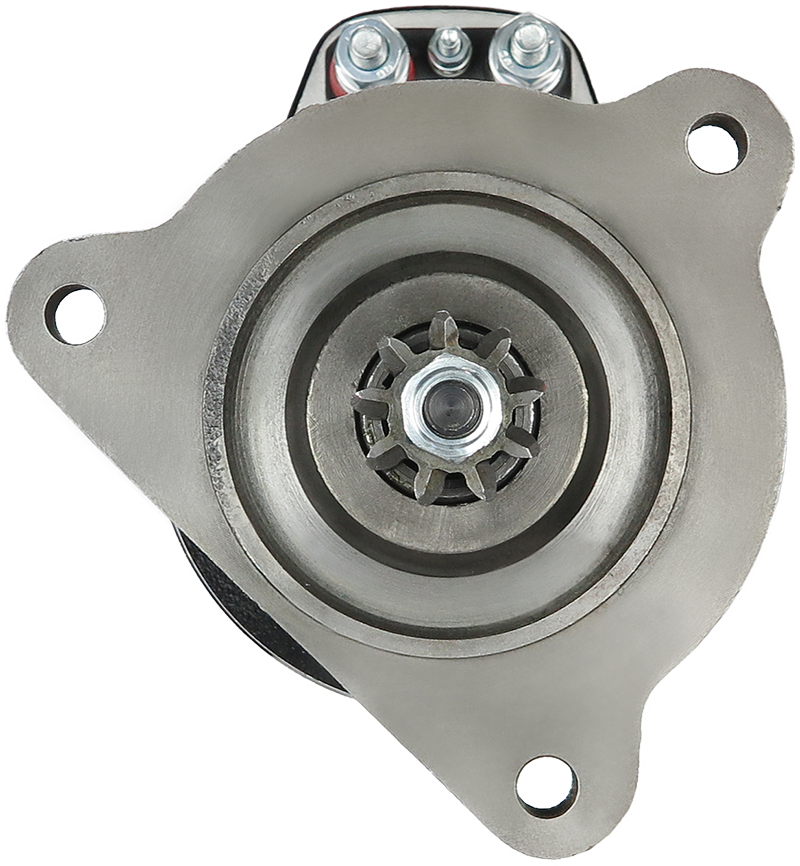

S0435 - Brand new AS-PL Starter motor

Specifications

Insulated Earth	Yes
Kilowatt	5.4 kW
Length (L.1)	385 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Oil Sealed	Yes
Pinion at Rest (B)	36.5 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
STEYR	SFL 11 HUA 280 11.0	[9FUA]	10.1987-
STEYR	SG 18 HUA 280 11.0	[9FUA]	07.1987-
STEYR	SL 11 HU 250 11.0	[9FUA]	01.1984-
STEYR	SL 11 HUA 280 11.0	[9FUA]	12.1986-
STEYR	SS 11 HU 200 11.0	[9FUA]	06.1984-
STEYR	SS 11 HUA 280 11.0	[9FUA]	06.1984-

Reference Information

20401967BN 88214020 6010769 STR79480 8895 10198P 10198B 18113N S0435 0001416001 AZK5403 10198 IS9037 STRF100 33657 UD00201S 904-310 860661 BOM 5.1951E+11 UNIT 11.139.043 1410024 MS 0001410024 9125210 CST10769AS PRSF100 STR1823 1416001 19024009 581.201.093.010 504 5.1321E+11

Video/Publications

0001416001 10198 10198B 10198P 11.139.043 19024009 20401967BN 513210050000 519510150000 6010769 860661 9125210 AZK5403 CST10769AS IS9037 MS 504 STRF100 UD00201S UNIT BOM 904-310 S0435
